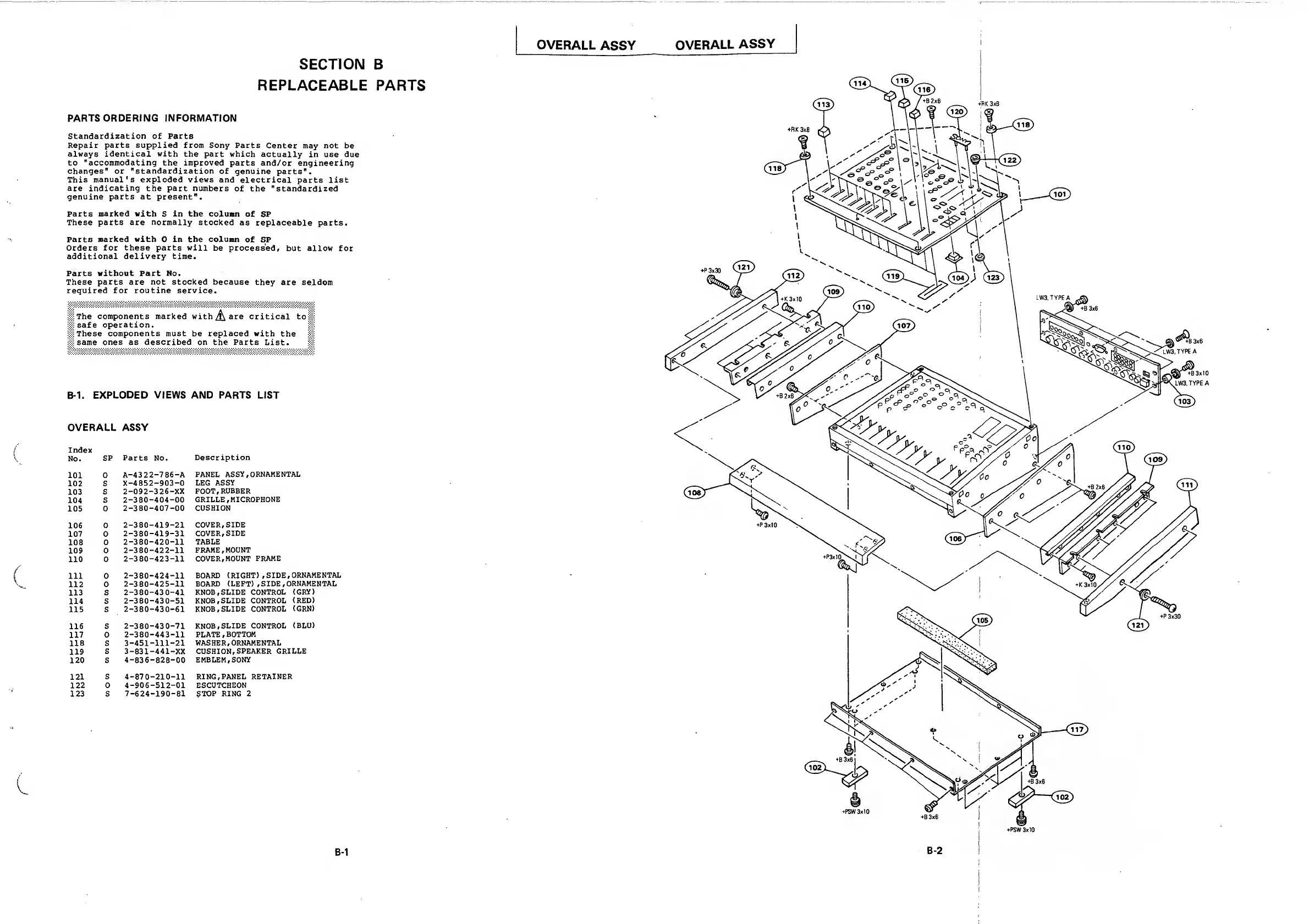

Sony mxp-29 - Replaceable Parts; Overall Assy Exploded View

SECTION
B
REPLACEABLE PARTS
OVERALL
ASSY
PARTS
ORDERING
INFORMATION
Standardization of Parts
Repair parts
supplied
from Sony Parts
Center may not be
always
identical with
the part which
actually
in
use due
to
"accommodating
the improved
parts and/or engineering
changes" or "standardization
of genuine
parts”.
This manual's
exploded
views and
electrical
parts
list
are
indicating the
part numbers
of the "standardized
genuine
parts at present".
Parts
marked
with S in the column
of SP
These parts are normally stocked
as replaceable parts.
Parts
marked
with O in the
column
of
SP
Orders for
these
parts will be processed,
but allow for
additional delivery time.
Parts
without Part No.
These
parts
are
not stocked because
they
are
seldom
required for routine service.
The
components marked with
^
are critical to
safe operation.
These components
must
be replaced
with the
same ones as described on the Parts
List.
B-1.
EXPLODED VIEWS AND PARTS LIST
OVERALL ASSY
No.
SP
Parts
No.
Description
101 0
A-4322-786-A
PANEL
ASSY, ORNAMENTAL
102 S
X-4852-903-0
LEG ASSY
103
S
2-092-326-XX
FOOT,
RUBBER
104
S
2-380-404-00
GRILLE ,
MICROPHONE
105
0
2-380-407-00
CUSHION
106
0
2-380-419-21
COVER, SIDE
107 0
2-380-419-31
COVER, SIDE
108
0
2-380-420-11
TABLE
109 0
2-380-422-11 FRAME, MOUNT
110
0
2-380-423-11
COVER, MOUNT
FRAME
111 0
2-380-424-11
BOARD
(RIGHT) ,
SIDE, ORNAMENTAL
112 0
2-380-425-11
BOARD
(LEFT) , SIDE,
ORNAMENTAL
113 s
2-380-430-41
KNOB, SLIDE
CONTROL (GRY)
114 s
2-380-430-51
KNOB, SLIDE CONTROL
(RED)
115 s
2-380-430-61
KNOB,
SLIDE CONTROL
(GRN)
116 s
2-380-430-71
KNOB,
SLIDE CONTROL
(BLU)
117 0
2-380-443-11
PLATE,
BOTTOM
118 s
3-451-111-21
WASHER, ORNAMENTAL
119
s
3-831-441-XX
CUSHION, SPEAKER
GRILLE
120 s
4-836-828-00
EMBLEM, SONY
121
s
4-870-210-11
RING, PANEL
RETAINER
122 0
4-906-512-01
ESCUTCHEON
123
s
7-624-190-81
STOP
RING
2
<§^3x.O
•*\LW3,
TYPE A
