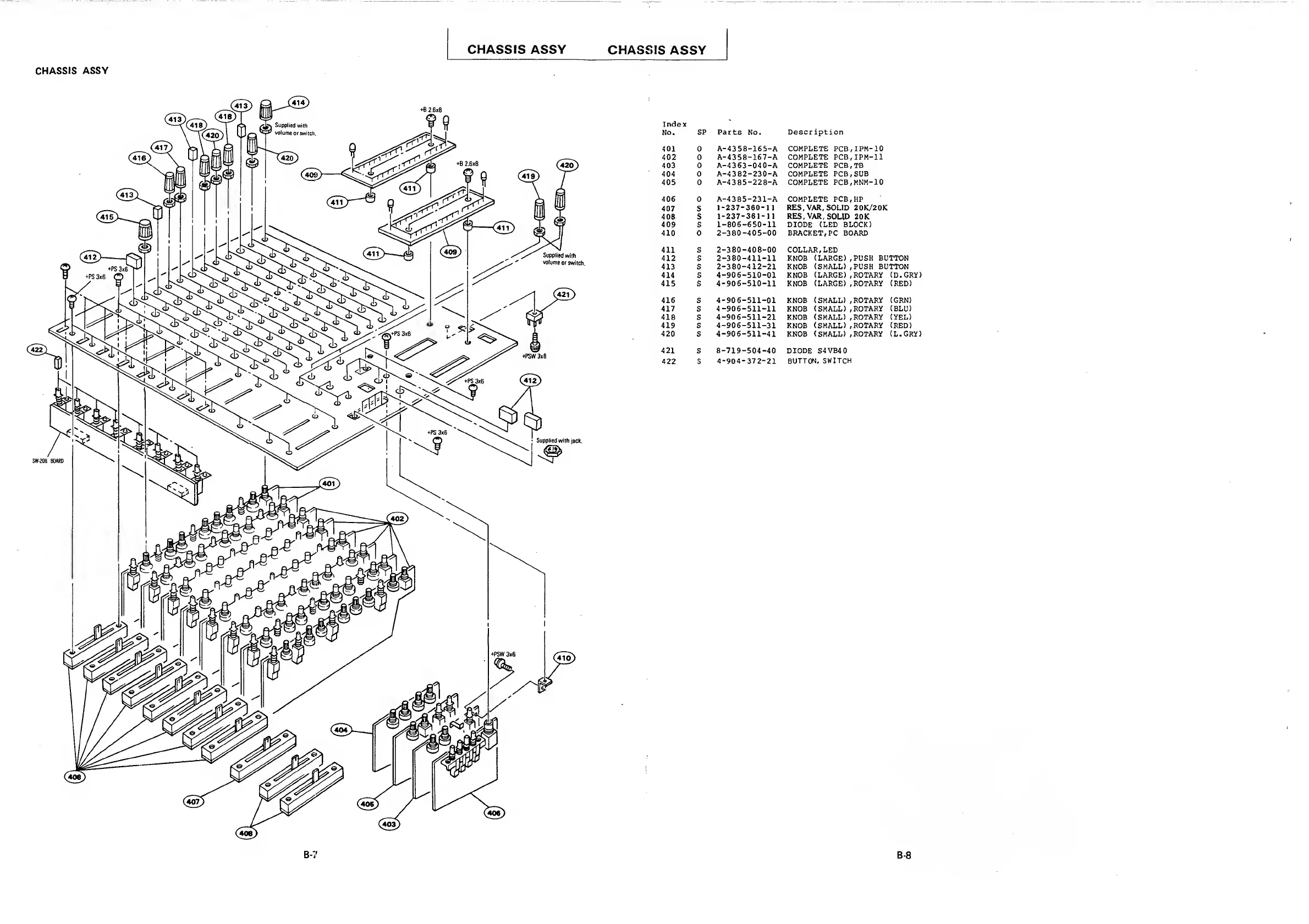

Sony mxp-29 - Chassis Assy Exploded View

CHASSIS
ASSY
CHASSIS
ASSY
CHASSIS
ASSY
B-7
Parts
No
Description
A-4358-165-A COMPLETE PCB,IPM-10
A-4358-167-A COMPLETE
PCB.IPM-ll
A-4363-040-A
COMPLETE PCB,TB
A-4
3 82-230-A
COMPLETE PCB,SUB
A-4385-228-A COMPLETE PCB,MNM-10
A-4385-231-A COMPLETE PCB,HP
1-237-360-11
RES, VAR, SOLID
2 OK/2 OK
1-237-361-11
RES, VAR,
SOLID
20K
1-
806-650-11
DIODE (LED BLOCK)
2-
380-405-00
BRACKET,
PC BOARD
2-380-408-00
COLLAR, LED
2-380-411-11
KNOB (LARGE) ,PUSH BUTTON
2-380-412-21
KNOB (SMALL) ,PUSH
BUTTON
4-906-510-01
KNOB (LARGE) , ROTARY (D.GRY)
4-906-510-11
KNOB (LARGE) ,
ROTARY
(RED)
4-906-511-01
KNOB (SMALL) ,
ROTARY (GRN)
4-906-511-11
KNOB (SMALL) ,
ROTARY (BLU)
4-906-511-21
KNOB
(SMALL)
,
ROTARY (YEL)
4-906-511-31
KNOB (SMALL) , ROTARY (RED)
4-906-511-41
KNOB (SMALL) , ROTARY (L.GRY)
8-719-504-40
DIODE S4VB40
4-904-372-21
BUTTON, SWITCH
B-8
