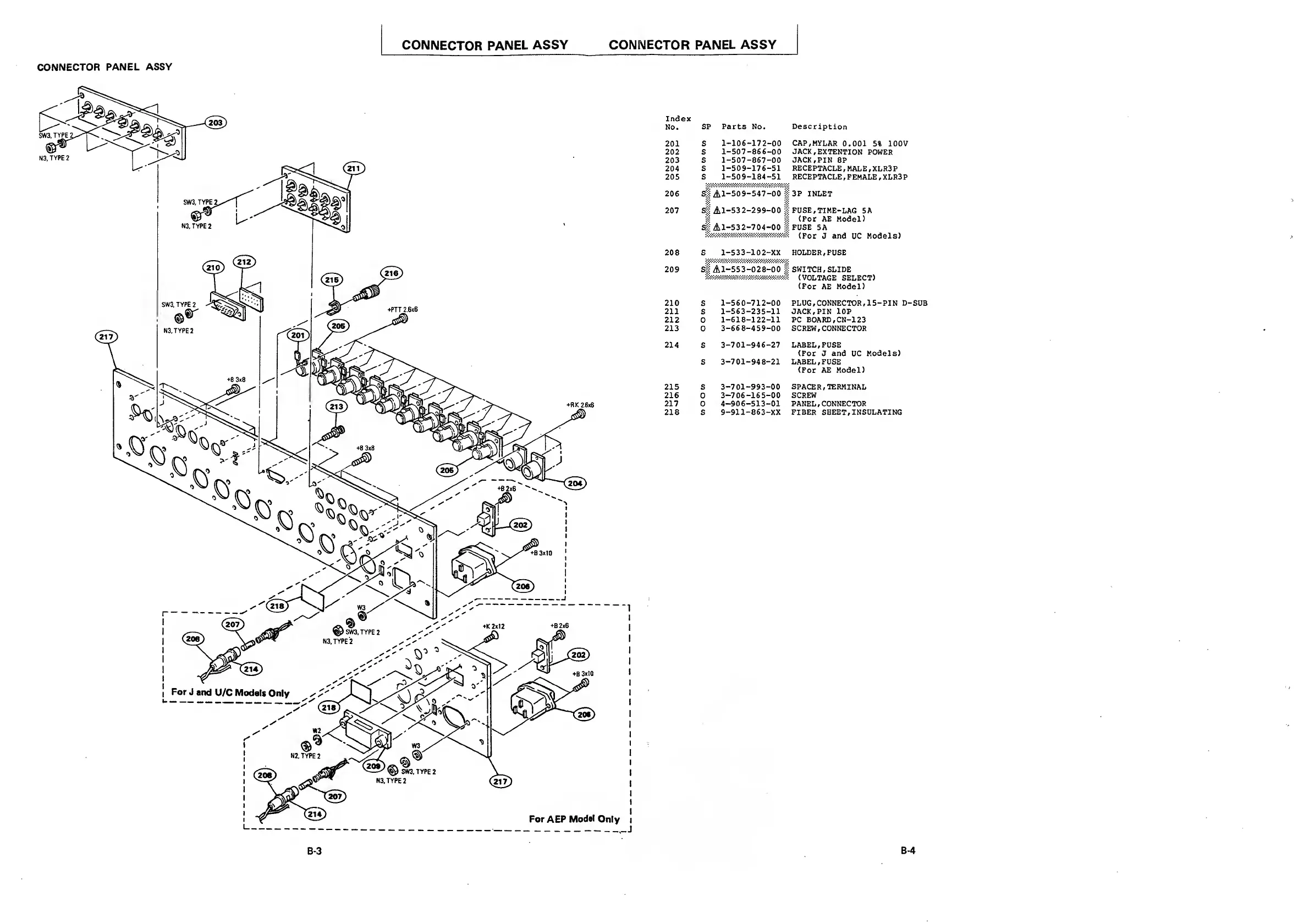

Sony mxp-29 - Connector Panel Assy Exploded View

CONNECTOR PANEL
ASSY CONNECTOR PANEL
ASSY
CONNECTOR
PANEL ASSY
Index
No.
SP
Parts
No.
Description
201 S
1-106-172-00
CAP, MYLAR
0.001 5% 100V
202 S
1-507-866-00
JACK
, EXTENTION
POWER
203
s
1-507-867-00
JACK,
PIN 8P
204
s
1-509-176-51
RECEPTACLE
, MALE , XLR3
P
205 s
1-509-184-51
RECEPTACLE
, FEMALE ,
XLR3P
206 s
1
A
1-50
9-
54
7-00
i|
ji
3P INLET
207
S;
|
A
1-53
2-2
9
9-00
i
:
FUSE, TIME-
LAG
5A
i
(For AE Model)
s:
|
A
1-53
2-7 04
-00
ij
g FUSE
5A
S
(For J
and
UC
Models)
208 s
1-533-102-XX
HOLDER,
FUSE
209
si
:•
Al-553-028-00
1
5 SWITCH,
SLIDE
(VOLTAGE
SELECT)
(For AE Model)
210
s
1-560-712-00
PLUG, CONNECTOR, 15-PIN D-SUB
211
s
1-563-235-11
JACK, PIN
10P
212
0
1-618-122-11
PC
BOARD,
CN-1 23
213
0
3-668-459-00
SCREW, CONNECTOR
214
s
3-701-946-27
LABEL, FUSE
(For
J and UC
Models)
s
3-701-948-21
LABEL, FUSE
(For AE Model)
215 s
3-701-993-00
SPACER, TERMINAL
216
0
3-706-165-00
SCREW
217
0
4-906-513-01
PANEL, CONNECTOR
218
s
9—
911-863-XX
FIBER SHEET, INSULATING
B-3
B-4
