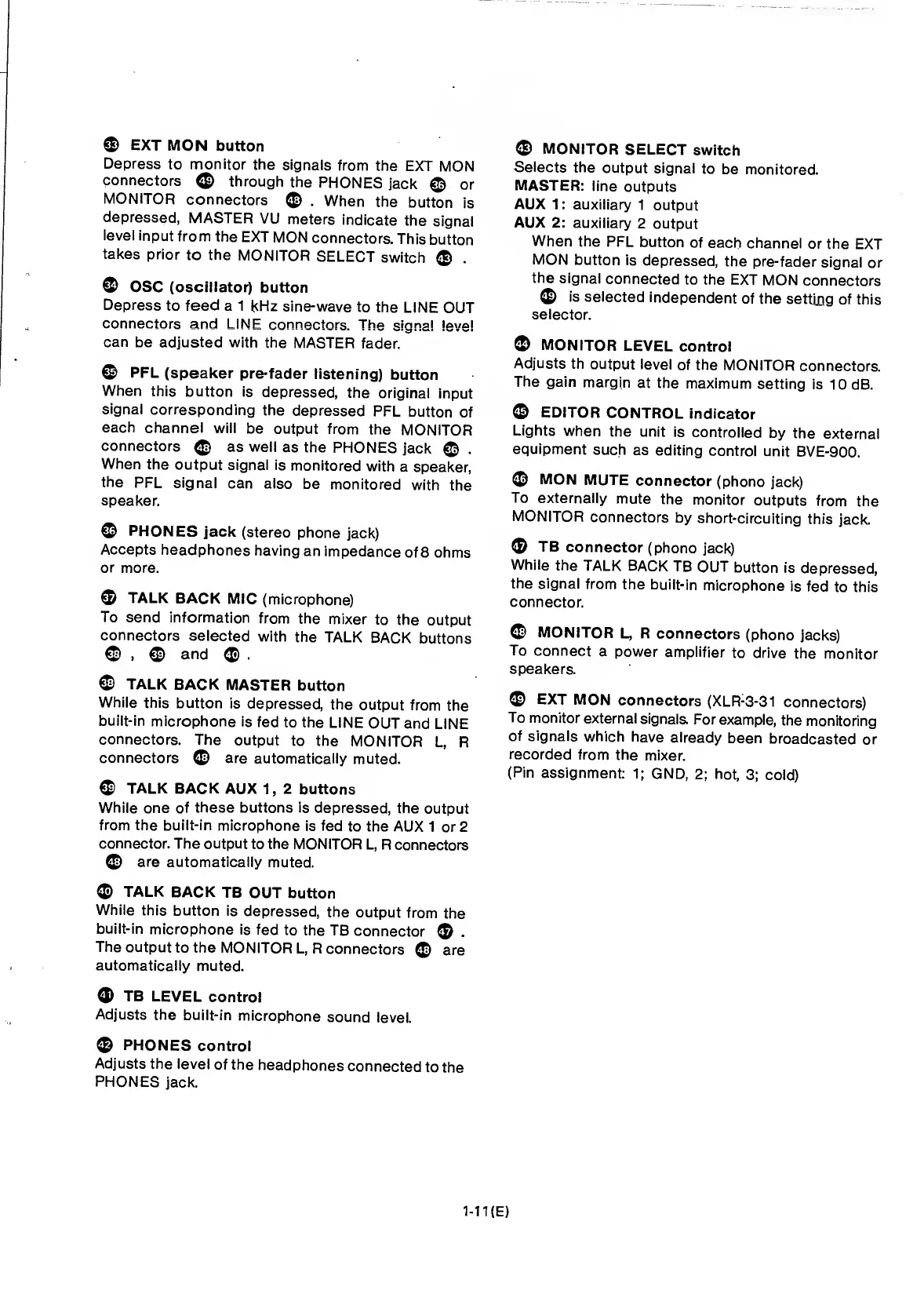

EXT
MON
button
Depress
to monitor
the
signals
from
the
EXT
MON
connectors
©
through
the
PHONES
jack
©
or
MONITOR
connectors
©
.
When
the
button
is
depressed,
MASTER
VU
meters
indicate
the
signal
level
input
from
the
EXT
MON
connectors.
This
button
takes
prior
to the
MONITOR
SELECT
switch
©
.
©
OSC
(oscillator)
button
Depress
to feed a
1 kHz sine-wave
to
the
LINE
OUT
connectors and
LINE
connectors.
The
signal
level
can
be adjusted with
the
MASTER
fader.
©
PFL
(speaker
pre-fader
listening)
button
When
this
button is
depressed,
the
original
input
signal
corresponding
the
depressed
PFL
button
of
each
channel
will
be
output from
the
MONITOR
connectors
©
as
well
as the
PHONES
jack
©
.
When
the
output
signal is
monitored
with
a
speaker,
the
PFL
signal
can
also
be
monitored
with
the
speaker.
©
PHONES
jack
(stereo
phone
jack)
Accepts
headphones
having
an
impedance
of
8 ohms
or
more.
©
TALK
BACK
MIC
(microphone)
To send
information
from
the
mixer
to
the
output
connectors
selected
with
the TALK
BACK
buttons
©
,
©
and
©
.
©
TALK
BACK
MASTER
button
While
this button
is
depressed,
the
output from
the
built-in
microphone
is fed
to the
LINE
OUT
and
LINE
connectors.
The
output
to the
MONITOR
L, R
connectors
©
are
automatically
muted.
©
TALK BACK
AUX
1,
2 buttons
While one
of these buttons is
depressed,
the
output
from
the
built-in
microphone
is
fed
to the AUX
1 or 2
connector. The
output to the
MONITOR
L,
R connectors
©
are automatically
muted.
©
TALK
BACK
TB OUT
button
While
this
button
is
depressed,
the
output
from
the
built-in
microphone
is fed
to
the TB
connector
©
.
The
output to the
MONITOR
L,
R connectors
©
are
automatically
muted.
©
TB
LEVEL
control
Adjusts
the
built-in
microphone
sound
level.
©
PHONES
control
Adjusts
the level
of
the
headphones
connected
to
the
PHONES
jack.
©
MONITOR
SELECT
switch
Selects
the
output signal
to
be
monitored.
MASTER:
line
outputs
AUX
1:
auxiliary
1
output
AUX 2:
auxiliary
2
output
When
the
PFL
button
of each
channel
or the
EXT
MON
button
is
depressed,
the
pre-fader
signal
or
the
signal
connected
to the EXT
MON
connectors
©
is selected
independent
of the
setting
of
this
selector.
©
MONITOR
LEVEL
control
Adjusts
th
output
level
of the
MONITOR
connectors.
The gain
margin
at the
maximum
setting
is
10dB.
©
EDITOR
CONTROL
indicator
Lights
when
the
unit
is
controlled
by
the
external
equipment
such
as
editing
control
unit
BVE-900.
©
MON
MUTE
connector
(phono
jack)
To
externally
mute
the
monitor
outputs
from
the
MONITOR
connectors
by
short-circuiting
this
jack.
©
TB
connector
(phono
jack)
While
the
TALK
BACK
TB
OUT
button
is
depressed,
the signal
from
the built-in
microphone
is
fed
to this
connector.
©
MONITOR
L, R
connectors
(phono
jacks)
To
connect
a power
amplifier
to drive
the
monitor
speakers.
©
EXT
MON
connectors
(XLR-3-31
connectors)
To
monitor
external
signals
For
example,
the
monitoring
of signals
which
have
already
been
broadcasted
or
recorded from
the
mixer.
(Pin
assignment:
1;
GND,
2;
hot,
3;
cold)
