Sony mxp-29 - Page 71

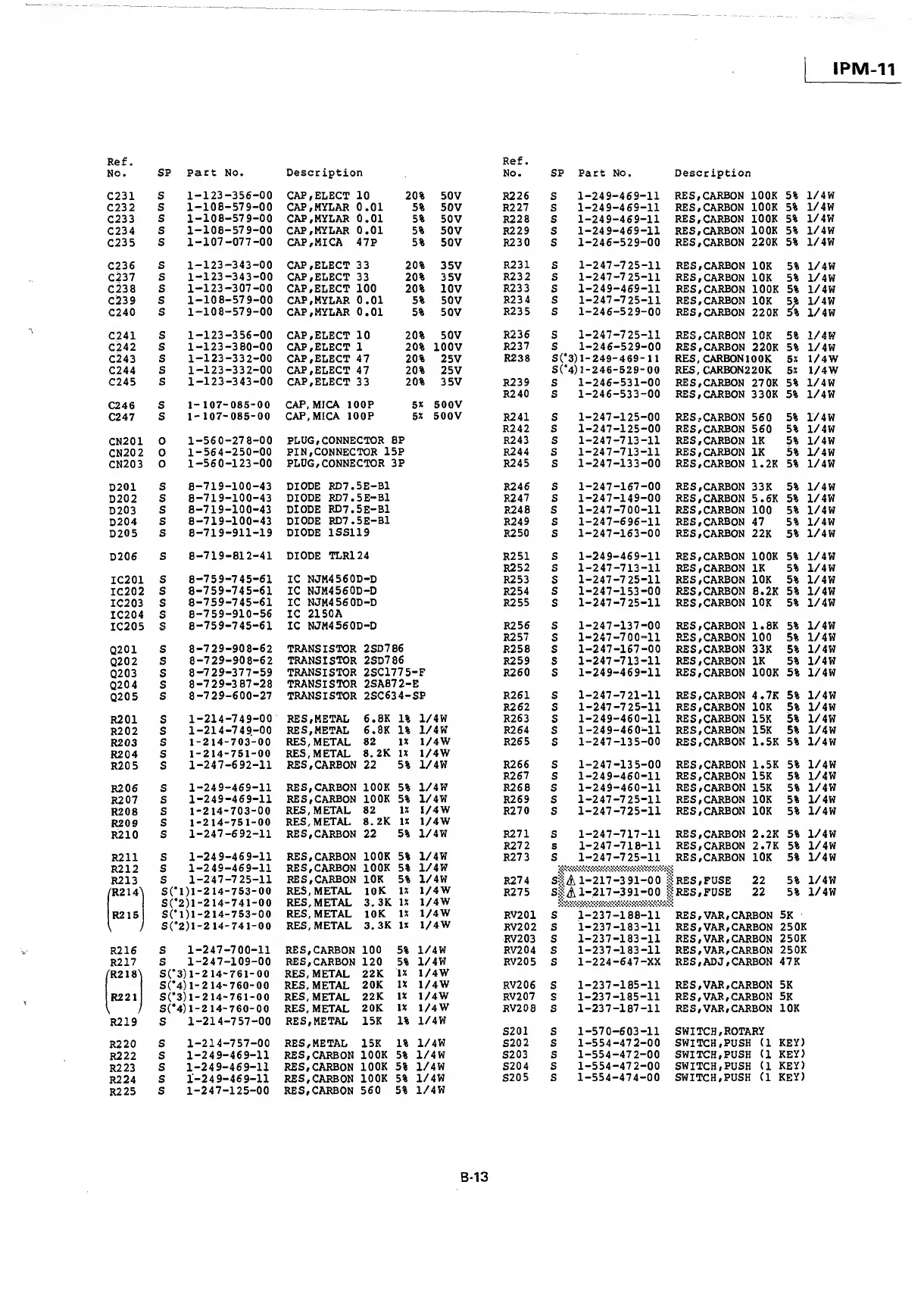

IPM-11
Ref.
Ref.
No.
SP Part No. Description
No. SP Part No. Description
C231
S
1-123-356-00
CAP, ELECT 10
20% 50V
R226 S
1-249-469-11
RES,
CARBON 100K 5%
1/4W
C23
2 S
1-108-579-00
CAP, MYLAR 0.01
5% 50V
R227 S
1-249-469-11
RES,
CARBON 100K 5%
1/4W
C233
S
1-108-579-00
CAP, MYLAR 0.01 5%
50V
R228 S
1-249-469-11
RES,
CARBON lOOK 5% 1/4W
C234
s
1-108-579-00
CAP, MYLAR 0.01 5%
50V
R229 S
1-249-469-11
RES, CARBON 100K
5% 1/4W
C235
s
1-107-077-00
CAP,
MICA 47
P
5% 50V
R230 S
1-246-529-00
RES,
CARBON
220K
5% 1/4W
C236
s
1-123-343-00
CAP, ELECT 33 20%
35V
R231
S
1-247-725-11
RES, CARBON
10K
5% 1/4W
C237
s
1-123-343-00
CAP, ELECT 33 20%
35V
R232
s
1-247-725-11
RES, CARBON
10K
5%
1/4W
C238
s
1-123-307-00
CAP, ELECT 100 20%
10V
R233
s
1-249-469-11
RES, CARBON
100K 5% 1/4W
C239
s
1-108-579-00
CAP, MYLAR 0.01 5%
50V
R234
s
1-247-725-11
RES, CARBON
10K
5%
1/4W
C240
s
1-108-579-00
CAP,
MYLAR 0.01 5% 50V
R235
s
1-246-529-00
RES, CARBON
220K 5% 1/4W
C241
s
1-123-356-00
CAP,
ELECT
10
20%
50V
R236
s
1-247-725-11
RES,
CARSON
10K
5% 1/4W
C242
s
1-123-380-00
CAP,
ELECT 1 20% 100V
R237
S
1-246-529-00
RES,
CARBON
220K 5% 1/4W
C243
s
1-123-332-00
CAP,
ELECT
47
20% 25V
R238 S(*3)
1-249-
469
-
11 RES, CARBONIOOK
SX 1/4W
C244
s
1-123-332-00
CAP, ELECT 47 20%
25V
S(*4)
1-246-529-00
RES, CARBON220K
SX 1/4W
C245
s
1-123-343-00
CAP, ELECT
33
20% 35V
R239 S
1-246-531-00
RES, CARBON
27
OK
5% 1/4W
R240 S
1-246-533-00
RES, CARBON
3 3 OK 5% 1/4W
C246
s
1-
107-085-00
CAP,
MICA
100P
5* 500V
C247
s
1-107-085-00
CAP, MICA 100P
5X
500V
R241 s
1-247-125-00
RES,
CARBON
560 5% 1/4W
R242 s
1-247-125-00
RES,
CARBON
560 5% 1/4W
CN201
0
1-560-278-00
PLUG, CONNECTOR
8P
R243
s
1-247-713-11
RES,
CARBON
IK 5% 1/4W
CN20
2
:
0
1-564-250-00
PIN, CONNECTOR 15P
R244 S
1-247-713-11
RES, CARBON
IK 5% 1/4W
CN203
0
1-560-123-00
PLUG, CONNECTOR
3P
R245 s
1-247-133-00
RES,
CARBON
1.2K
5%
1/4W
D201
S
8-719-100-43
DIODE
RD7.5E-B1
R246 s
1-247-167-00
RES, CARBON
33K 5% 1/4W
D202
s
8-719-100-43
DIODE
RD7.5E-B1
R247
s
1-247-149-00
RES, CARBON
5.6K 5% 1/4W
D203
s
8-719-100-43
DIODE
RD7.5E-B1
R248 s
1-247-700-11
RES,
CARBON
100 5% 1/4W
0204
s
8-719-100-43
DIODE RD7.5E-B1
R249 s
1-247-696-11
RES, CARBON 47 5% 1/4W
D205
s
8-719-911-19
DIODE 1SS119
R250 s
1-247-163-00
RES, CARBON
22K
5% 1/4W
D206
s
8-719-812-41
DIODE TLR124
R251 s
1-249-469-11
RES, CARBON 100K 5% 1/4W
R252
s
1-247-713-11
RES, CARBON IK 5% 1/4W
IC201
S
8-759-745-61
IC NJM4560D-D
R253 s
1-247-725-11
RES,
CARBON
10K
5% 1/4W
IC202
S
8-759-745-61
IC NJM4560D-D
R254 s
1-247-153-00
RES, CARBON
8.2K
5%
1/4W
IC203
:
S
8-759-745-61
IC NJM4560D-D
R255
s
1-247-725-11
RES, CARBON
10K
5% 1/4W
IC204
S
8-759-910-56
IC 2150A
IC2Q5
S
8-759-745-61
IC
NJM4560D-D
R256 s
1-247-137-00
RES,
CARBON
1.8K 5% 1/4W
R257
s
1-247-700-11
RES,
CARBON
100 5%
1/4W
Q201
S
8-729-908-62
TRANSISTOR
2SD786
R258
s
1-247-167-00
RES, CARBON
33K
5%
1/4W
Q202 s
8-729-908-62
TRANSISTOR 2SD786
R259 s
1-247-713-11
RES, CARBON IK 5% 1/4W
Q203
s
8-729-377-59
TRANSISTOR
2SC1775-F
R260 s
1-249-469-11
RES,
CARBON
100K
5% 1/4W
Q204
s
8-729-387-28
TRANSISTOR 2SA872-E
Q205
s
8-729-600-27
TRANSISTOR 2SC634-SP R261 S
1-247-721-11
RES,
CARBON
4.7K 5%
1/4W
R262 s
1-247-725-11
RES,
CARBON
10K 5% 1/4W
R201
s
1-214-749-00
RES, METAL 6.8K 1%
1/4W
R263 s
1-249-460-11
RES,
CARBON
15K
5% 1/4W
R202 s
1-214-749-00
RES, METAL
6.8K
1%
1/4W
R264 s
1-249-460-11
RES, CARBON
15K
5%
1/4W
R203
s
1-214-703-00
RES,
METAL
82 IX 1/4W
R265 s
1-247-135-00
RES, CARBON 1.5K 5%
1/4W
R204
s
1-214-751-00
RES, METAL 8.2K
IX
1/4W
R205
s
1-247-692-11
RES, CARBON 22 5% 1/4W R266
s
1-247-135-00
RES, CARBON
1.5K
5% 1/4W
R267 s
1-249-460-11
RES, CARBON
15K
5%
1/4W
R206
s
1-249-469-11
RES, CARBON 100K
5%
1/4W
R268 s
1-249-460-11
RES,
CARBON
15K
5%
1/4W
R207
s
1-249-469-11
RES, CARBON 10 OK 5%
1/4W
R269
s
1-247-725-11
RES, CARBON
10K
5% 1/4W
R208
s
1-214-703-00
RES,
METAL 82
IX I/4W
R27
0
s
1-247-725-11
RES, CARBON
10K
5% 1/4W
R209
s
1-214-751-00
RES,
METAL
8.
2K
«
1/4W
R210
s
1-247-692-11
RES, CARBON 22 5%
1/4W
R27
1
s
1-247-717-11
RES, CARBON
2.2K
5% 1/4W
R27
2 s
1-247-718-11
RES, CARBON
2.7K
5% 1/4W
R211
s
1-249-469-11
RES, CARBON 100K 5%
1/4W
R273 s
1-247-725-11
RES, CARBON
10K
5% 1/4W
R212
s
1-249-469-11
RES, CARBON
100K
5%
1/4W
R213
s
1-247-725-11
RES, CARBON 10K 5%
1/4W
R27
4
si
A
1-217-391-00 ;
RES,
FUSE
22 5%
1/4W
'R214
S
(*1)1-214- 753-
00
RES, METAL 10K
lx
1/4W
R27
5 s|
A
1-217-391-00
|
RES, FUSE 22
5%
1/4W
S(*2)l
-214-741-00
RES, METAL
3.
3K
lx
1/4W
R215
S(*l)l
- 2
14-753-00
RES, METAL 10K
IX
1/4W
RV201
s
1-237-188-11
RES, VAR, CARBON
5K
J
S(*2)l-214-
741-00
RES,
METAL
3.
3K
lx
1/4W
RV202
s
1-237-183-11
RES, VAR,
CARBON 250K
RV203
s
1-237-183-11
RES,
VAR, CARBON 250K
R216
S
1-247-700-11
RES, CARBON 100
5%
1/4W
RV204
s
1-237-183-11
RES, VAR,
CARBON
250K
R217
S
1-247-109-00
RES, CARBON
120 5%
1/4W RV205
s 1-224-647-XX
RES, AD
J,
CARBON 47K
/R2 1 8\
S("3)l-214-761-00
RES, METAL 22K
IX
1/4W
S
(*4)1-214- 760-00
RES, METAL
2 OK
IX 1/4W
RV206
s
1-237-185-11
RES, VAR, CARBON 5K
R221
S(*3)
1-214-761-00
RES, METAL
22
K
IX 1/4W
RV207
s
1-237-185-11
RES, VAR, CARBON
5K
I
S(*4)l-214-760-00 RES, METAL
2 OK
1* 1/4W
RV208
s
1-237-187-11
RES, VAR, CARBON 10K
R219
S
1-214-757-00
RES, METAL 15K 1%
1/4W
S201 s
1-570-603-11
SWITCH, ROTARY
R220
S
1-214-757-00
RES, METAL 15K 1%
1/4W
S202
s
1-554-472-00
SWITCH, PUSH
(1 KEY)
R222
S
1-249-469-11
RES, CARBON 100K 5%
1/4W
S203
s
1-554-472-00
SWITCH, PUSH (1
.KEY)
R223
S
1-249-469-11
RES, CARBON
100K 5%
1/4W S204
s
1-554-472-00
SWITCH, PUSH
(1 KEY)
R224
S
1-249-469-11
RES, CARBON
100K
5%
1/4W
S205
s
1-554-474-00
SWITCH,
PUSH (l
:KEY)
R225
S
1-247-125-00
RES, CARBON
560 5%
1/4W
B-13
