Sony MZ-E55 - 7 Exploded Views; Main Section

– 29 –
SECTION 7
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Accessories and packing materials are given
in the last of this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

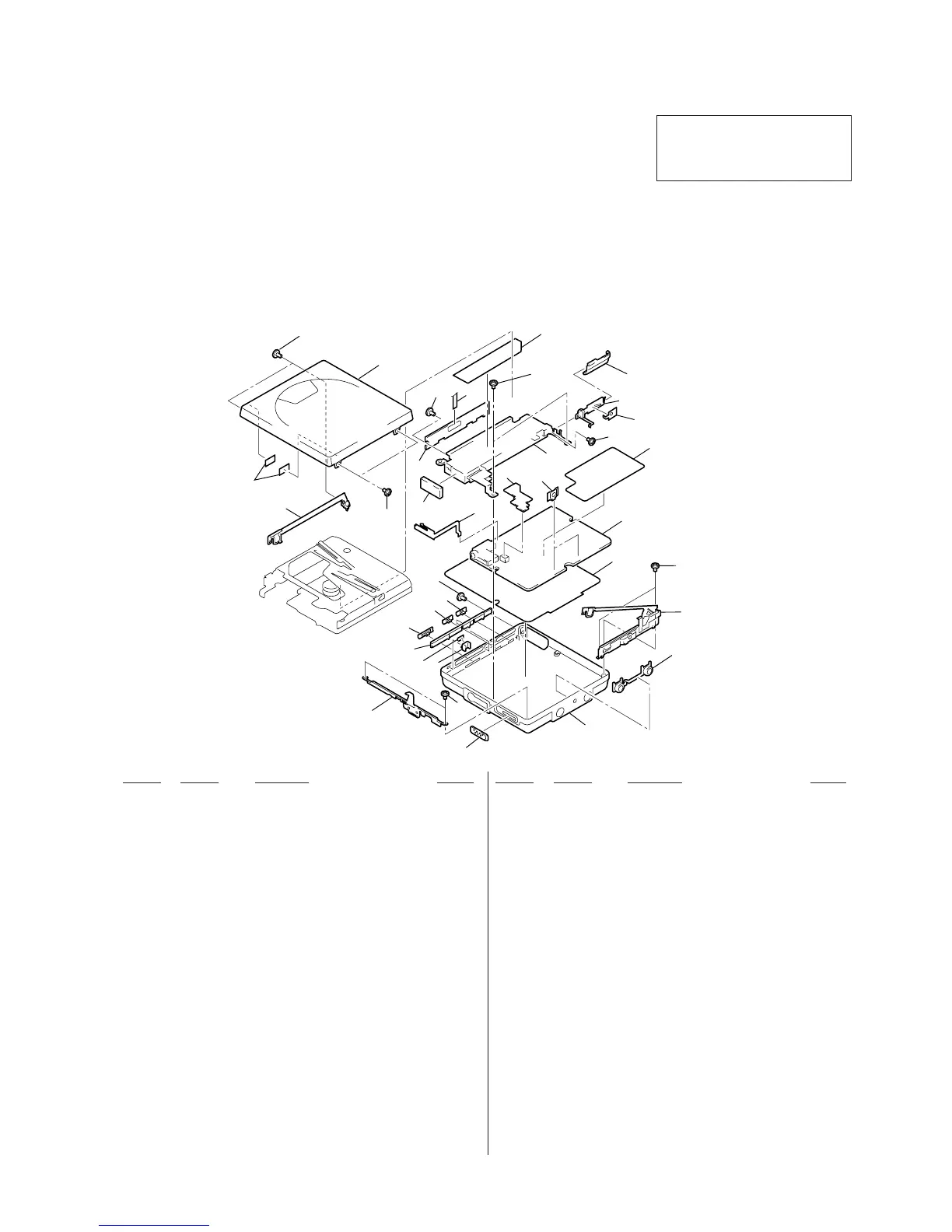

7-1. MAIN SECTION
• Abbreviation
HK : Hong Kong
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
1 4-212-867-01 PANEL, BOTTOM (GOLD)
1 4-212-867-11 PANEL, BOTTOM (BLUE) (HK)
2 4-212-872-01 KNOB, OPEN
3 X-4950-410-1 SLIDER ASSY, OPEN
4 4-963-883-61 SCREW (M1.4), PRECISION PAN
5 4-212-884-01 WINDOW (LED)
6 4-212-885-01 SHEET (LED), ADHESIVE
7 4-212-868-01 BUTTON, CONTROL
8 4-212-883-01 KNOB (HOLD) (GOLD)
8 4-212-883-11 KNOB (HOLD) (BLUE) (HK)
9 4-212-882-01 KNOB (MB) (GOLD)
9 4-212-882-11 KNOB (MB) (BLUE) (HK)
10 4-213-653-11 KNOB (AVLS) (BLUE) (HK)
10 4-213-653-01 KNOB (AVLS) (GOLD)
11 4-212-895-01 TERMINAL BOARD (MINUS)
12 4-963-883-21 SCREW (M1.4), PRECISION PAN (GOLD)
12 4-963-883-31 SCREW(M1.4), PRECISION PAN (BLUE) (HK)
13 4-963-883-21 SCREW (M1.4), PRECISION PAN
14 X-4950-413-1 PLATE (L) ASSY, FULCRUM
15 X-4950-578-1 UPPER PANEL ASSY (GOLD)
15 X-4950-579-1 UPPER PANEL ASSY (BLUE) (HK)
16 3-375-114-61 SCREW
17 1-670-708-11 SWITCH FLEXIBLE BOARD
18 4-213-092-01 LABEL, CAUTION
19 4-212-873-11 LID, BATTERY CASE (BLUE) (HK)
19 4-212-873-01 LID, BATTERY CASE (GOLD)
20 X-4950-411-1 TERMINAL (PLUS) ASSY, BATTERY
21 4-212-886-01 CASE, BATTERY
* 22 1-670-711-11 AUDIO BOARD
* 23 1-670-710-11 SWITCH BOARD
24 4-212-901-01 TERMINAL
25 A-3323-057-A MAIN BOARD, COMPLETE
26 4-212-871-01 SHEET, BLIND
27 4-212-870-01 SHEET, INSULATING
28 X-4950-419-1 PLATE (R) ASSY, FULCRUM
29 4-212-869-01 ESCUTCHEON
30 3-365-630-02 SCREW (M1.4) STEP
31 3-365-630-21 SCREW (M1.4) STEP (GOLD)
31 3-365-630-31 SCREW (M1.4) STEP (BLUE) (HK)
32 4-215-298-01 SPACER (FULCRUM)
33 4-214-628-01 SPACER (PLUS TERMINAL)
34 4-214-158-01 DAMPER (-)
1
2
3
4
5
6
7
8
9
10
11
34
12
12
31
12
14
32
15
16
17
18
19
20
21
22
23
24
25
26
13
30
27
28
29
33
