Sony MZ-E55 - Main Board, Audio Board; Switch Board

– 5 –

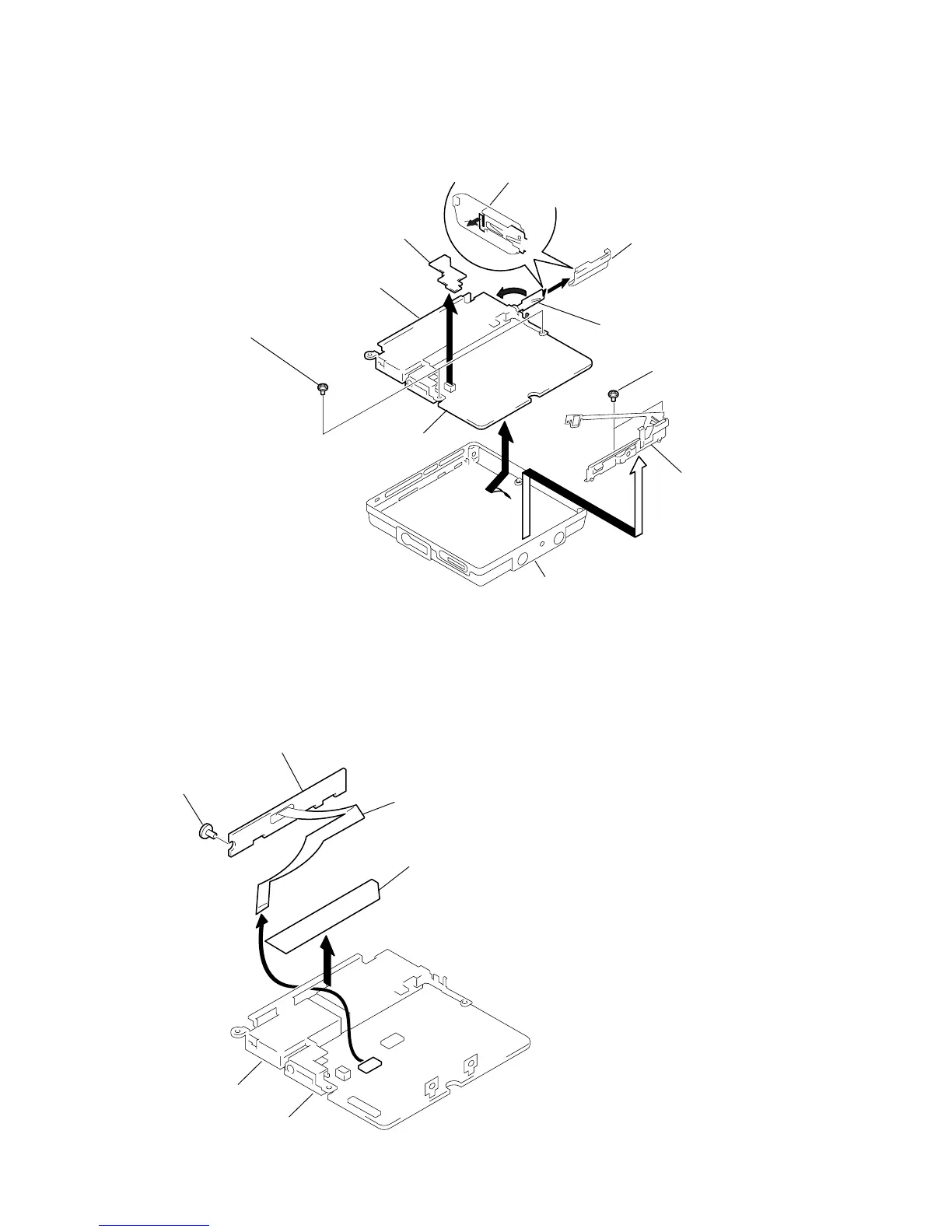

3-4. SWITCH BOARD
3-3. MAIN BOARD, AUDIO BOARD
5 Screws (M1.4) precision pa
n
6
7
8
1
2
3
Main board
* Audio board
Case, Battery
Panel, Buttom
Plate (R) ASSY, Fulcrum
Lid, Battery case
Terminal (plus) ASSY, Battery
4 Screws (M1.4) step
Claw
2
3
Main board
Switch board
Switch flexible board
* Label, Caution
Case, Battery
1 Screw
* NOTE :
When removing the audio board, lift up on the board so that the
connector separates vertically.
* NOTE :
The caution label (4-213-092-01) affixed to the switch-flexible
board will be damaged or deformed when the switch board or the
switch-flexible board is removed so replace it with a new caution
label.
