Sony MZ-E55 - Mechanism Deck Section

– 30 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-982-561-11 SPRING, RACK
52 4-963-883-61 SCREW (M1.4), PRECISION PAN
53 1-670-707-11 CLV FLEXIBLE BOARD
54 4-963-883-21 SCREW (M1.4), PRECISION PAN
55 3-349-825-82 SCREW, PRECISION
56 4-212-896-01 HOLDER
57 X-4950-414-1 CHASSIS ASSY
58 4-982-555-01 GEAR (A)
59 4-965-893-01 WASHER, GEAR (A) STOPPER
60 4-986-811-01 SPRING (EJECT), TENSION
61 X-4948-793-1 LEAD SCREW ASSY
62 4-212-899-01 SPRING, THRUST
! 63 X-4949-164-1 OPTICAL PICK-UP BLOCK ASSY
64 4-214-478-01 SHAFT (MAIN)
M901 8-835-594-02 MOTOR, DC (SPINDLE)
M902 1-698-764-21 MOTOR, SLED (SLED) (INCLUDING GEAR)
R1001 1-216-789-11 METAL CHIP 2.2 5% 1/16W
(NEW TYPE)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.

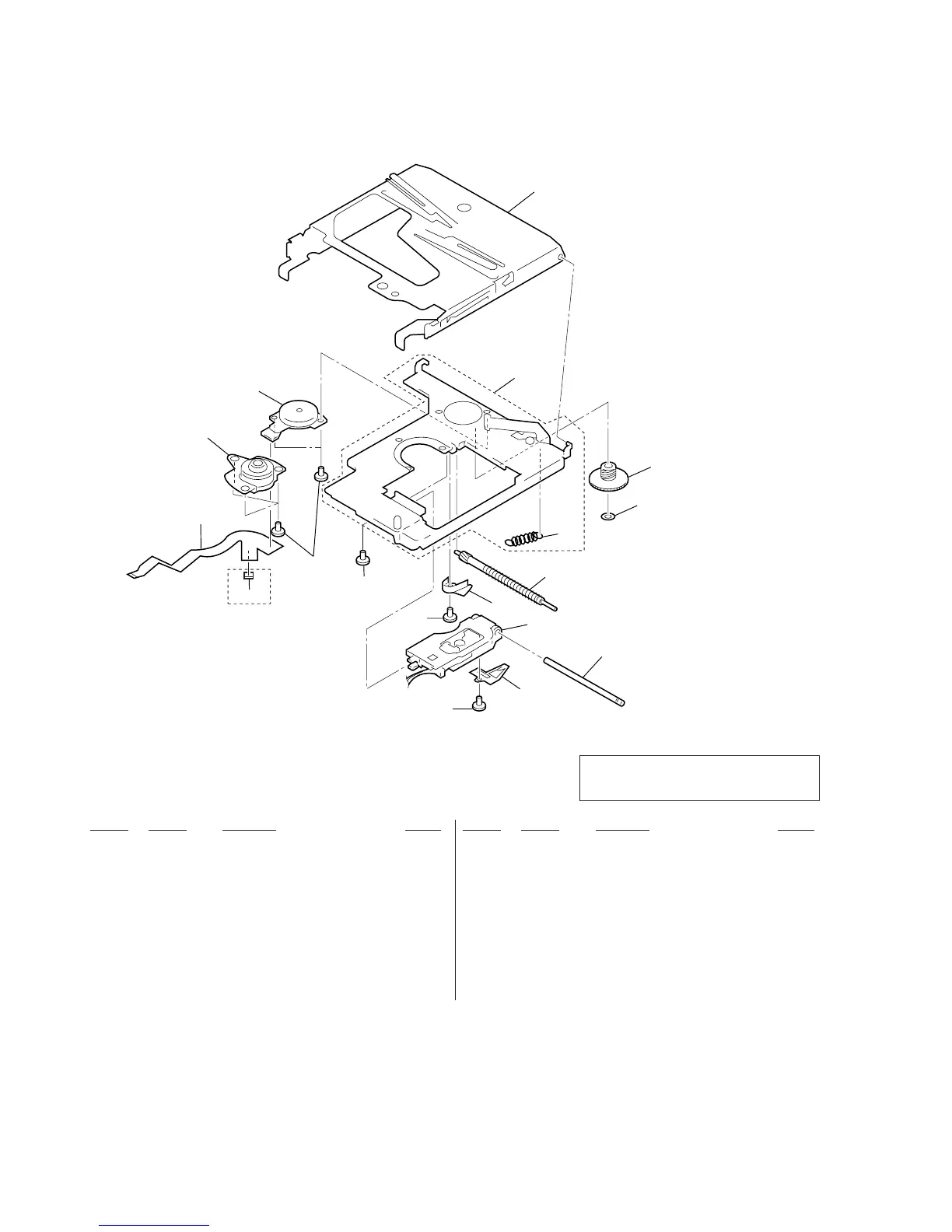

7-2. MECHANISM DECK SECTION
(MT-MZE55-150)
M902
M901
* NEW TYPE
R1001
51
52
52
53
54
55
56
57
58
59
60
61
62
63
64
*Note:
Use R1001 only with Ver.3 of microprocessor (IC801).
Using R1001 with other microprocessor versions will
cause operating errors so be sure to remove it.
You can check the version with Test Mode (page 7).
