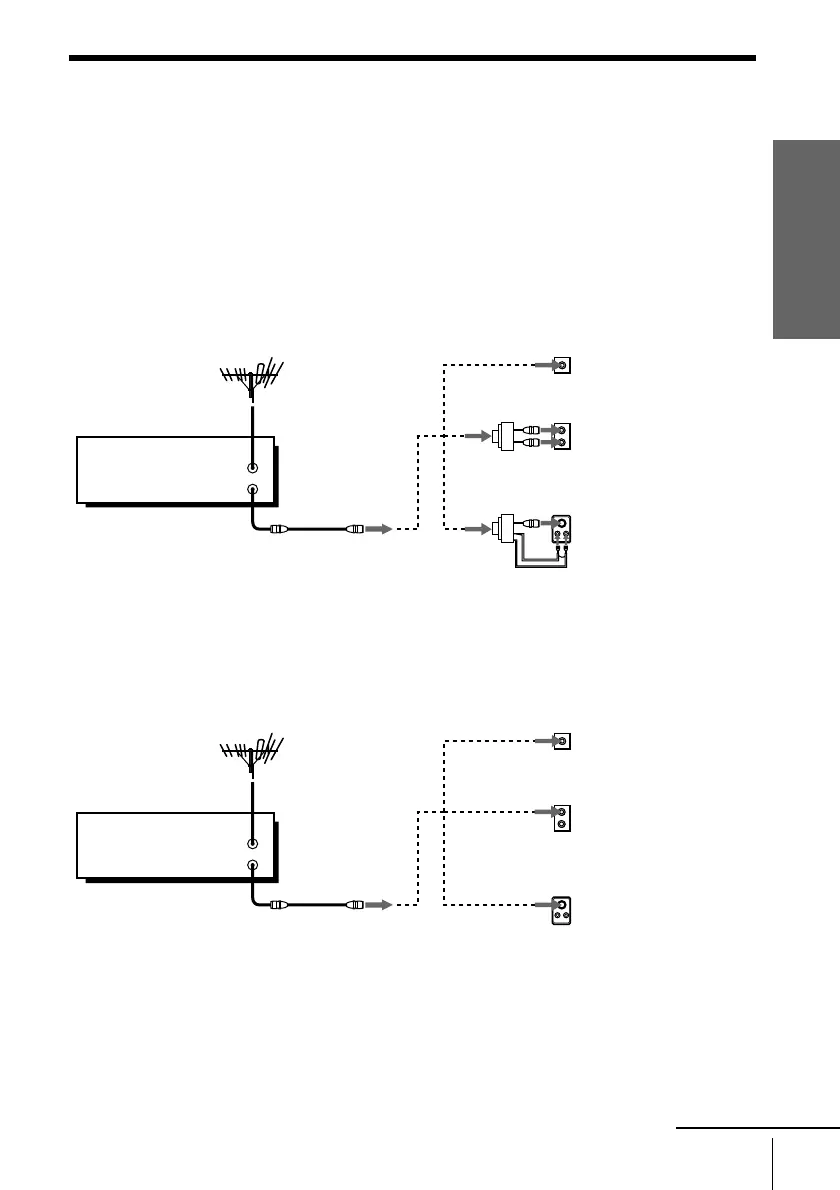

Hookup 4
Antenna hookup
Make the following connections if you’re using an antenna (if you don’t have cable
TV).
A Usethishookupifyou’re using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
B Usethishookupifyou’re using a VHF-only antenna (you get
channels 2–13 only)
If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external
antenna connector (not supplied) so you can connect the cable to the VHF/UHF IN
connector. If you have separate cables for VHF and UHF antennas, you should use a
U/V band mixer (not supplied). For details, see page 97.
IN
OUT
VHF/UHF
or
A
RearofTV
VHF/UHF
B
VHF
C
VHF
or
Match the type of
connector on your
TV:A,B,orC.
UHF
UHF
VCR
IN
OUT
VHF/UHF
or
A
RearofTV
VHF/UHF
B
VHF
C
VHF
or
Match the type of
connector on your
TV:A,B,orC.
UHF
UHF
VCR
For connector type
s
B and C, no UHF
connection is
required.
