Index to parts and controls
filename[010ADDI.fm] model name1[SLV-N81] model name2[SLV-N71]
[3-065-551-11 (1)]
Additional Information
Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.

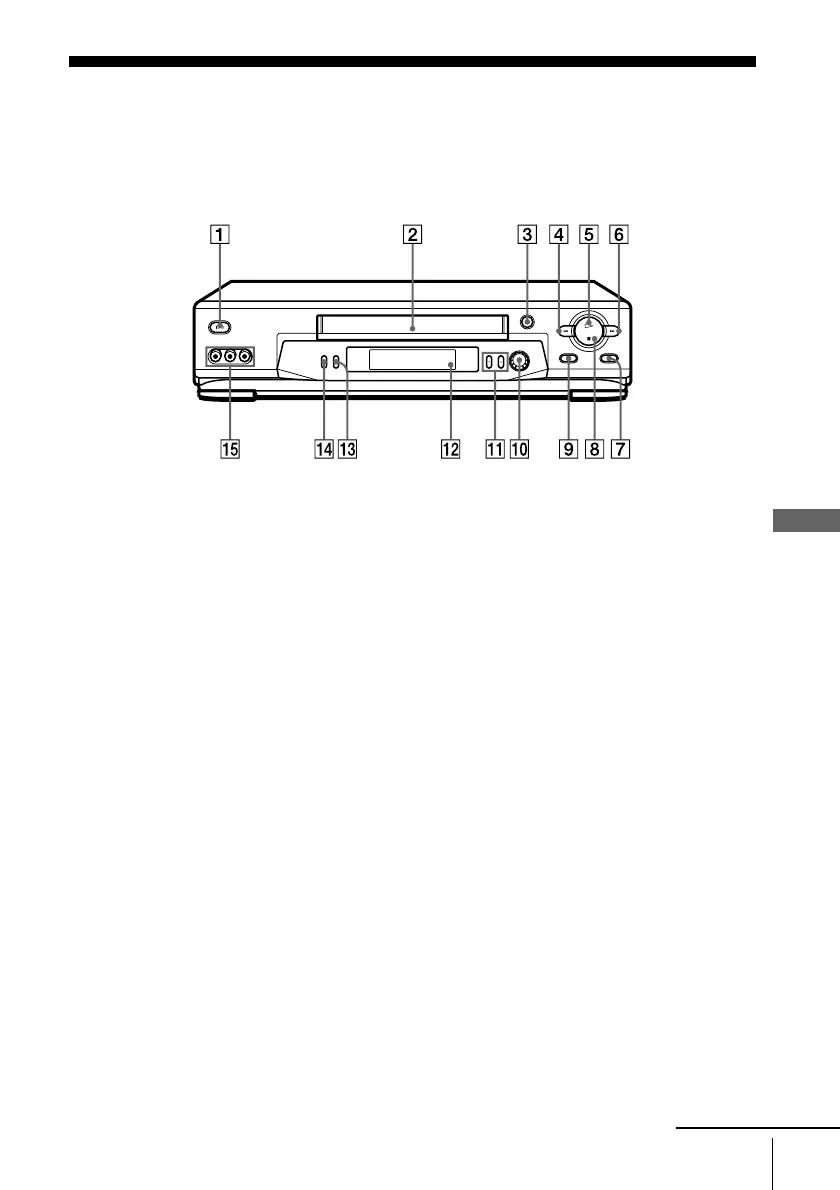

Front panel
A ?/1 POWER switch (71)
B Tape compartment
C Z EJECT button (60)
D m REW (rewind) button (60) (77)
E H PLAY button (60) (77)
F M FF (fast-forward) button (60) (77)
G z REC(record)button(63)(79)(95)
H x STOP button (60) (95)
I X PAUSE button (60) (95)
J DIAL TIMER (65)
K CHANNEL/TRACKING +/– buttons
(63) (90)
L Remote sensor (7)
M INPUT SELECT button (64)
N EASY SET UP button (13) (16) (19) (22)
(25)
O LINE-2 IN VIDEO/AUDIO L/R jacks
(94)
