Sony PHA-1A - Battery Section

24
PHA-1A/1AEU

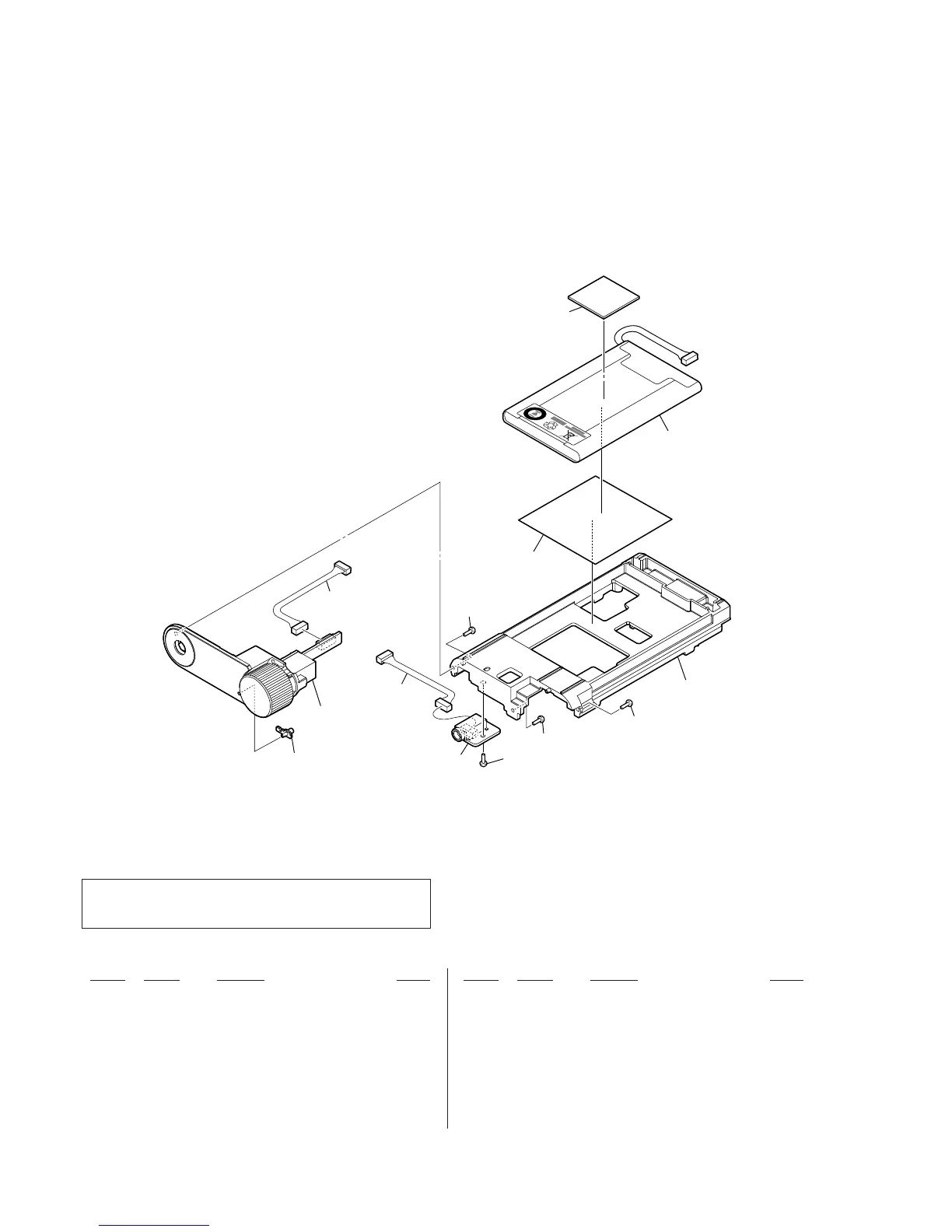

4-2. BATTERY SECTION
51 4-563-927-01 GUIDE, LIGHT
52 4-563-968-01 CUSHION, BATTERY
53 4-567-766-01 SHEET, FRAME
54 4-563-919-03 FRAME
55 3-254-083-11 SCREW (L = 4.5 mm)
56 A-2072-474-A HP JACK BOARD, COMPLETE (PHA-1A)
56 A-2081-095-A HP JACK BOARD, COMPLETE (PHA-1AEU)
BAT1 X-2591-595-1 BATTERY ASSY (SV)
(Including Label (Battery recycle)) (See Note)
VOL1 X-2591-560-1 PLATE MIDDLE ASSY (SV)
(Including VOLUME board)
WR1 1-848-857-11 CABLE WITH CONNECTOR (8 pin)
(MAIN - VOLUME board)
WR2 1-848-858-11 CABLE WITH CONNECTOR (3 pin)
(MAIN - HP JACK board)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
53
52
55
BAT1
WR1
WR2
VOL1
55
55
54
55
56
51
Note: When removing the battery assy (Ref. No. BAT1) from the
frame sheet or battery cushion, the battery assy (Ref. No. BAT1)
cannot be reused. Besure to replace them with new parts.
Ver. 1.1
