Sony PHA-1A - Plate Middle Assy; HP JACK Board

PHA-1A/1AEU
7

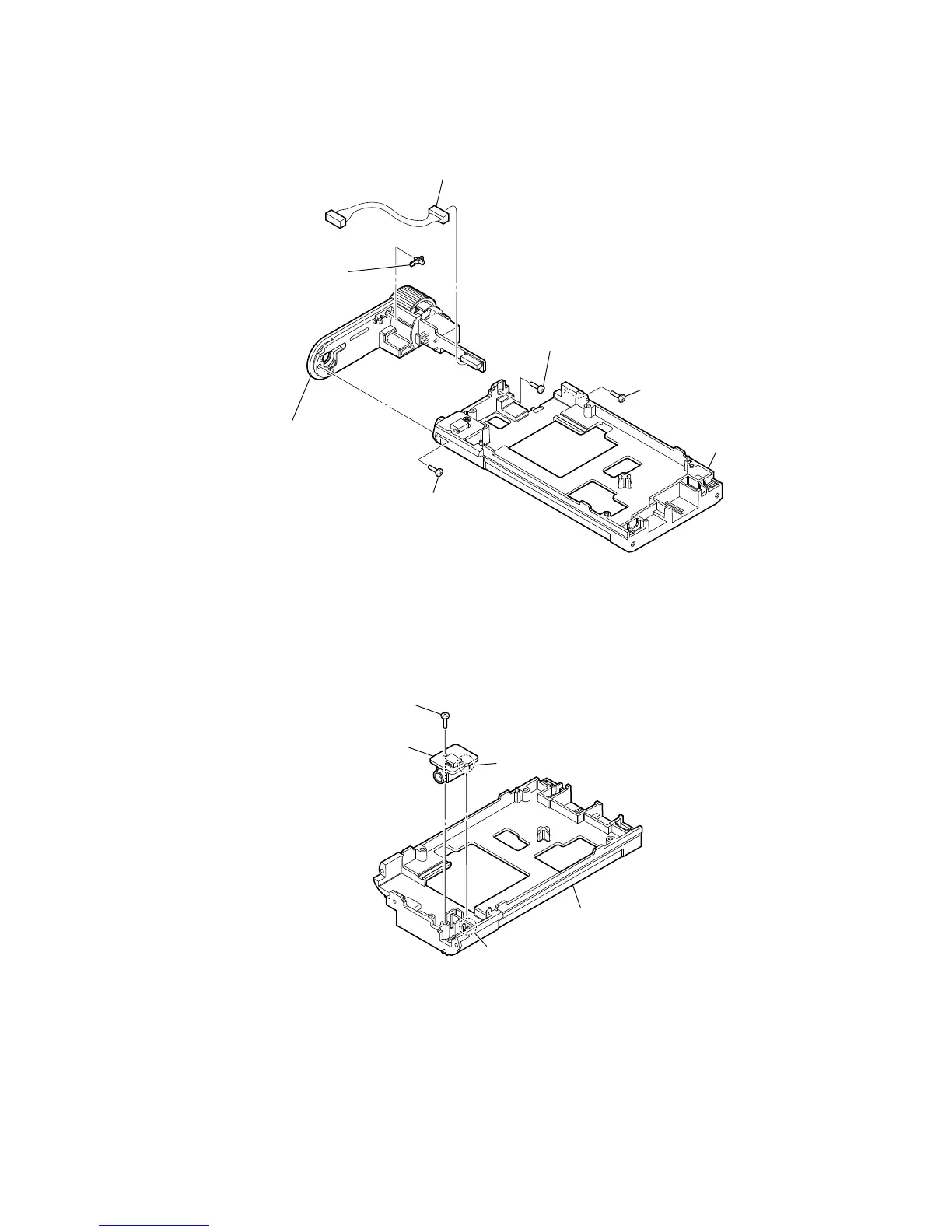

2-6. PLATE MIDDLE ASSY
2-7. HP JACK BOARD
4 plate middle assy
1 screw
(M1.7 u 4.5)
frame block
1 screw
(M1.7 u 4.5)
1 screw
(M1.7 u 4.5)
2 connector
(CN301)
3 light guide
– Frame block MAIN board installation side –
1 screw
(M1.7 u 4.5)
2 HP JACK board
ditch
boss
– Frame block MAIN board installation side –
frame block
