Sony PHA-1A - Case Block, MAIN Board Block; Battery Assy (BAT1)

PHA-1A/1AEU
5

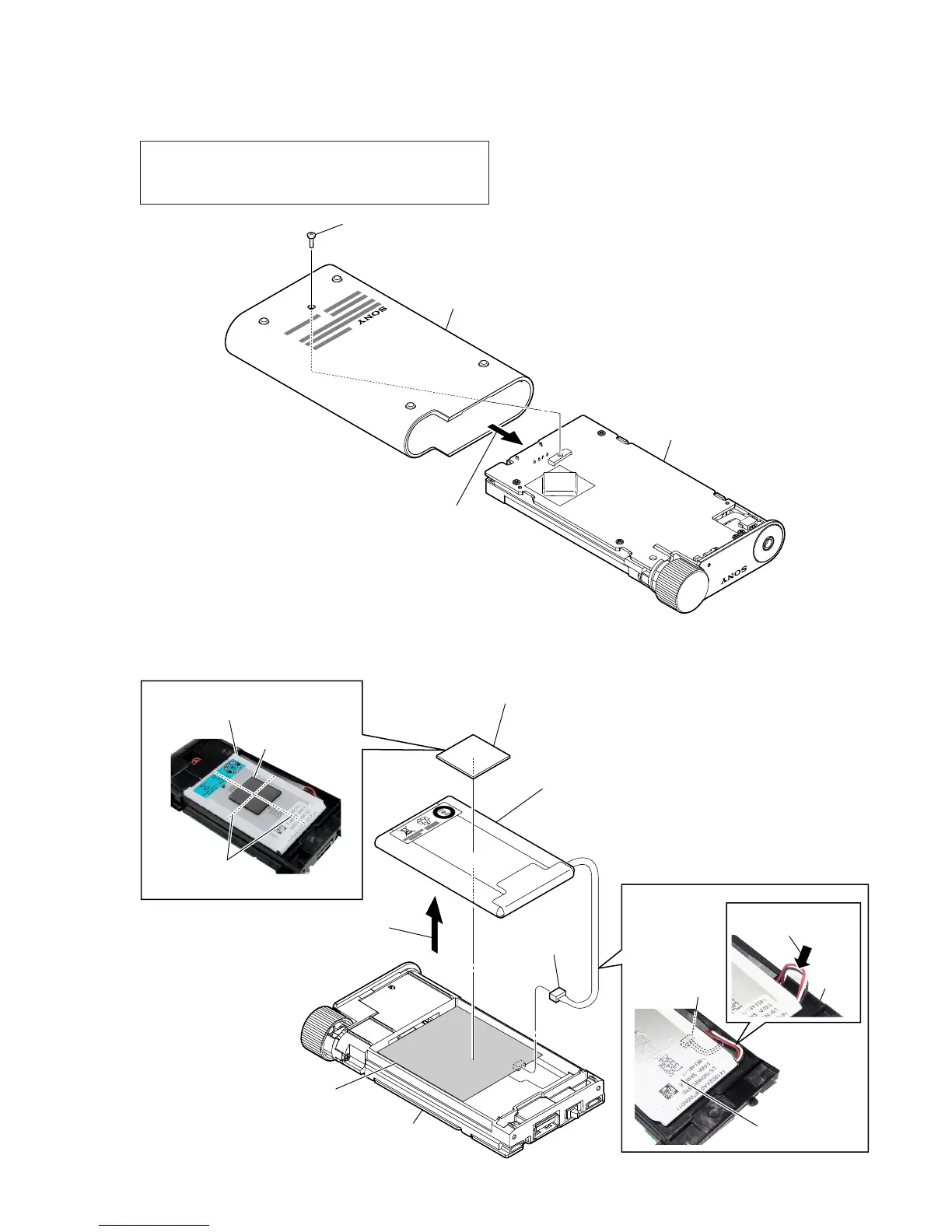

2-3. CASE BLOCK, MAIN BOARD BLOCK
1 screw
(M1.4 u 2.5)
4
case block
3
MAIN board block
2 Push the MAIN board block
in the direction of the arrow.
Note: When replacing the case, be sure to replace the MAIN board
simultaneously.
Among the repair parts, the MAIN board and case are supplied
as one unit.
2-4. BATTERY ASSY (BAT1)
3
Lift up the battery assy (BAT1)
in the direction of the arrow.
2
Peel off the battery assy (BAT1)
from the frame sheet.
frame block
4
connector
(CN702)
– Frame block battery installation side –
connector
(CN702)
Push the wire inside
of the frame.
frame
battery assy
(BAT1)
 :ire settinJ
 3astinJ Sosition oI battery cXsKion
battery assy
(BAT1)
battery cushion
guide line
(center)
5
battery assy (BAT1)
Note 2:
When removing the battery assy (BAT1),
the battery assy (BAT1) cannot be reused.
Be sure to replace them with new parts.
1 battery cushion
Note 1:
When removing the
battery cushion
from
the battery assy (BAT1), be sure to replace
the battery assy (BAT1) with new parts.
