Sony PHA-1A - Disassembly

PHA-1A/1AEU
4
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

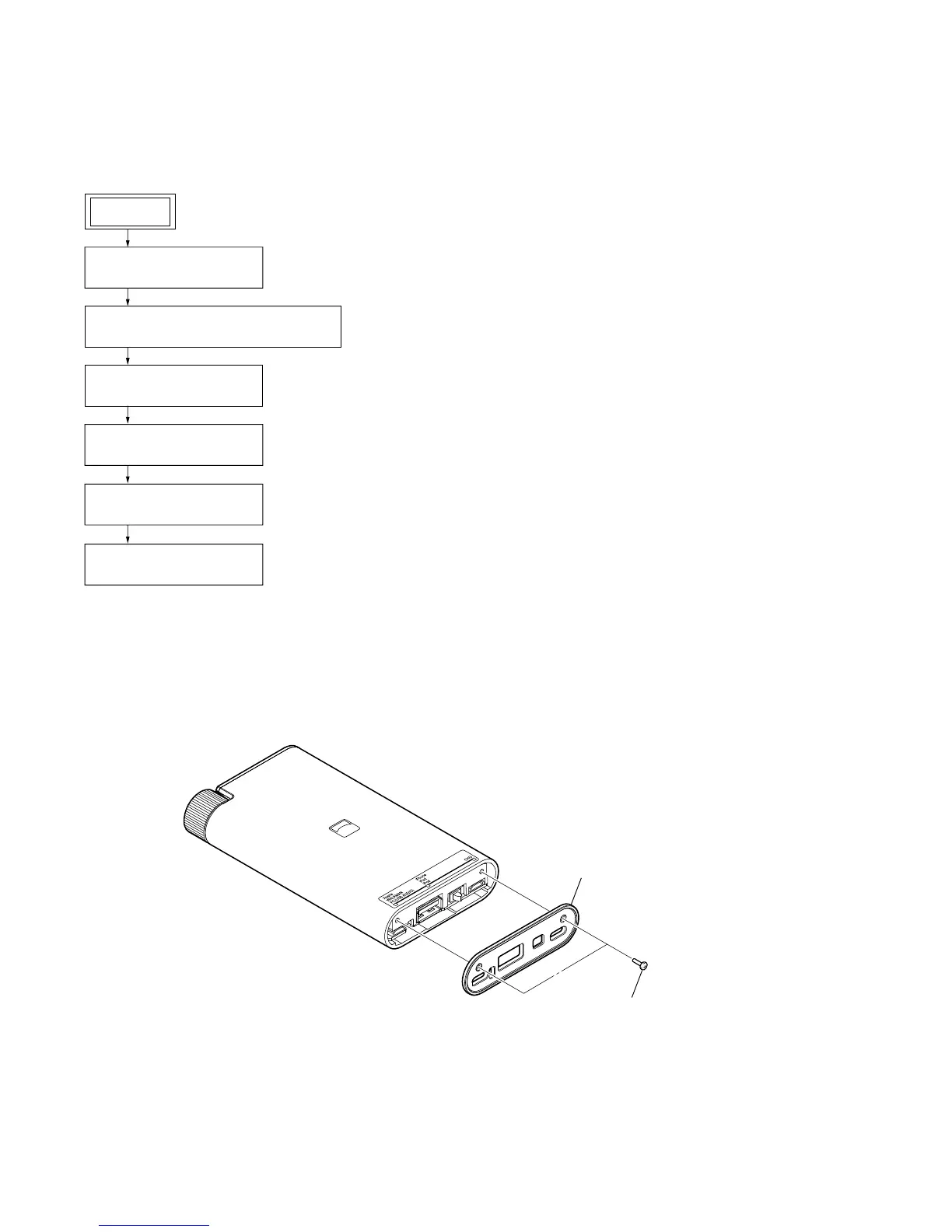

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. BOTTOM PANEL
SET
2-3. CASE BLOCK, MAIN BOARD BLOCK
(Page 5)
2-7. HP JACK BOARD
(Page 7)
2-4. BATTERY ASSY (BAT1)
(Page 5)
2-5. MAIN BOARD
(Page 6)
2-6. PLATE MIDDLE ASSY
(Page 7)
2-2. BOTTOM PANEL
(Page 4)
1 two screws
(M1.4 u 4)
2 bottom panel
