Part Identification
12

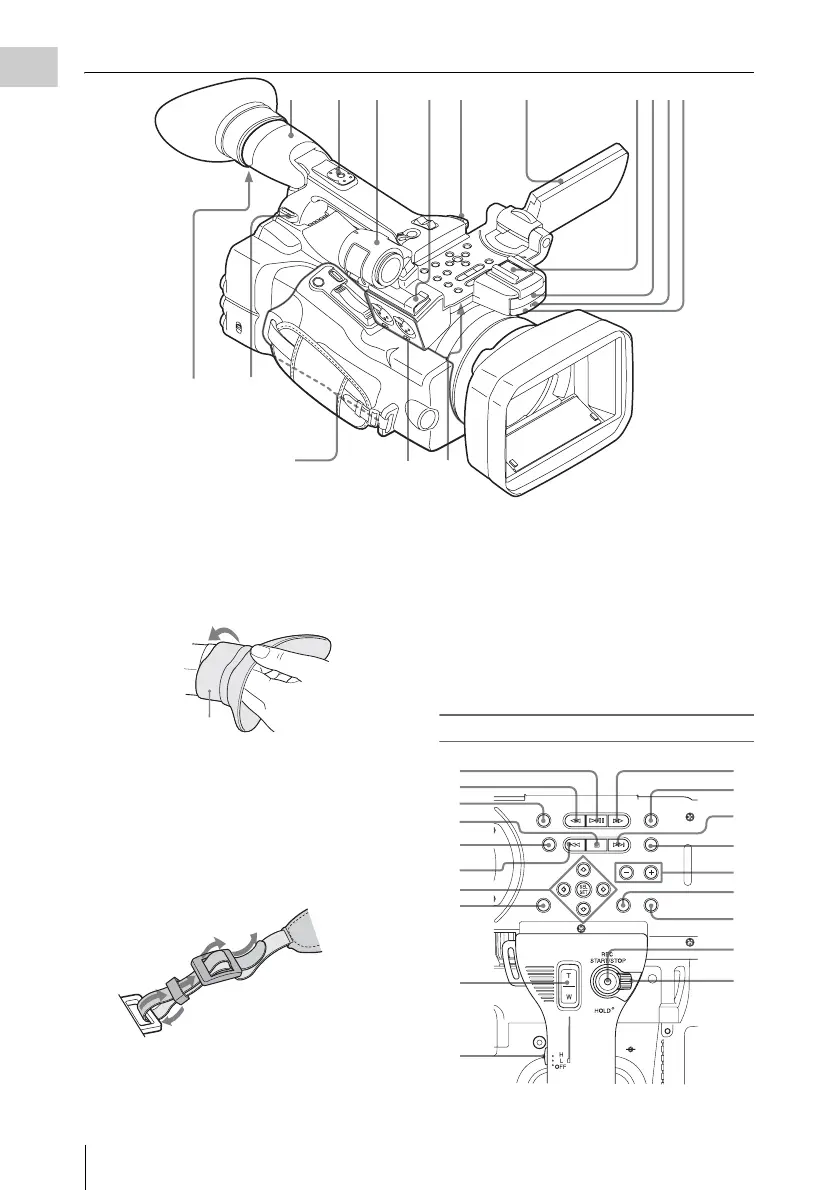

Overview
1. Viewfinder (page 20)
How to attach the EVF large eyecup
Stretch the EVF large eyecup for attaching to
the viewfinder and insert it aligning with the
horizontal groove of the eyecup.
2. Rear accessory shoe (page 24)
3. External microphone holder (page 42)
4. Microphone cable holder (page 29)
5. Hooks for the shoulder strap
Attach the supplied shoulder strap as shown
below.
6. LCD (Liquid Crystal Display) monitor
(page 20)
7. Front accessory shoe
8.Built-in microphone (page 42)
9.REC/TALLY lamp
10. Front IR remote control receptor
11. Built-in speaker (page 62)
12. AUDIO IN CH-1/CH-2 connectors (XLR)
and input selection (LINE/MIC/
MIC+48V) switches (page 42)
13. Eyepiece focusing knob (page 20)
Operation panel on the handle
1.PLAY/PAUSE button (page 61)
Controls on the grip
(page 15)
12 45 6
11
978
12
13
5
310
EVF large eyecup
1
2
3
4
1
2
3
4
5
6
11
10
9
7
8
12
13
14
15
16
17
18
19
