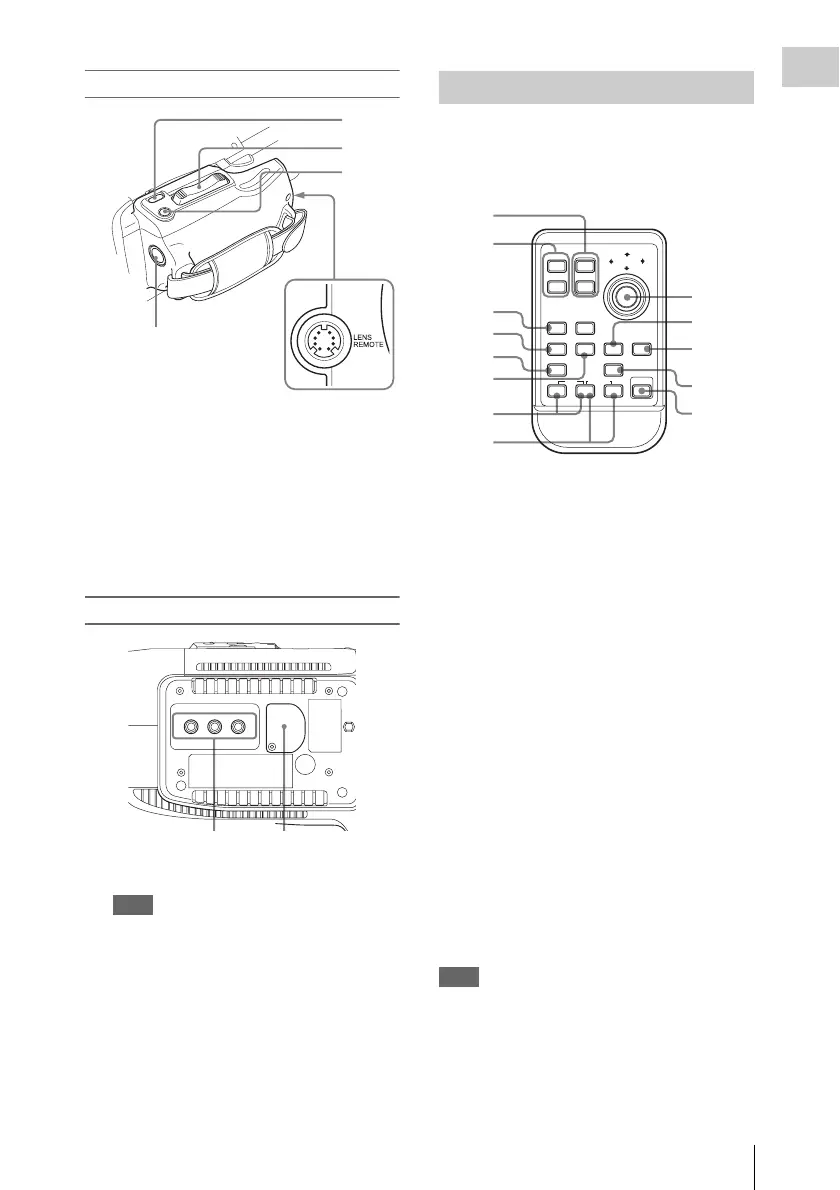

Sony PMW-150 - IR Remote Commander (Supplied)

Part Identification
15
Overview
Controls on the grip
1. REC REVIEW button (page 35)
2. Power zoom lever (page 39)
3. EXPANDED FOCUS button (page 40)
4. LENS REMOTE (lens remote controller)
connector (page 40)
5. REC START (start/stop recording)
button (page 35)
Bottom
1. Tripod receptacles
Note
Check that the size of the hole matches the screw of
the tripod. If they do not match, the camcorder
cannot be attached to the tripod securely, and this
may lead to the physical injury of the camera
operator.
2. Backup battery holder (page 112)
The buttons without remarks can be used in the
same manner as the corresponding buttons on the
camcorder.
1.ZOOM T/W (telephoto/wide-angle)
buttons
2.SHOTMARK 1 and 2 buttons (page 43,
page 62)
3.THUMBNAIL button
4.PREV (previous clip jump) button
5.F REV (fast reverse) button
6.PLAY/PAUSE button
7.REC (record) buttons
Press the z button together with the unmarked
button (safety button) to start recording.
8.REC PAUSE buttons
Press the X button together with the unmarked
button (safety button) to pause recording.
9.PUSH SET button (four-way arrow key)
It functions the same as the SEL/SET button on
the camcorder.
10. NEXT button
11. STOP button
12. F FWD (fast forward) button
13. PUSH AF button
Note
The SUB CLIP button has no function.
