Part Identification
13
Overview
2. F REV (fast reverse) button (page 62)
3. THUMBNAIL button (page 59)
4. STOP/CAM button (page 59)
5. STATUS (status display on/off) button
(page 70)
6. PREV (previous) button
7. Up/down/left/right buttons, SEL/SET
(select/set) button (page 74)
8. MENU (menu display on/off) button (page
74)
9. On-handle ZOOM button (page 39)
10. Zoom speed switch (page 70)
11. F FWD (fast forward) button (page 62)
12. LCD BRIGHT (LCD brightness
adjustment) button (page 20)
13. NEXT (clip directional jump) button
(page 62)
14. DISPLAY button (page 16)
15. VOLUME (monitor volume) buttons
(page 43)
16. CANCEL button
17. DURATION/TC/U-BIT (time data
selection) button (page 41)
18. REC START/STOP button (page 35)
19. REC HOLD lever (page 35)

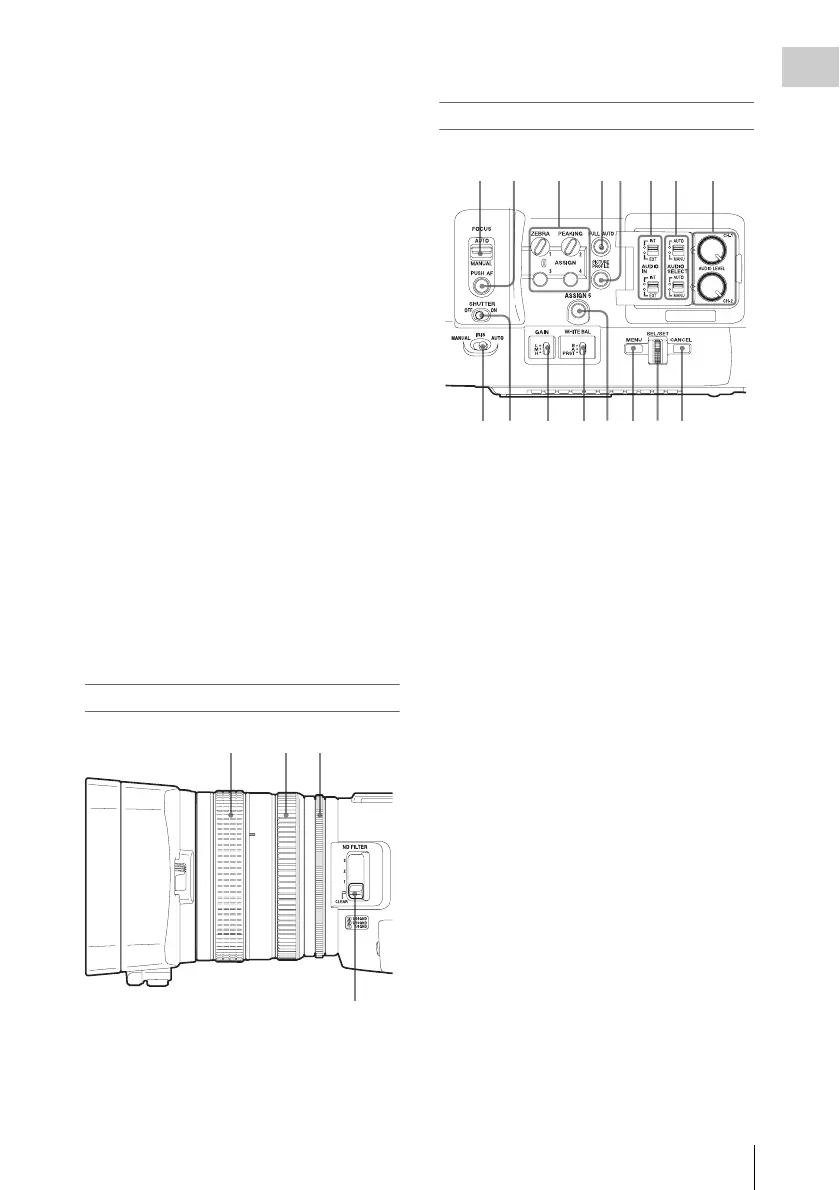

Lens control block
1. Focus ring (page 40)
2. Zoom ring (page 39)
3. Iris ring (page 39)
4.ND FILTER select switch (page 36)
Side operation panel
1.FOCUS (focus adjustment mode) switch
(page 39)
2.PUSH AF (momentary auto focus) button
(page 40)
3.ASSIGN (assignable) 1/2/3/4 buttons (page
45)
ZEBRA is set to ASSIGN 1 and PEAKING
is set to ASSIGN 2 by default.
4.FULL AUTO button and indicator (page
34)
5.PICTURE PROFILE button (page 48)
6.AUDIO IN (audio input selection)
switches (page 42)
7.AUDIO SELECT (audio level control
mode selection) switches (page 42)
8.AUDIO LEVEL CH-1/CH-2 knobs (page
43)
9.IRIS switch (page 39)
10. SHUTTER switch (page 38)
11. GAIN switch (page 38)
12. WHITE BAL (white balance memory)
switch (page 37)
13. ASSIGN (assignable) 5 button (page 45)
14. MENU (menu display on/off) button (page
74)
15. SEL/SET dial (jog dial) (page 74)
123
4
12 3 456
11109
78
12 13 14 15 16
