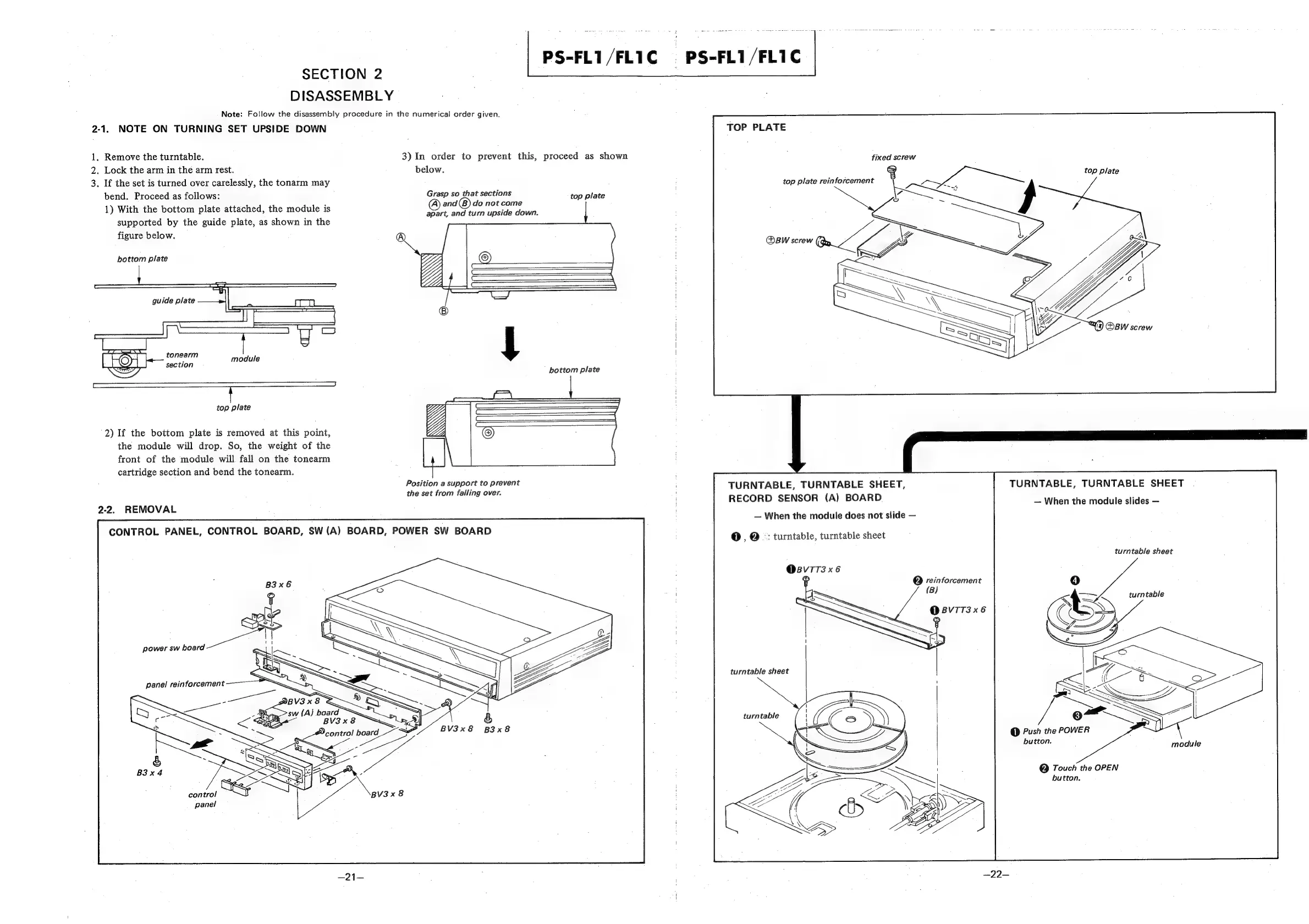

SECTION 2
PS-FL1 /FL1C
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2-1. NOTE ON TURNING SET UPSIDE DOWN
1. Remove the turntable.
2. Lock the arm in the arm rest.
3. If the set is turned over carelessly, the tonarm may
bend. Proceed as follows:
1) With the bottom plate attached, the module is
supported by the guide plate, as shown in the
figure below.
bottom plate
ponent module
section
top plate
2) If the bottom plate is removed at this point,
the module will drop. So, the weight of the
front of the module will fall on the tonearm
cartridge section and bend the tonearm.
2-2. REMOVAL
3) In order to prevent this, proceed as shown
below.
Grasp so that sections top plate
and (B) do not come
apart, and turn upside down.
bottom plate
Position a support to prevent
the set from falling over.
CONTROL PANEL, CONTROL BOARD, SW (A) BOARD, POWER SW BOARD
power sw board
panel reinforcement
: _ control pete a
<n
control OSs =e
panel
™~
BV3x8
BV3x8 B3x8
BV3x 8
-21—
-PS-FL1/FLIC
TOP PLATE
fixed screw
top plate reinforcement
TURNTABLE, TURNTABLE SHEET,
RECORD SENSOR (A) BOARD
— When the module does not slide —
@,@ : turntable, turntable sheet
OsviT3x6
@ reinforcement
turntable sheet
turntable
top plate
TURNTABLE, TURNTABLE SHEET
— When the module slides —
turntable sheet
turntable
@ Push the POWER
button. ; module
@ Touch the OPEN
button.
—22—
