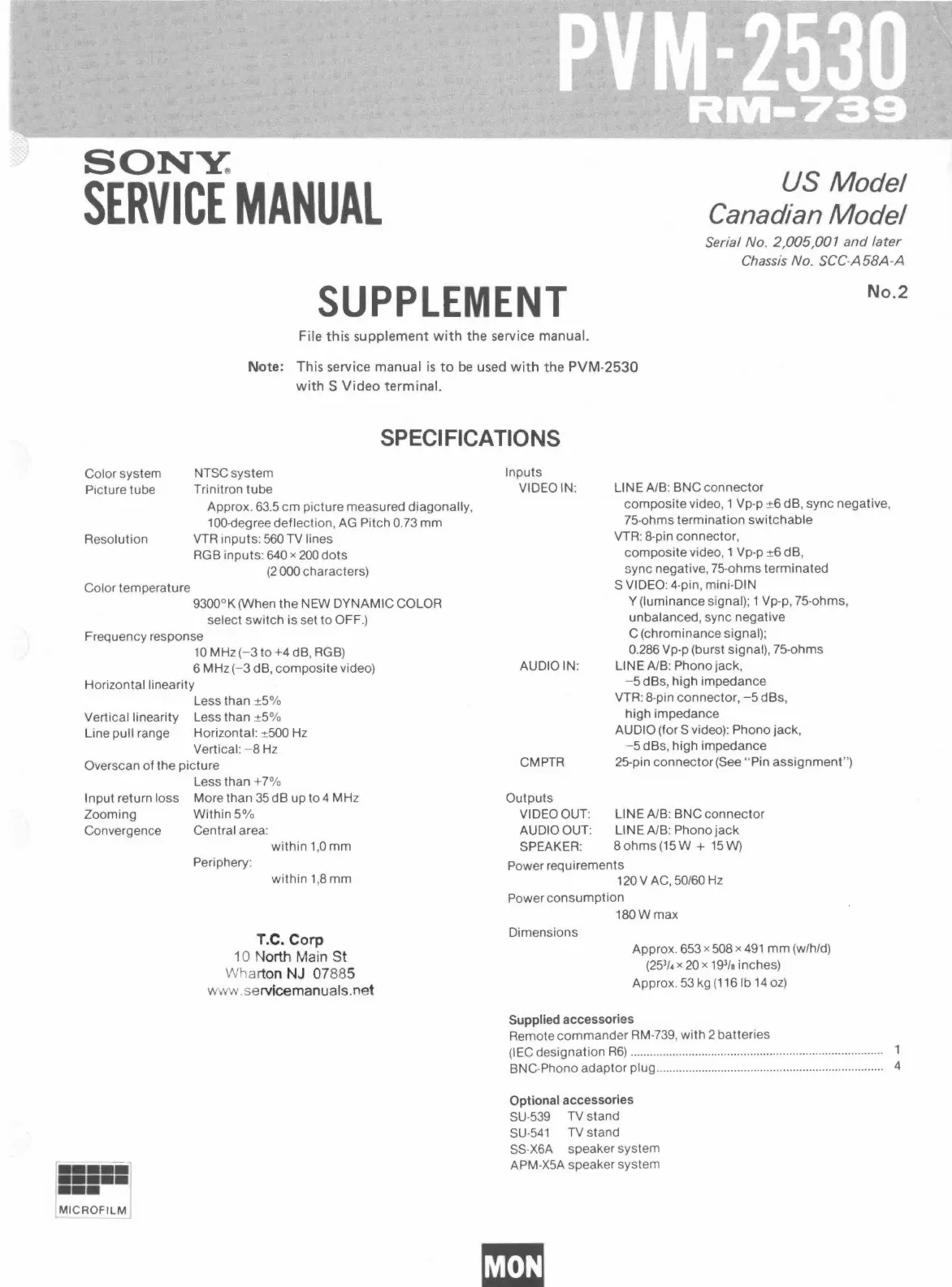

SONY.
SERVICE MANUAL
US Model
Canadian Model
Serial No. 2,005,001 and later
Chassis No. SCC-A58A-A
SUPPLEMENT
No.2
File this supplement with the service manual.
Note: This service manual is to be used with the PVM-2530
with S Video terminal.
SPECIFICATIONS
Color system
Picture tube
Resolution
Color temperature
NTSCsystem
Trinitron tube
Approx. 63.5 cm picture measured diagonally,
100-degree deflection, AG Pitch 0.73 mm
VTR inputs : 560 TV lines
RGB inputs : 640 x 200 dots
(2 000 characters)
9300°K (When the NEW DYNAMIC COLOR
select switch is set to OFF.)
Frequency response
10 MHz(-3 to +4 dB, RGB)
6 MHz (-3 dB, composite video)
Horizontal linearity
Vertical linearity
Line pull range
Less than ±5%
Less than ±5%
Horizontal: ±500 Hz
Vertical: - 8 Hz
Overscan of the picture
Less than +7%
Input return loss More than 35 dB up to 4 MHz
Zooming Within 5%
Convergence Central area:
within 1,0 mm
Periphery:
within 1,8 mm
T.C. Corp
1 O North Main St
Wha rton NJ 07885
www.se rviceman uals.net
Inputs
VIDEO IN:
AUDIO IN:
CMPTR
Outputs
VIDEO OUT:
AUDIO OUT:
SPEAKER:
LINE A/B: BNC connector
composite video, 1 Vp-p ±6 dB, sync negative,
75-ohms termination switchable
VTR: 8-pin connector,
composite video, 1 Vp-p ±6 dB,
sync negative, 75-ohms terminated
S VIDEO: 4-pin, mini-DIN
Y (luminance signal); 1 Vp-p, 75-ohms,
unbalanced, sync negative
C (chrominance signal);
0.286 Vp-p (burst signal) , 75-ohms
LINE A/B: Phono jack,
-5 dBs, high impedance
VTR: 8-pin connector, -5 dBs,
high impedance
AUDIO (for S video): Phono jack,
-5 dBs, high impedance
25-pin connector(See "Pin assignment")
LINE A/B: BNC connector
LINE A/8: Phono jack
8ohms(15W + 15W)
Power requirements
120 V AC, 50/60 Hz
Power consumption
180W max
Dimensions
Approx. 653 x 508 x 491 mm (w/h/d)
(25¼ x 20 x 19
3
/e inches)
Approx. 53 kg (116 lb 14 oz)
Supplied accessories
Remote commander RM-739, with 2 batteries
(IEC designation R6) ............................................................................. .
BNC-Phono adaptor plug ...................................................................... 4
Optional accessories
SU-539 TV stand
SU-541 TV stand
SS-X6A speaker system
APM-X5A speaker system
