Sony RCD-W3 User Manual

5

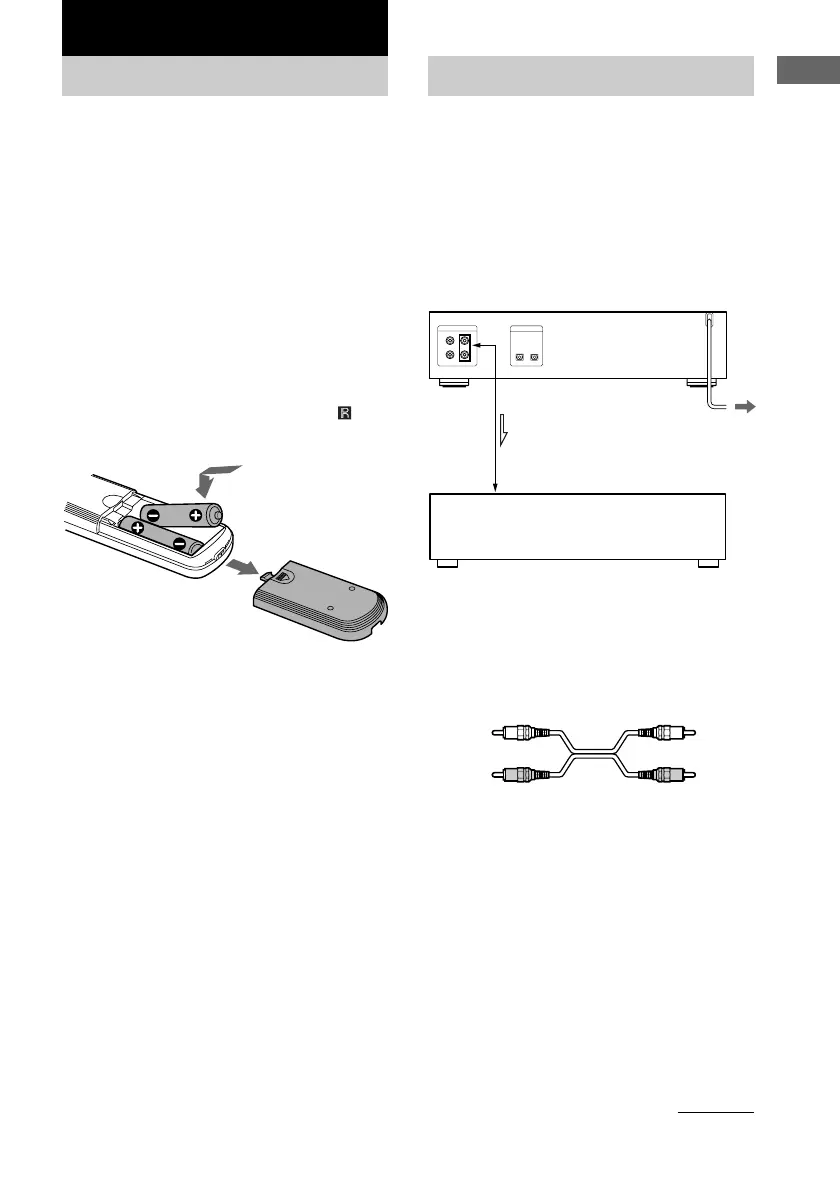

Getting Started Started
Unpacking
Check that you received the following items:
• Audio connecting cord (2)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2).
Inserting batteries into the
remote
You can control the recorder using the supplied
remote.
Insert two size AA (R6) batteries by matching
the 3 and # ends on the batteries to the
markings inside the compartment. When using
the remote, point it at the remote sensor
on
the recorder.
Getting Started
Notes
• Do not leave the remote near an extremely hot or
humid place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote
casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from
the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you don’t use the remote for an extended period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
Hooking Up the System
Overview
This section describes how to hook up the CD
recorder to an amplifier. Be sure to turn off the
power of each component before making the
connections.
Use the audio connecting cord (supplied) (2).
The cord you need to hook up your
recorder
• Audio connecting cords (supplied) (2)
Red
(R)
White
(L)
White
(L)
Red
(R)
ll
ll
l: Signal flow
continued
RCD-W3
Amplifier
CD IN

Sony RCD-W3 Specifications

Power

power requirements	U.S.A. and Canada 120 V AC, 60 Hz
power requirements other countries	110 – 240 V AC, 50/60 Hz
power consumption	20 W

Audio Specifications

frequency response	20 Hz – 20, 000 Hz (±0.5 dB)
signal-to-noise ratio	More than 100 dB
dynamic range	More than 95 dB

Inputs

analog in impedance	47 kilohms
rated input	330 mVrms
minimum input	125 mVrms

Outputs

analog out rated output	2 Vrms (at 50 kilohms)
load impedance	over 10 kilohms
phones	28 mW, 32 ohms

Weight and Dimensions

dimensions	430 × 108 × 368 mm
mass	4.6 kg
