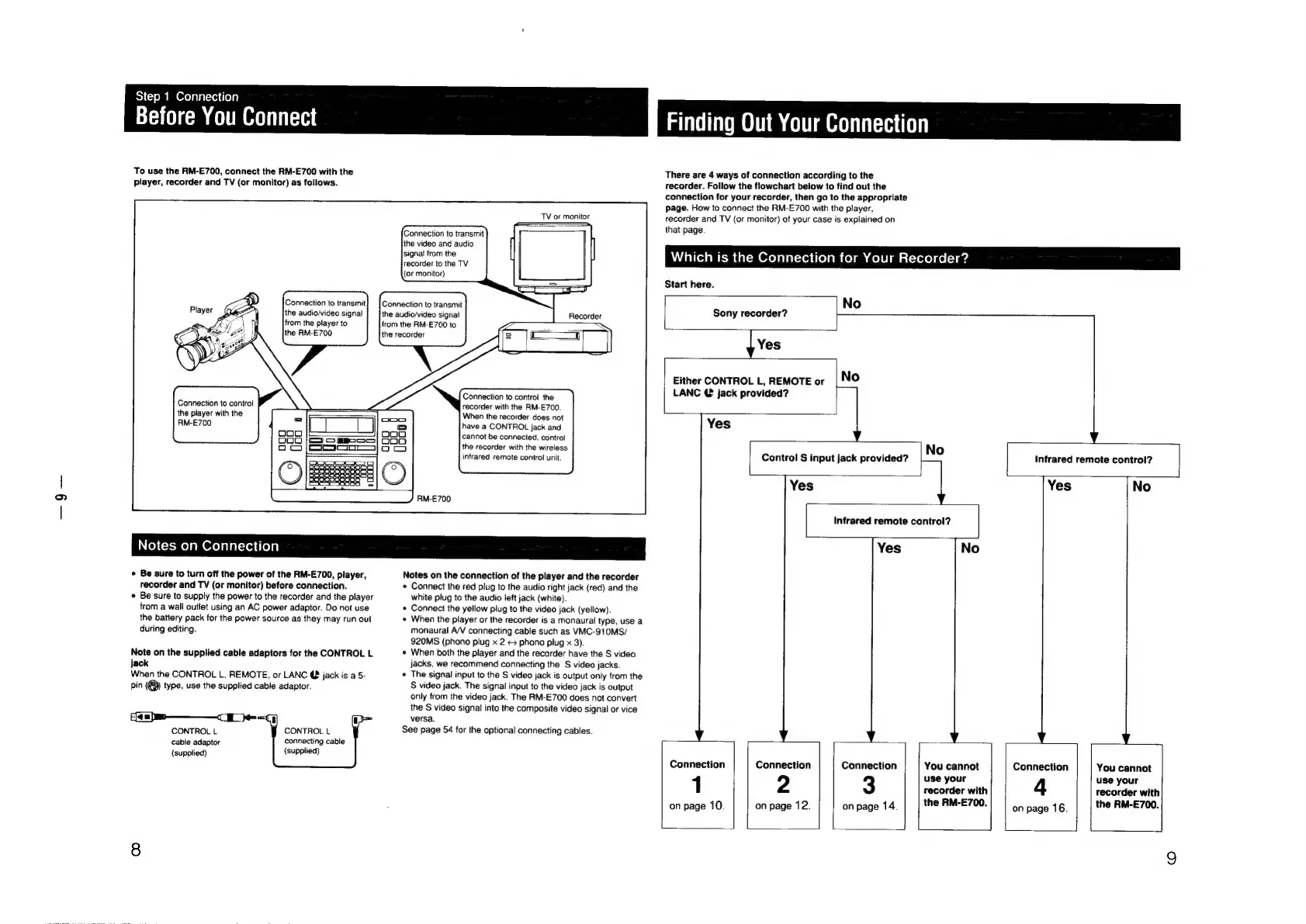

Before You Connect
To use the RM-E700, connect the RM-E700 with the
player, recorder and TV (or monitor) as follows.
‘Connection to transmit
the audio/video signal
Connection to control
the player with the
RM-E700
Notes on Connection
TV or monitor
‘Connection to transmit
the video and audio
signal from the
recorder to the TV
(or monitor)
Connection to transmit
the audio/video signal
from the RM-E700 to
the recorder
Connection to control the
recorder with the RM-E700.
When the recorder does not
have a CONTROL jack and
cannot be connected, control
the recorder with the wireless
infrared remote control unit.
* Be sure to turn off the power of the RM-E700, player,
recorder and TV (or monitor) before connection.
Be sure to supply the power to the recorder and the player
from a wall outlet using an AC power adaptor. Do not use
the battery pack for the power source as they may run out
during editing.
Note on the supplied cable adaptors for the CONTROL L
jack
When the CONTROL L, REMOTE, or LANC @ jack is a 5-
pin (@) type, use the supplied cable adaptor.
CONTROL L CONTROL L
cable adaptor connecting cable
(supplied) (supplied)
Notes on the connection of the player and the recorder
¢ Connect the red plug to the audio right jack (red) and the
white plug to the audio left jack (white).
* Connect the yellow plug to the video jack (yellow).
« When the player or the recorder is a monaural type, use a
monaural A/V connecting cable such as VMC-910MS/
920MS (phono plug x 2 <> phono plug x 3).
« When both the player and the recorder have the S video
jacks, we recommend connecting the S video jacks.
The signal input to the S video jack is output only from the
S video jack. The signal input to the video jack is output
only from the video jack. The RM-E700 does not convert
the S video signal into the composite video signal or vice
versa.
See page 54 for the optional connecting cables.
Finding Out Your Connection
There are 4 ways of connection according to the
recorder. Follow the flowchart below to find out the
connection for your recorder, then go to the appropriate
Page. How to connect the RM-E700 with the player,
recorder and TV (or monitor) of your case is explained on
that page.
A atKed am owe dat-MOxelalat-voadlolam cola Aelel miat:lele) ce l-\ ara
Start here.
No
Sony recorder?
| Yes
Either CONTROL L, REMOTE or
LANC @ jack provided?
Yes
Control S input jack provided? Infrared remote control?
Yes Yes No
Infrared remote control? |
Yes No
Connection
Connection
Connection
You
cannot
Connection
You
cannot
1
2
3
use
your
use
your
recorder with 4 recorder with
on page 10. on page 12. on page 14. the RM-E700. on page 16. the RM-E700.
