Sony SA-CT770 - HDMI Board; Bracket (Power) Block

HT-CT770
18

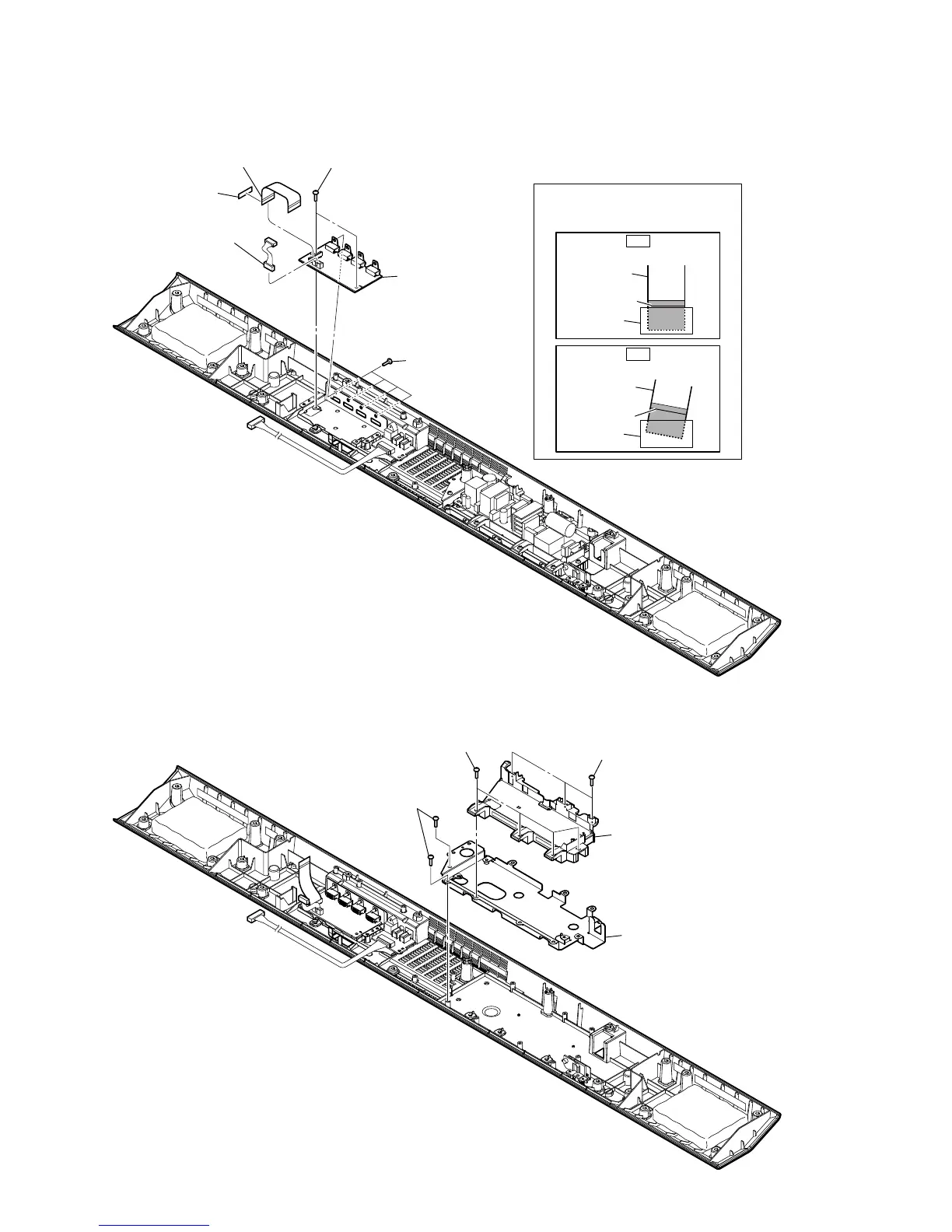

2-17. HDMI BOARD
2-18. BRACKET (POWER) BLOCK
2 flexible flat cable (19 core)
(FFC1)
(CN3009)
3 connector
(CN3005)
1 cushion (G)
4 two screws
(BVTT3 u 6)
5 four screws
(B3 u 5)
6 HDMI board
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
Note:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
OK
NG
1 three screws
(BVTP3 u 10)
3 two screws
(BVTP3 u 10)
2 insulation (power) block
4 bracket (power) block
1 four screws
(BVTP3 u 10)
