HT-CT770
19

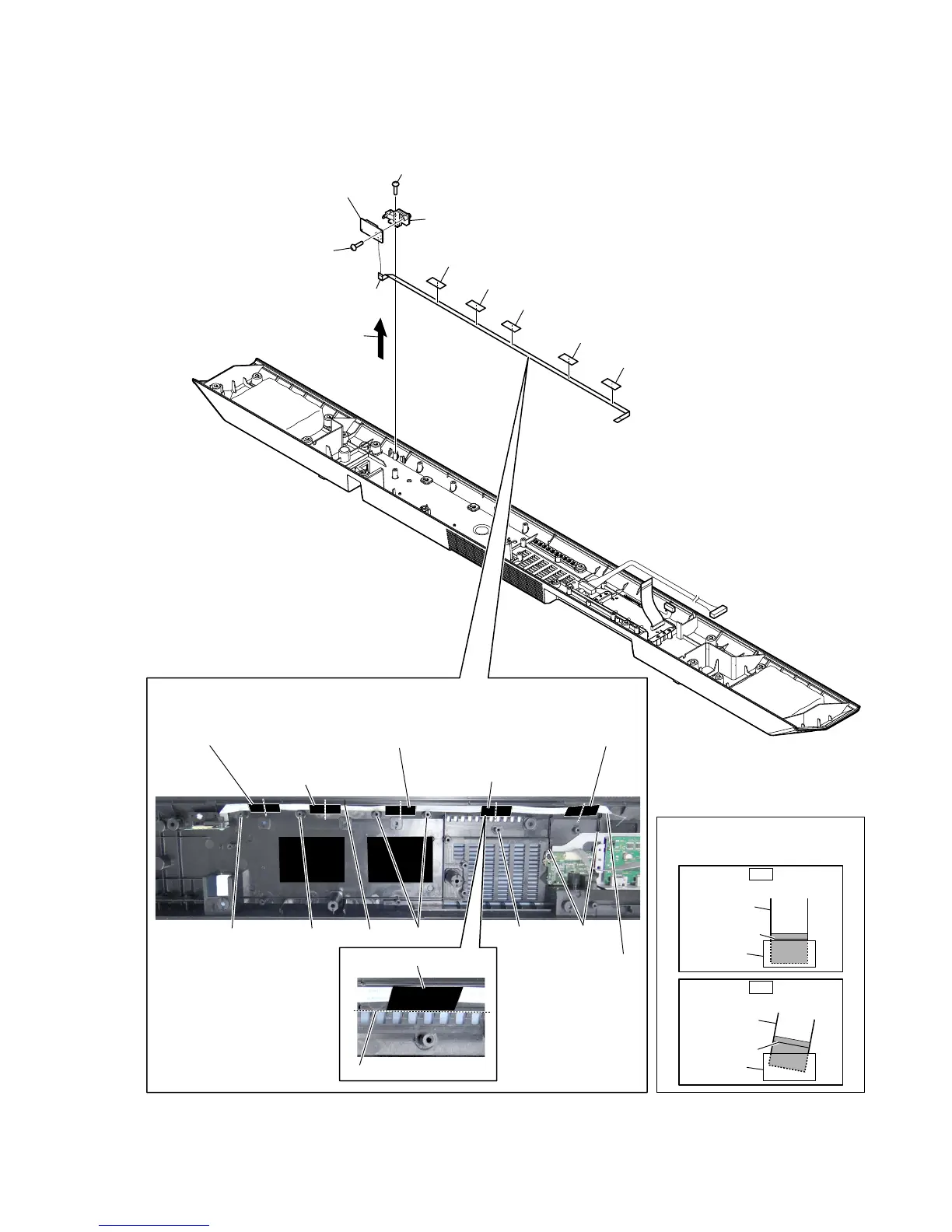

2-19. BLUETOOTH MODULE (BT1)
1 cushion (D)
4 flexible flat cable (14 core)
(FFC2)
1 cushion (D)
1 cushion (D)
1 cushion (D)
1 cushion (D)
2 screw
(BVTP3 u 8)
5 screw
(BVTP2.6)
6 holder (BT)
– Rear view –
3 Remove the bluetooth module block
in the direction of the arrow.
7 bluetooth module
(BT1)
rib
cushion (D)
(Center of the screw hole
and the screw hole)
cushion (D)
(Center of the screw
hole and the rib)
cushion (D)
(Center of the screw hole
and the screw hole)
screw hole
screw hole
cushion (D)
(Center of the screw hole)
– Top view –
screw holescrew hole
Flexible flat cable (14 core) (FFC2) setting
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
Note:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
OK
NG
rib
cushion (D)
(Center of the rib
and the rib)
cushion (D)
guide line
flexible flat cable (14 core)
(FFC2)
