SA-WCT770
14

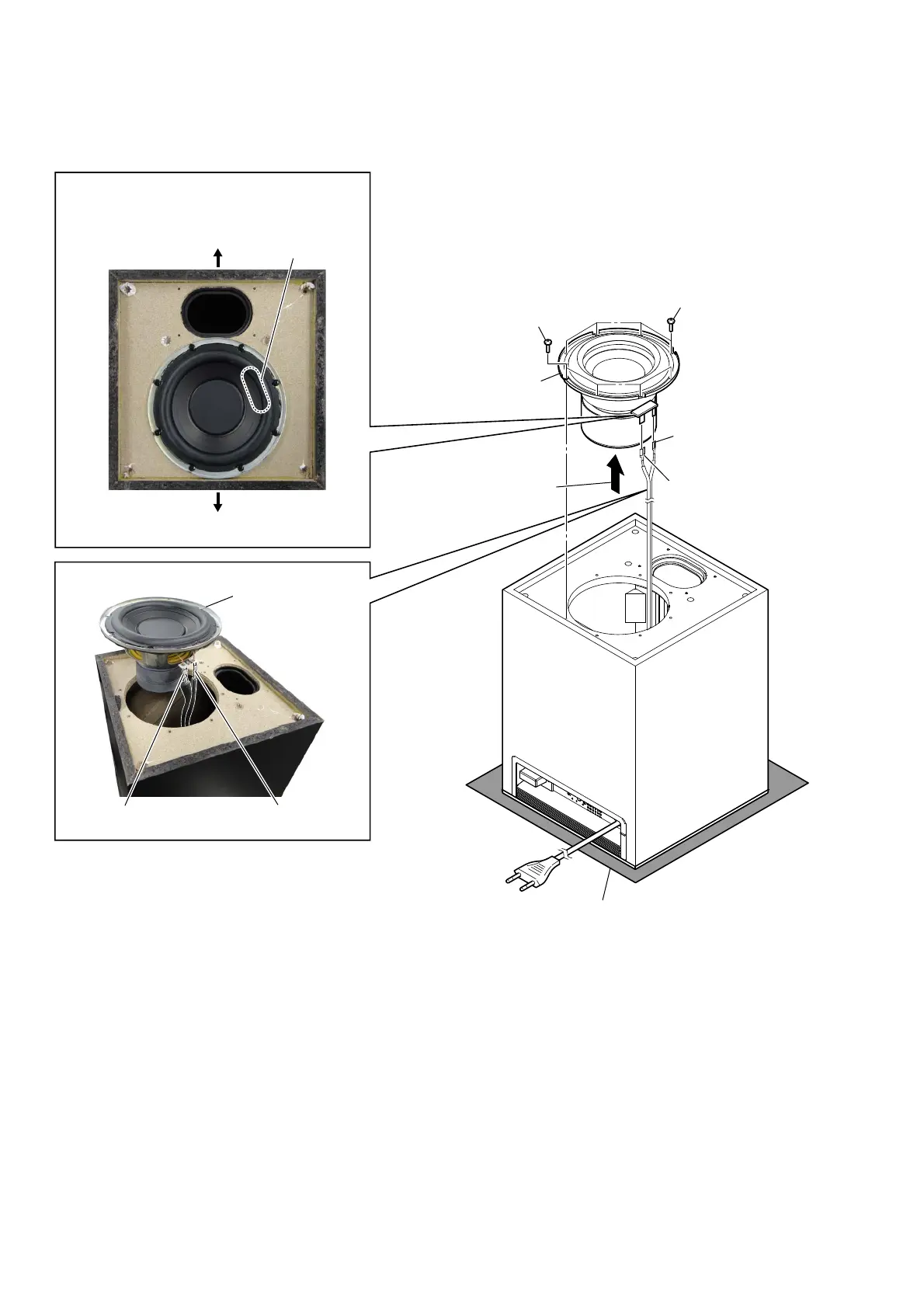

2-13. LOUDSPEAKER (16 cm) (SP1)
4 loudspeaker (16 cm)
(SP1)
loudspeaker (16 cm)
(SP1)
1 four screws
(BVTP4 u 14)
1 four screws
(BVTP4 u 14)
2 Remove the loudspeaker
(16 cm) (SP1) in the
direction of an arrow.
3 terminal (red)
(wide side)
3 terminal (black)
(narrow side)
Note 1:
Please spread a sheet under
a unit not to injure top panel.
– Rear bottom view –
red
(wide side)
black
(narrow side)
:ire VettiQJ
rear side
front side
terminals position
Note 2:
When installing the loudspeaker (16 cm) (SP1),
make sure that there is a position of the speaker
terminal to the position shown in the figure below.
– Bottom view –
