13
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1

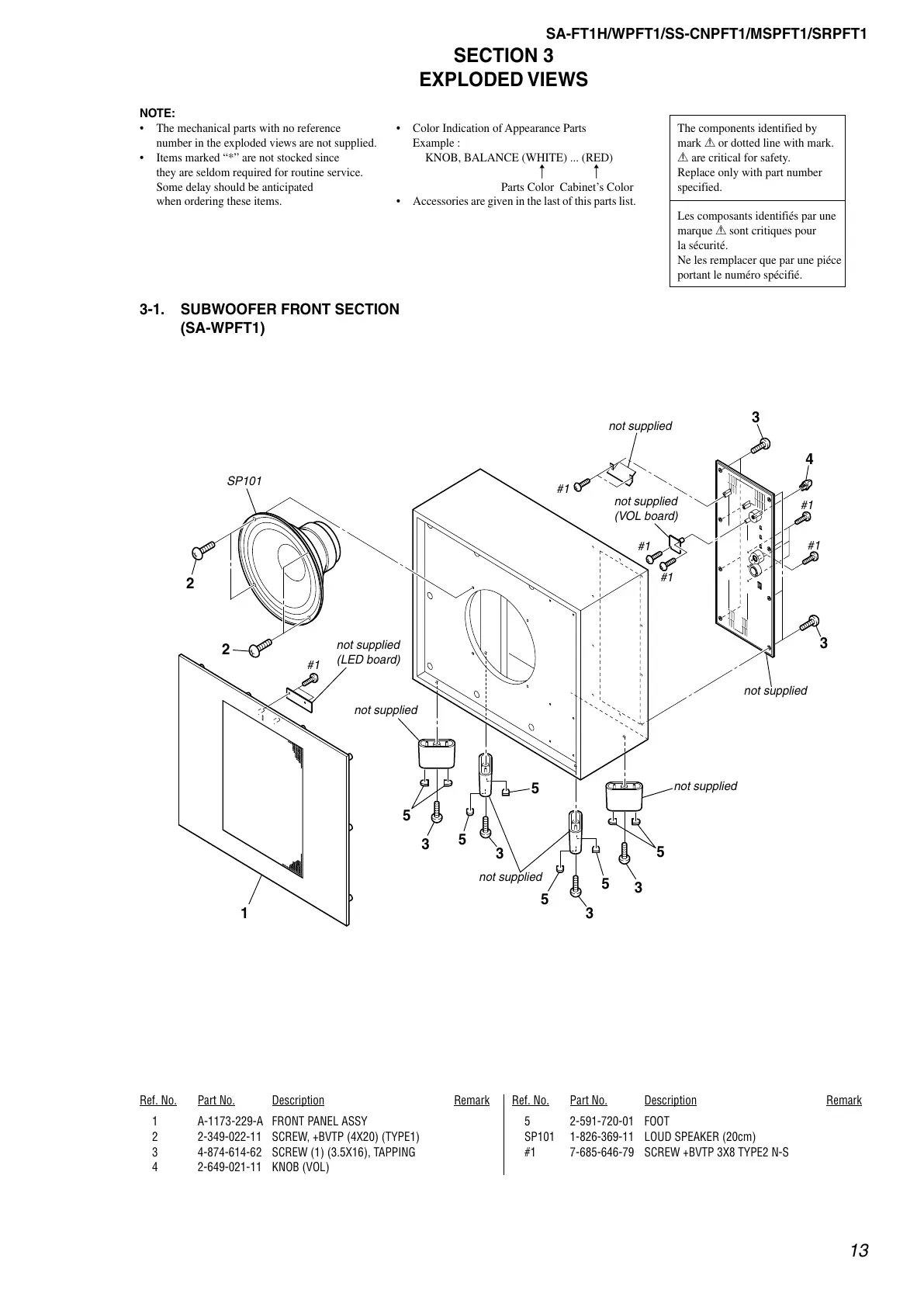

SECTION 3
EXPLODED VIEWS
1 A-1173-229-A FRONT PANEL ASSY
22-349-022-11 SCREW, +BVTP (4X20) (TYPE1)
34-874-614-62 SCREW (1) (3.5X16), TAPPING
42-649-021-11 KNOB (VOL)
5 2-591-720-01 FOOT
SP101 1-826-369-11 LOUD SPEAKER (20cm)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
3-1. SUBWOOFER FRONT SECTION
(SA-WPFT1)
RR
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
2
3
3
3
3
3
3
5
5
5
5
5
5
2
4
not supplied
not supplied
not supplied
not supplied
(LED board)
not supplied
(VOL board)
not supplied
not supplied
SP101
#1
#1
#1
#1
#1
#1
To Next Page
