SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
101 A-1173-217-A OVERALL ASSY
102 2-670-947-01 GRILLE
103 1-780-294-11 SCREW TERMINAL (T205)
104 1-780-295-11 SCREW TERMINAL (T110)
105 X-2050-863-1 TWEETER ASSY
106 2-677-720-01 COVER, STAND
107 2-670-949-01 PLASTIC WASHER
108 4-977-358-01 CUSHION
109 2-670-948-01 STAND
SP201 1-825-913-11 SPEAKER (2.5cm)
SP202 1-826-370-11 LOUD SPEAKER (3X12cm)
SP203 1-826-370-11 LOUD SPEAKER (3X12cm)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

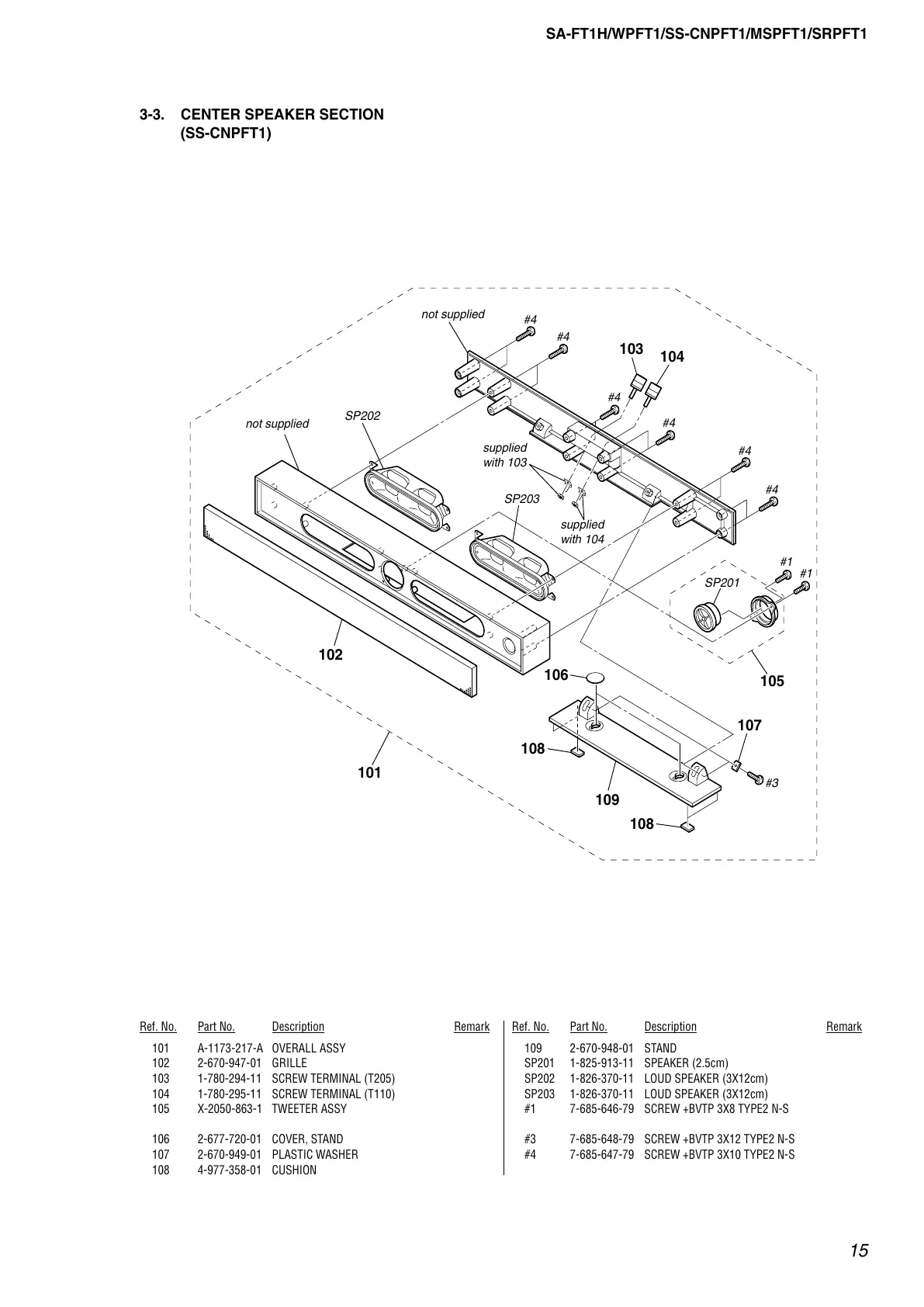

3-3. CENTER SPEAKER SECTION
(SS-CNPFT1)
103
104
105
106
108
108
109
107
101
102
#1
#3
#4
#4
#4
#4
#4
#4
#1
not supplied
not supplied
supplied
with 103
supplied
with 104
SP201
SP202
SP203
