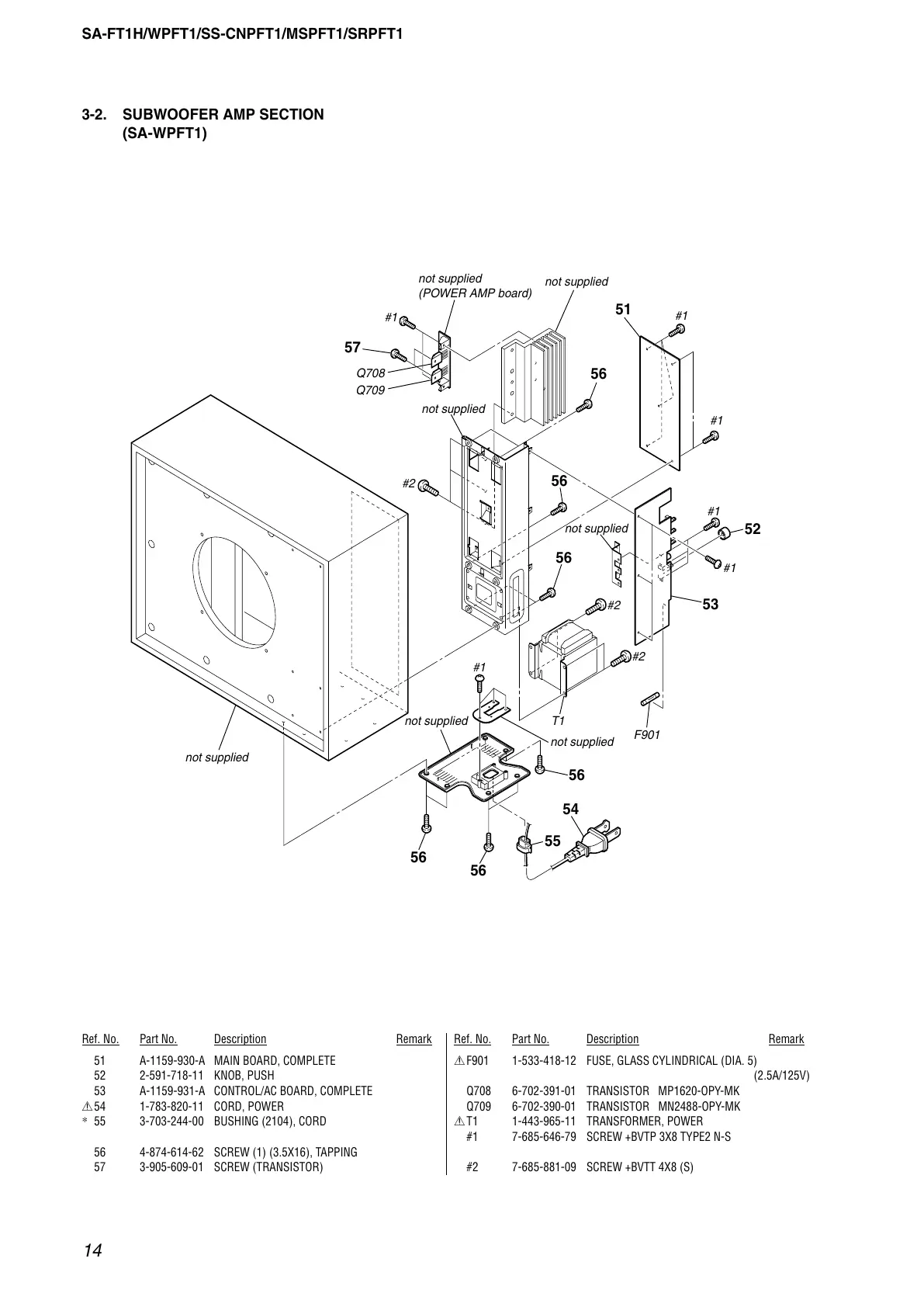

Sony SA-WPFT1 - Subwoofer Amplifier Section Exploded View

14
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
51 A-1159-930-A MAIN BOARD, COMPLETE
52 2-591-718-11 KNOB, PUSH
53 A-1159-931-A CONTROL/AC BOARD, COMPLETE
054 1-783-820-11 CORD, POWER
* 55 3-703-244-00 BUSHING (2104), CORD
56 4-874-614-62 SCREW (1) (3.5X16), TAPPING
57 3-905-609-01 SCREW (TRANSISTOR)
0 F901 1-533-418-12 FUSE, GLASS CYLINDRICAL (DIA. 5)
(2.5A/125V)
Q708 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q709 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 T1 1-443-965-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
3-2. SUBWOOFER AMP SECTION
(SA-WPFT1)
51
52
53
54
56
56
56
56
56
56
57
55
not supplied
not supplied
(POWER AMP board)
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#1
#1
#1
#1
#1
#1
#2
F901
T1
Q708
Q709
#2
