Sony SA-WPFT1 - Front;Surround Speaker Section Exploded View

16
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

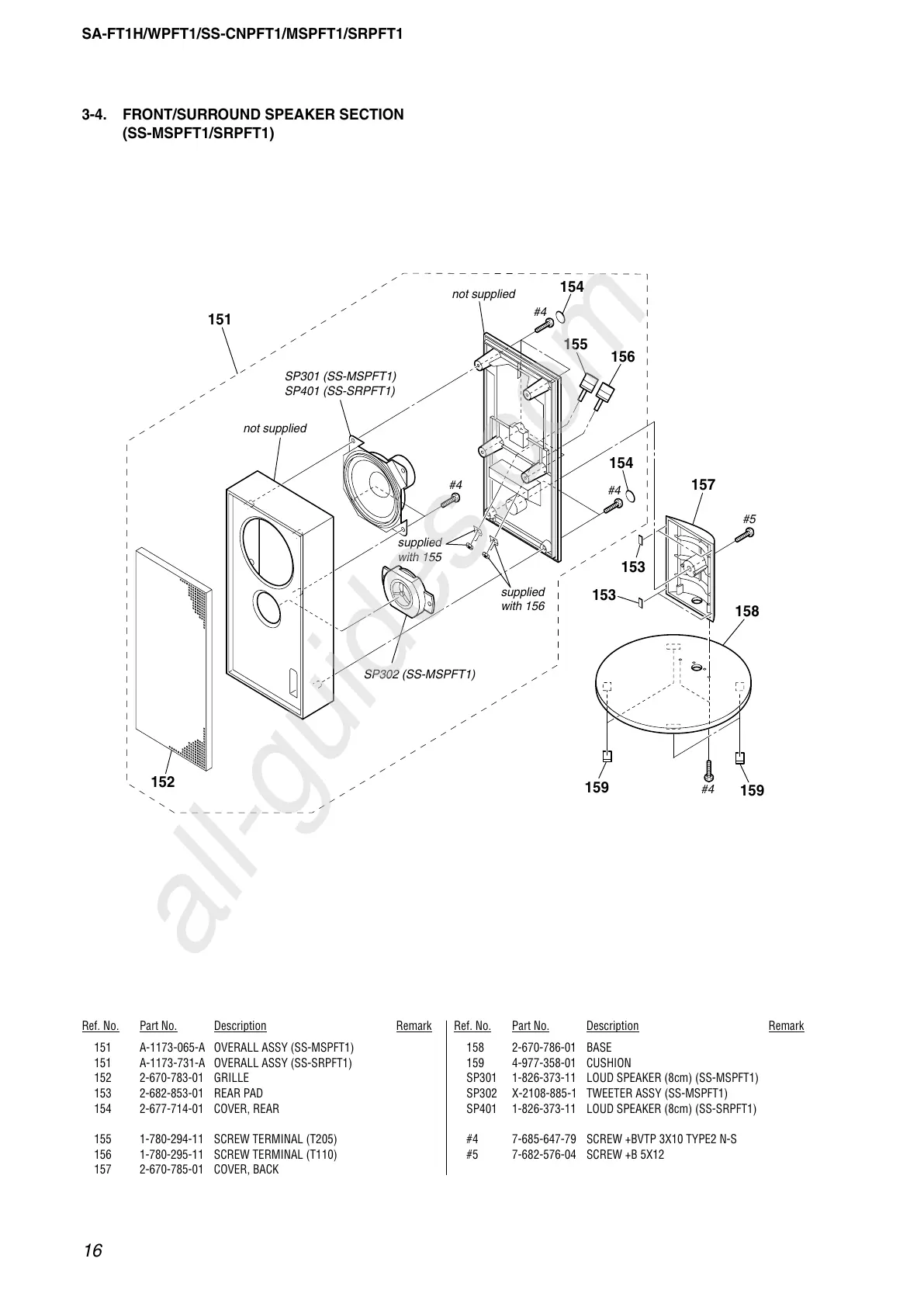

3-4. FRONT/SURROUND SPEAKER SECTION
(SS-MSPFT1/SRPFT1)
151 A-1173-065-A OVERALL ASSY (SS-MSPFT1)
151 A-1173-731-A OVERALL ASSY (SS-SRPFT1)
152 2-670-783-01 GRILLE
153 2-682-853-01 REAR PAD
154 2-677-714-01 COVER, REAR
155 1-780-294-11 SCREW TERMINAL (T205)
156 1-780-295-11 SCREW TERMINAL (T110)
157 2-670-785-01 COVER, BACK
158 2-670-786-01 BASE
159 4-977-358-01 CUSHION
SP301 1-826-373-11 LOUD SPEAKER (8cm) (SS-MSPFT1)
SP302 X-2108-885-1 TWEETER ASSY (SS-MSPFT1)
SP401 1-826-373-11 LOUD SPEAKER (8cm) (SS-SRPFT1)
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#5 7-682-576-04 SCREW +B 5X12
152
151
154
154
153
153
155
156
157
158
159
159
not supplied
supplied
with 155
supplied
with 156
not supplied
SP301 (SS-MSPFT1)
SP401 (SS-SRPFT1)
SP302 (SS-MSPFT1)
#4
#4
#4
#4
#5
