Sony SA-WPFT1 - Back Panel Section Disassembly; Amplifier (AMP) Section Disassembly

5
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1

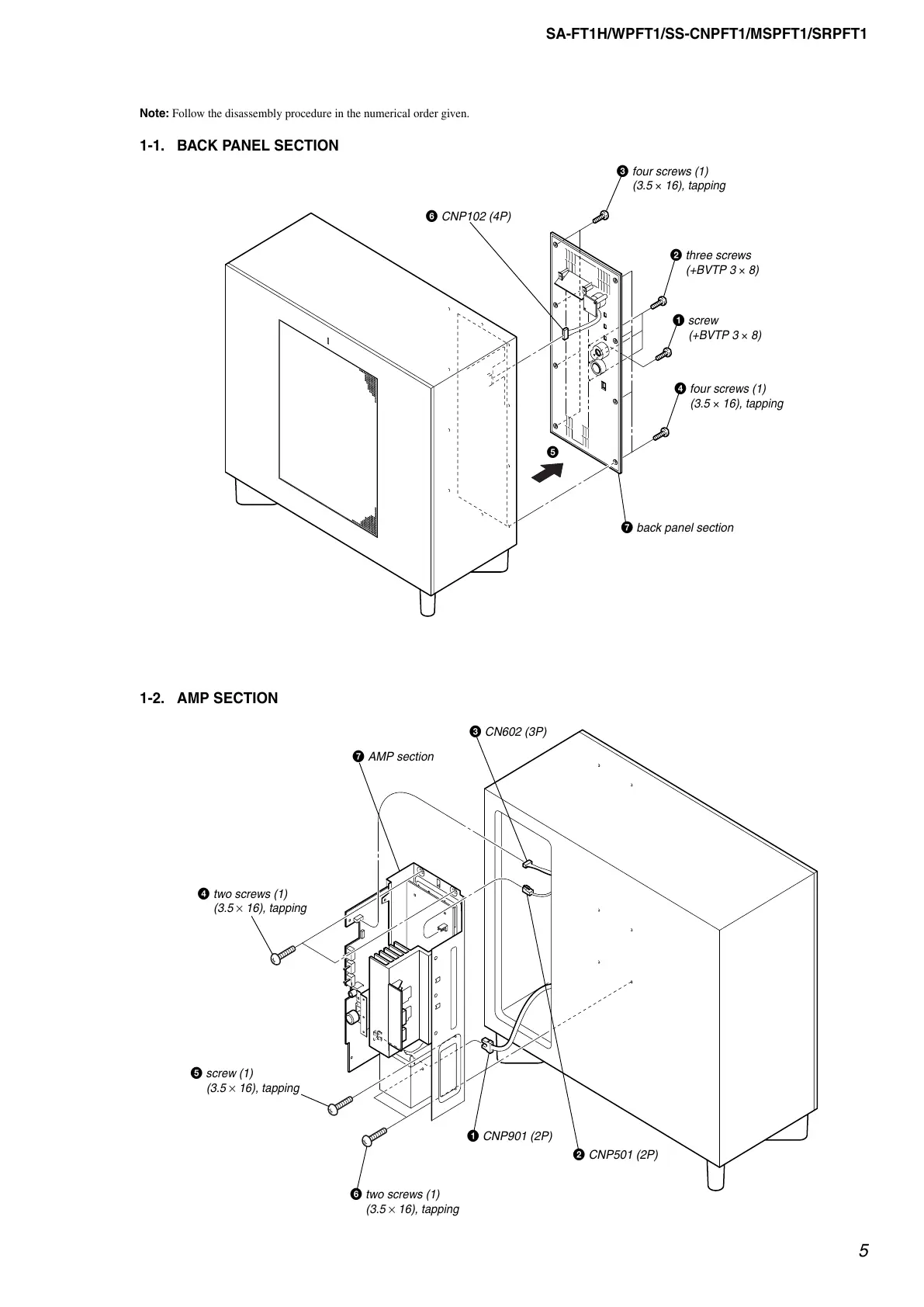

1-2. AMP SECTION
Note: Follow the disassembly procedure in the numerical order given.
1-1. BACK PANEL SECTION
1 screw
(+BVTP 3 × 8)
2 three screws
(+BVTP 3 × 8)
3 four screws (1)
(3.5 × 16), tapping
4 four screws (1)
(3.5 × 16), tappin
g
7 back panel section
5
6 CNP102 (4P)
4 two screws (1)
(3.5 × 16), tapping
7 AMP section
5 screw (1)
(3.5 × 16), tapping
6 two screws (1)
(3.5 × 16), tapping
1 CNP901 (2P)
2 CNP501 (2P)
3 CN602 (3P)
