17
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1

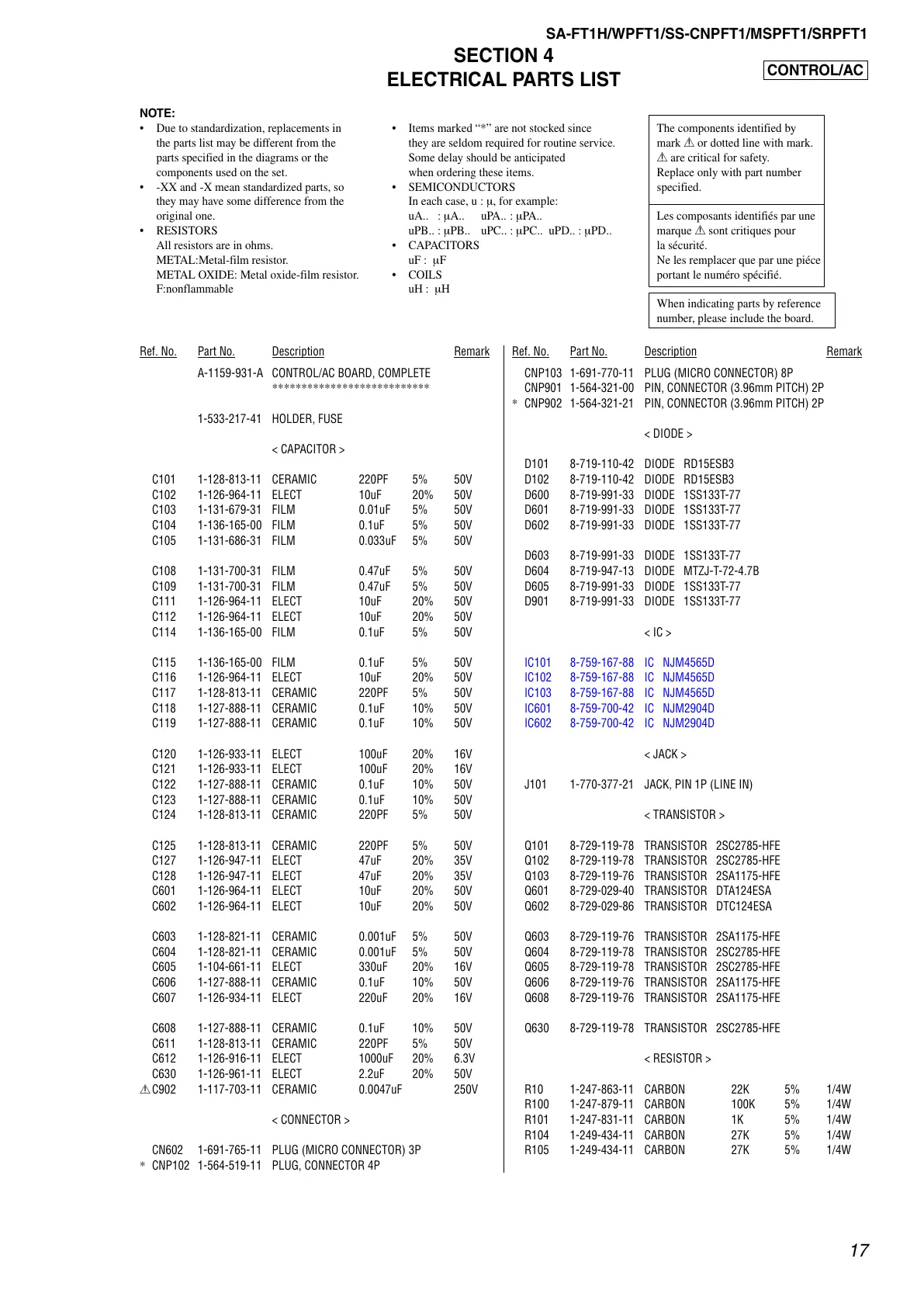

SECTION 4
ELECTRICAL PARTS LIST
A-1159-931-A CONTROL/AC BOARD, COMPLETE
***************************
1-533-217-41 HOLDER, FUSE
< CAPACITOR >
C101 1-128-813-11 CERAMIC 220PF 5% 50V
C102 1-126-964-11 ELECT 10uF 20% 50V
C103 1-131-679-31 FILM 0.01uF 5% 50V
C104 1-136-165-00 FILM 0.1uF 5% 50V
C105 1-131-686-31 FILM 0.033uF 5% 50V
C108 1-131-700-31 FILM 0.47uF 5% 50V
C109 1-131-700-31 FILM 0.47uF 5% 50V
C111 1-126-964-11 ELECT 10uF 20% 50V
C112 1-126-964-11 ELECT 10uF 20% 50V
C114 1-136-165-00 FILM 0.1uF 5% 50V
C115 1-136-165-00 FILM 0.1uF 5% 50V
C116 1-126-964-11 ELECT 10uF 20% 50V
C117 1-128-813-11 CERAMIC 220PF 5% 50V
C118 1-127-888-11 CERAMIC 0.1uF 10% 50V
C119 1-127-888-11 CERAMIC 0.1uF 10% 50V
C120 1-126-933-11 ELECT 100uF 20% 16V
C121 1-126-933-11 ELECT 100uF 20% 16V
C122 1-127-888-11 CERAMIC 0.1uF 10% 50V
C123 1-127-888-11 CERAMIC 0.1uF 10% 50V
C124 1-128-813-11 CERAMIC 220PF 5% 50V
C125 1-128-813-11 CERAMIC 220PF 5% 50V
C127 1-126-947-11 ELECT 47uF 20% 35V
C128 1-126-947-11 ELECT 47uF 20% 35V
C601 1-126-964-11 ELECT 10uF 20% 50V
C602 1-126-964-11 ELECT 10uF 20% 50V
C603 1-128-821-11 CERAMIC 0.001uF 5% 50V
C604 1-128-821-11 CERAMIC 0.001uF 5% 50V
C605 1-104-661-11 ELECT 330uF 20% 16V
C606 1-127-888-11 CERAMIC 0.1uF 10% 50V
C607 1-126-934-11 ELECT 220uF 20% 16V
C608 1-127-888-11 CERAMIC 0.1uF 10% 50V
C611 1-128-813-11 CERAMIC 220PF 5% 50V
C612 1-126-916-11 ELECT 1000uF 20% 6.3V
C630 1-126-961-11 ELECT 2.2uF 20% 50V
0 C902 1-117-703-11 CERAMIC 0.0047uF 250V
< CONNECTOR >
CN602 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
* CNP102 1-564-519-11 PLUG, CONNECTOR 4P
CNP103 1-691-770-11 PLUG (MICRO CONNECTOR) 8P
CNP901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
* CNP902 1-564-321-21 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D101 8-719-110-42 DIODE RD15ESB3
D102 8-719-110-42 DIODE RD15ESB3
D600 8-719-991-33 DIODE 1SS133T-77
D601 8-719-991-33 DIODE 1SS133T-77
D602 8-719-991-33 DIODE 1SS133T-77
D603 8-719-991-33 DIODE 1SS133T-77
D604 8-719-947-13 DIODE MTZJ-T-72-4.7B
D605 8-719-991-33 DIODE 1SS133T-77
D901 8-719-991-33 DIODE 1SS133T-77
< IC >
IC101 8-759-167-88 IC NJM4565D
IC102 8-759-167-88 IC NJM4565D
IC103 8-759-167-88 IC NJM4565D
IC601 8-759-700-42 IC NJM2904D
IC602 8-759-700-42 IC NJM2904D
< JACK >
J101 1-770-377-21 JACK, PIN 1P (LINE IN)
< TRANSISTOR >
Q101 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q102 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q103 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q601 8-729-029-40 TRANSISTOR DTA124ESA
Q602 8-729-029-86 TRANSISTOR DTC124ESA
Q603 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q604 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q605 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q606 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q608 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q630 8-729-119-78 TRANSISTOR 2SC2785-HFE
< RESISTOR >
R10 1-247-863-11 CARBON 22K 5% 1/4W
R100 1-247-879-11 CARBON 100K 5% 1/4W
R101 1-247-831-11 CARBON 1K 5% 1/4W
R104 1-249-434-11 CARBON 27K 5% 1/4W
R105 1-249-434-11 CARBON 27K 5% 1/4W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
CONTROL/AC
