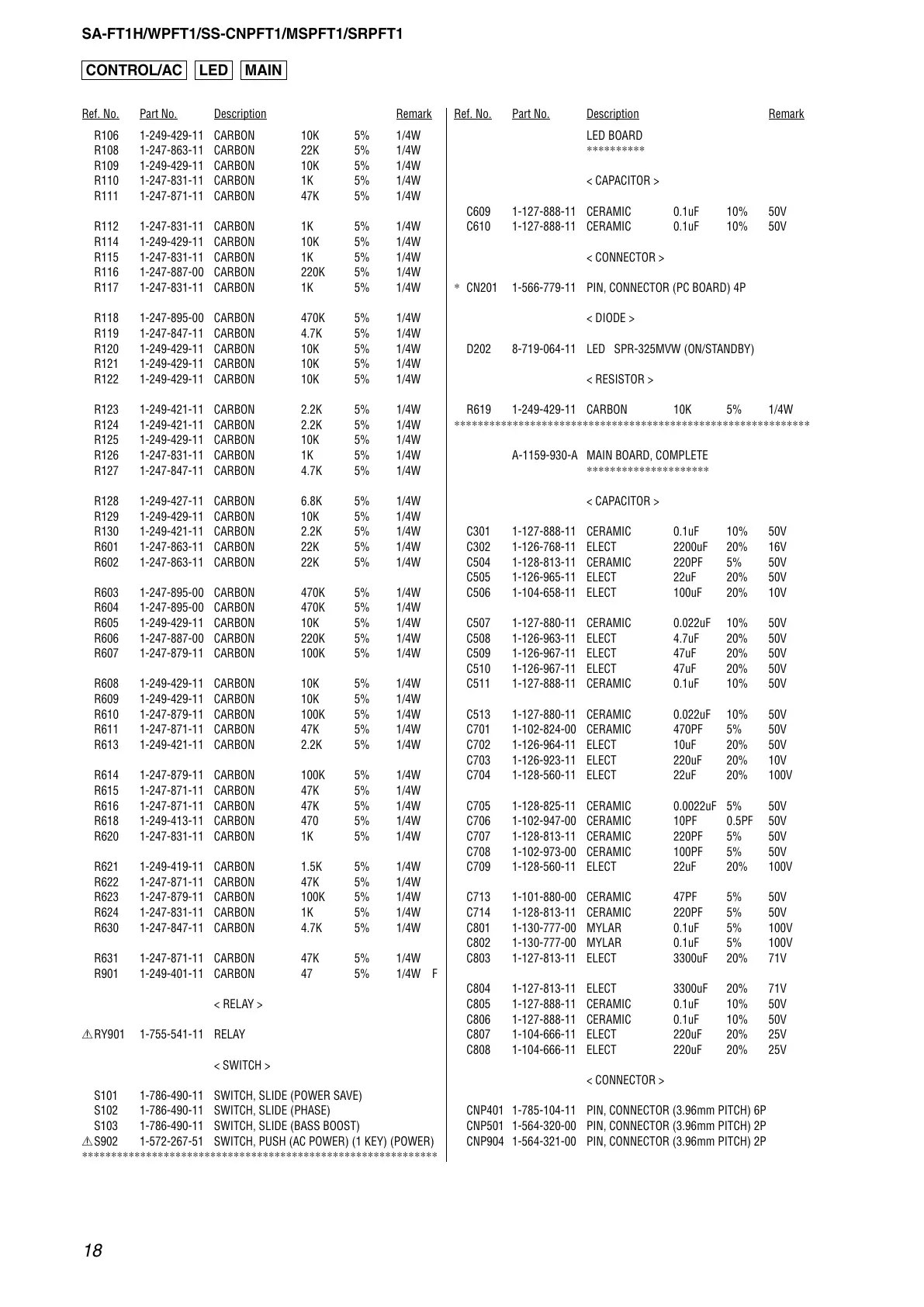

18
SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
R106 1-249-429-11 CARBON 10K 5% 1/4W
R108 1-247-863-11 CARBON 22K 5% 1/4W
R109 1-249-429-11 CARBON 10K 5% 1/4W
R110 1-247-831-11 CARBON 1K 5% 1/4W
R111 1-247-871-11 CARBON 47K 5% 1/4W
R112 1-247-831-11 CARBON 1K 5% 1/4W
R114 1-249-429-11 CARBON 10K 5% 1/4W
R115 1-247-831-11 CARBON 1K 5% 1/4W
R116 1-247-887-00 CARBON 220K 5% 1/4W
R117 1-247-831-11 CARBON 1K 5% 1/4W
R118 1-247-895-00 CARBON 470K 5% 1/4W
R119 1-247-847-11 CARBON 4.7K 5% 1/4W
R120 1-249-429-11 CARBON 10K 5% 1/4W
R121 1-249-429-11 CARBON 10K 5% 1/4W
R122 1-249-429-11 CARBON 10K 5% 1/4W
R123 1-249-421-11 CARBON 2.2K 5% 1/4W
R124 1-249-421-11 CARBON 2.2K 5% 1/4W
R125 1-249-429-11 CARBON 10K 5% 1/4W
R126 1-247-831-11 CARBON 1K 5% 1/4W
R127 1-247-847-11 CARBON 4.7K 5% 1/4W
R128 1-249-427-11 CARBON 6.8K 5% 1/4W
R129 1-249-429-11 CARBON 10K 5% 1/4W
R130 1-249-421-11 CARBON 2.2K 5% 1/4W
R601 1-247-863-11 CARBON 22K 5% 1/4W
R602 1-247-863-11 CARBON 22K 5% 1/4W
R603 1-247-895-00 CARBON 470K 5% 1/4W
R604 1-247-895-00 CARBON 470K 5% 1/4W
R605 1-249-429-11 CARBON 10K 5% 1/4W
R606 1-247-887-00 CARBON 220K 5% 1/4W
R607 1-247-879-11 CARBON 100K 5% 1/4W
R608 1-249-429-11 CARBON 10K 5% 1/4W
R609 1-249-429-11 CARBON 10K 5% 1/4W
R610 1-247-879-11 CARBON 100K 5% 1/4W
R611 1-247-871-11 CARBON 47K 5% 1/4W
R613 1-249-421-11 CARBON 2.2K 5% 1/4W
R614 1-247-879-11 CARBON 100K 5% 1/4W
R615 1-247-871-11 CARBON 47K 5% 1/4W
R616 1-247-871-11 CARBON 47K 5% 1/4W
R618 1-249-413-11 CARBON 470 5% 1/4W
R620 1-247-831-11 CARBON 1K 5% 1/4W
R621 1-249-419-11 CARBON 1.5K 5% 1/4W
R622 1-247-871-11 CARBON 47K 5% 1/4W
R623 1-247-879-11 CARBON 100K 5% 1/4W
R624 1-247-831-11 CARBON 1K 5% 1/4W
R630 1-247-847-11 CARBON 4.7K 5% 1/4W
R631 1-247-871-11 CARBON 47K 5% 1/4W
R901 1-249-401-11 CARBON 47 5% 1/4W F
< RELAY >
0RY901 1-755-541-11 RELAY
< SWITCH >
S101 1-786-490-11 SWITCH, SLIDE (POWER SAVE)
S102 1-786-490-11 SWITCH, SLIDE (PHASE)
S103 1-786-490-11 SWITCH, SLIDE (BASS BOOST)
0S902 1-572-267-51 SWITCH, PUSH (AC POWER) (1 KEY) (POWER)
*************************************************************
LED BOARD
**********
< CAPACITOR >
C609 1-127-888-11 CERAMIC 0.1uF 10% 50V
C610 1-127-888-11 CERAMIC 0.1uF 10% 50V
< CONNECTOR >
* CN201 1-566-779-11 PIN, CONNECTOR (PC BOARD) 4P
< DIODE >
D202 8-719-064-11 LED SPR-325MVW (ON/STANDBY)
< RESISTOR >
R619 1-249-429-11 CARBON 10K 5% 1/4W
*************************************************************
A-1159-930-A MAIN BOARD, COMPLETE
*********************
< CAPACITOR >
C301 1-127-888-11 CERAMIC 0.1uF 10% 50V
C302 1-126-768-11 ELECT 2200uF 20% 16V
C504 1-128-813-11 CERAMIC 220PF 5% 50V
C505 1-126-965-11 ELECT 22uF 20% 50V
C506 1-104-658-11 ELECT 100uF 20% 10V
C507 1-127-880-11 CERAMIC 0.022uF 10% 50V
C508 1-126-963-11 ELECT 4.7uF 20% 50V
C509 1-126-967-11 ELECT 47uF 20% 50V
C510 1-126-967-11 ELECT 47uF 20% 50V
C511 1-127-888-11 CERAMIC 0.1uF 10% 50V
C513 1-127-880-11 CERAMIC 0.022uF 10% 50V
C701 1-102-824-00 CERAMIC 470PF 5% 50V
C702 1-126-964-11 ELECT 10uF 20% 50V
C703 1-126-923-11 ELECT 220uF 20% 10V
C704 1-128-560-11 ELECT 22uF 20% 100V
C705 1-128-825-11 CERAMIC 0.0022uF 5% 50V
C706 1-102-947-00 CERAMIC 10PF 0.5PF 50V
C707 1-128-813-11 CERAMIC 220PF 5% 50V
C708 1-102-973-00 CERAMIC 100PF 5% 50V
C709 1-128-560-11 ELECT 22uF 20% 100V
C713 1-101-880-00 CERAMIC 47PF 5% 50V
C714 1-128-813-11 CERAMIC 220PF 5% 50V
C801 1-130-777-00 MYLAR 0.1uF 5% 100V
C802 1-130-777-00 MYLAR 0.1uF 5% 100V
C803 1-127-813-11 ELECT 3300uF 20% 71V
C804 1-127-813-11 ELECT 3300uF 20% 71V
C805 1-127-888-11 CERAMIC 0.1uF 10% 50V
C806 1-127-888-11 CERAMIC 0.1uF 10% 50V
C807 1-104-666-11 ELECT 220uF 20% 25V
C808 1-104-666-11 ELECT 220uF 20% 25V
< CONNECTOR >
CNP401 1-785-104-11 PIN, CONNECTOR (3.96mm PITCH) 6P
CNP501 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
CNP904 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAINCONTROL/AC LED
