19

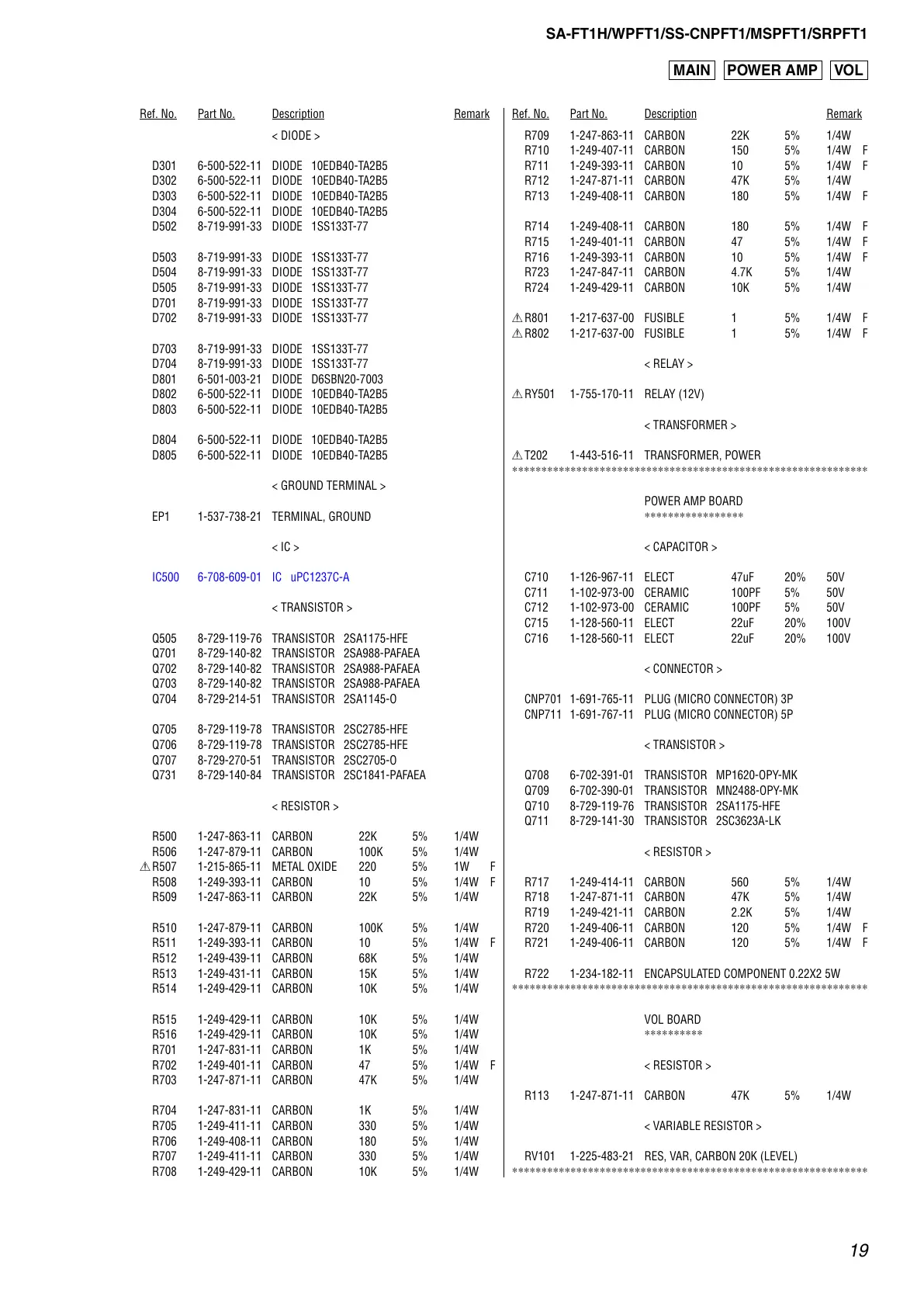

SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
< DIODE >
D301 6-500-522-11 DIODE 10EDB40-TA2B5
D302 6-500-522-11 DIODE 10EDB40-TA2B5
D303 6-500-522-11 DIODE 10EDB40-TA2B5
D304 6-500-522-11 DIODE 10EDB40-TA2B5
D502 8-719-991-33 DIODE 1SS133T-77
D503 8-719-991-33 DIODE 1SS133T-77
D504 8-719-991-33 DIODE 1SS133T-77
D505 8-719-991-33 DIODE 1SS133T-77
D701 8-719-991-33 DIODE 1SS133T-77
D702 8-719-991-33 DIODE 1SS133T-77
D703 8-719-991-33 DIODE 1SS133T-77
D704 8-719-991-33 DIODE 1SS133T-77
D801 6-501-003-21 DIODE D6SBN20-7003
D802 6-500-522-11 DIODE 10EDB40-TA2B5
D803 6-500-522-11 DIODE 10EDB40-TA2B5
D804 6-500-522-11 DIODE 10EDB40-TA2B5
D805 6-500-522-11 DIODE 10EDB40-TA2B5
< GROUND TERMINAL >
EP1 1-537-738-21 TERMINAL, GROUND
< IC >
IC500 6-708-609-01 IC uPC1237C-A
< TRANSISTOR >
Q505 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q701 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q702 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q703 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q704 8-729-214-51 TRANSISTOR 2SA1145-O
Q705 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q706 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q707 8-729-270-51 TRANSISTOR 2SC2705-O
Q731 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
< RESISTOR >
R500 1-247-863-11 CARBON 22K 5% 1/4W
R506 1-247-879-11 CARBON 100K 5% 1/4W
0 R507 1-215-865-11 METAL OXIDE 220 5% 1W F
R508 1-249-393-11 CARBON 10 5% 1/4W F
R509 1-247-863-11 CARBON 22K 5% 1/4W
R510 1-247-879-11 CARBON 100K 5% 1/4W
R511 1-249-393-11 CARBON 10 5% 1/4W F
R512 1-249-439-11 CARBON 68K 5% 1/4W
R513 1-249-431-11 CARBON 15K 5% 1/4W
R514 1-249-429-11 CARBON 10K 5% 1/4W
R515 1-249-429-11 CARBON 10K 5% 1/4W
R516 1-249-429-11 CARBON 10K 5% 1/4W
R701 1-247-831-11 CARBON 1K 5% 1/4W
R702 1-249-401-11 CARBON 47 5% 1/4W F
R703 1-247-871-11 CARBON 47K 5% 1/4W
R704 1-247-831-11 CARBON 1K 5% 1/4W
R705 1-249-411-11 CARBON 330 5% 1/4W
R706 1-249-408-11 CARBON 180 5% 1/4W
R707 1-249-411-11 CARBON 330 5% 1/4W
R708 1-249-429-11 CARBON 10K 5% 1/4W
R709 1-247-863-11 CARBON 22K 5% 1/4W
R710 1-249-407-11 CARBON 150 5% 1/4W F
R711 1-249-393-11 CARBON 10 5% 1/4W F
R712 1-247-871-11 CARBON 47K 5% 1/4W
R713 1-249-408-11 CARBON 180 5% 1/4W F
R714 1-249-408-11 CARBON 180 5% 1/4W F
R715 1-249-401-11 CARBON 47 5% 1/4W F
R716 1-249-393-11 CARBON 10 5% 1/4W F
R723 1-247-847-11 CARBON 4.7K 5% 1/4W
R724 1-249-429-11 CARBON 10K 5% 1/4W
0 R801 1-217-637-00 FUSIBLE 1 5% 1/4W F
0 R802 1-217-637-00 FUSIBLE 1 5% 1/4W F
< RELAY >
0 RY501 1-755-170-11 RELAY (12V)
< TRANSFORMER >
0 T202 1-443-516-11 TRANSFORMER, POWER
*************************************************************
POWER AMP BOARD
*****************
< CAPACITOR >
C710 1-126-967-11 ELECT 47uF 20% 50V
C711 1-102-973-00 CERAMIC 100PF 5% 50V
C712 1-102-973-00 CERAMIC 100PF 5% 50V
C715 1-128-560-11 ELECT 22uF 20% 100V
C716 1-128-560-11 ELECT 22uF 20% 100V
< CONNECTOR >
CNP701 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
CNP711 1-691-767-11 PLUG (MICRO CONNECTOR) 5P
< TRANSISTOR >
Q708 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q709 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q710 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q711 8-729-141-30 TRANSISTOR 2SC3623A-LK
< RESISTOR >
R717 1-249-414-11 CARBON 560 5% 1/4W
R718 1-247-871-11 CARBON 47K 5% 1/4W
R719 1-249-421-11 CARBON 2.2K 5% 1/4W
R720 1-249-406-11 CARBON 120 5% 1/4W F
R721 1-249-406-11 CARBON 120 5% 1/4W F
R722 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2 5W
*************************************************************
VOL BOARD
**********
< RESISTOR >
R113 1-247-871-11 CARBON 47K 5% 1/4W
< VARIABLE RESISTOR >
RV101 1-225-483-21 RES, VAR, CARBON 20K (LEVEL)
*************************************************************
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN VOLPOWER AMP
