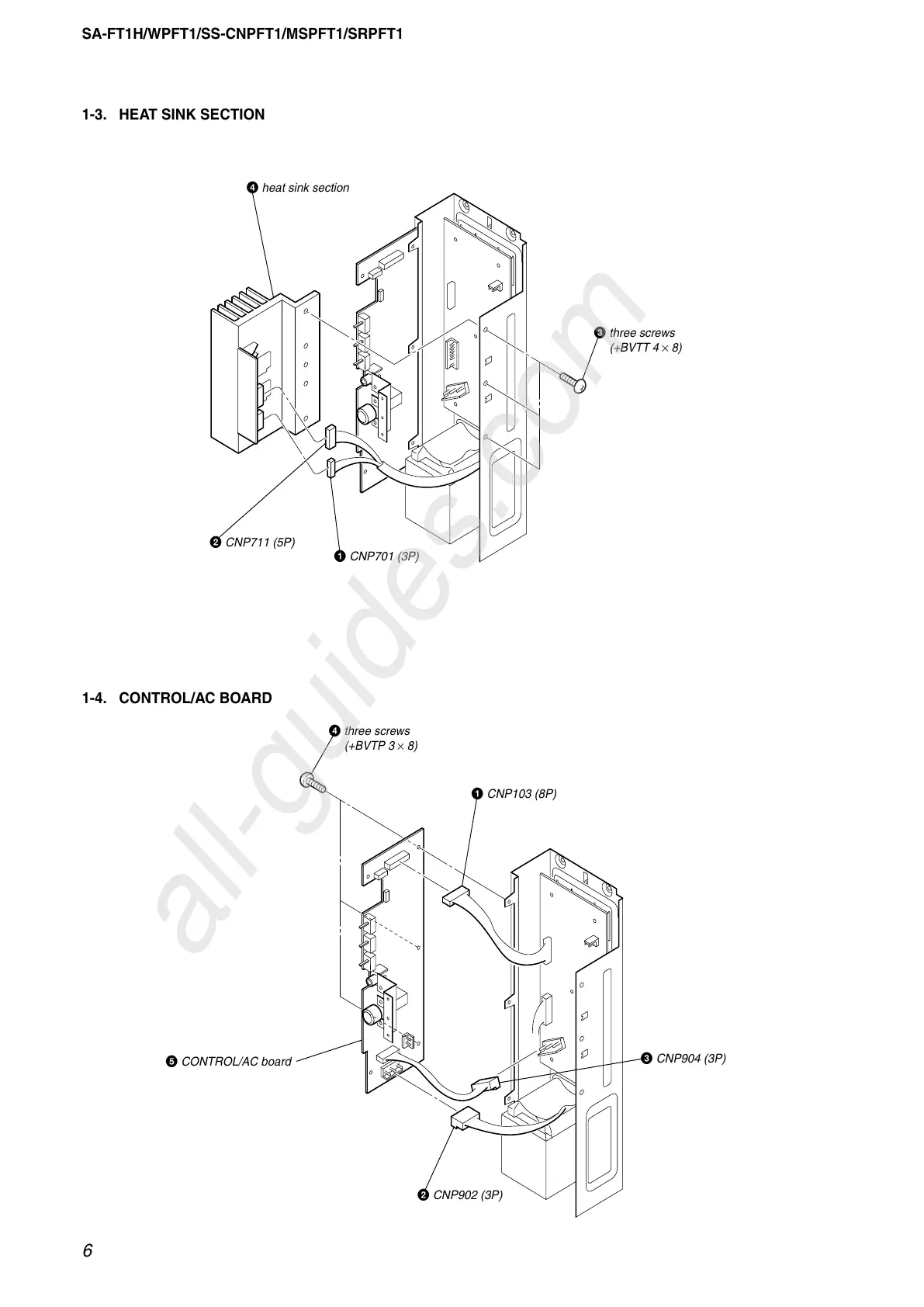

SA-FT1H/WPFT1/SS-CNPFT1/MSPFT1/SRPFT1
1-3.
HEA
T SINK SECTION
1-4.
CONTR
OL/A
C BO
ARD
1
CNP701 (3P)
2
CNP711 (5P)
3
three
screws
(+BVTT 4
×
8)
4
heat sink section
1
CNP103 (8P)
2
CNP902 (3P)
5
CONTROL/AC board
3
CNP904 (3P)
4
three
screws
(+BVTP 3
×
8)
All manuals and user guides at all-guides.com
all-guides.com
5
7
Table of Contents
Table of Contents
3
Disassembly
4
Back Panel Section
5
AMP Section
5
Heat Sink Section
6
Control/Ac Board
6
Main Board
7
Diagrams
8
Block Diagram
9
Printed Wiring Boards -Main Section
10
Printed Wiring Boards -Control Section
11
Schematic Diagram -Main Section
12
Exploded Views
13
Subwoofer Front Section (SA-WPFT1)
13
Subwoofer AMP Section (SA-WPFT1)
14
Center Speaker Section (SS-CNPFT1)
15
Front/Surround Speaker Section (SS-MSPFT1/SRPFT1)
16
Electrical Parts List
17
