Sony SA-WRT3 - Chassis Section; BLUETOOTH Module

UFOELK - 2/21/2018 5:23 PM
HT-RT3
11

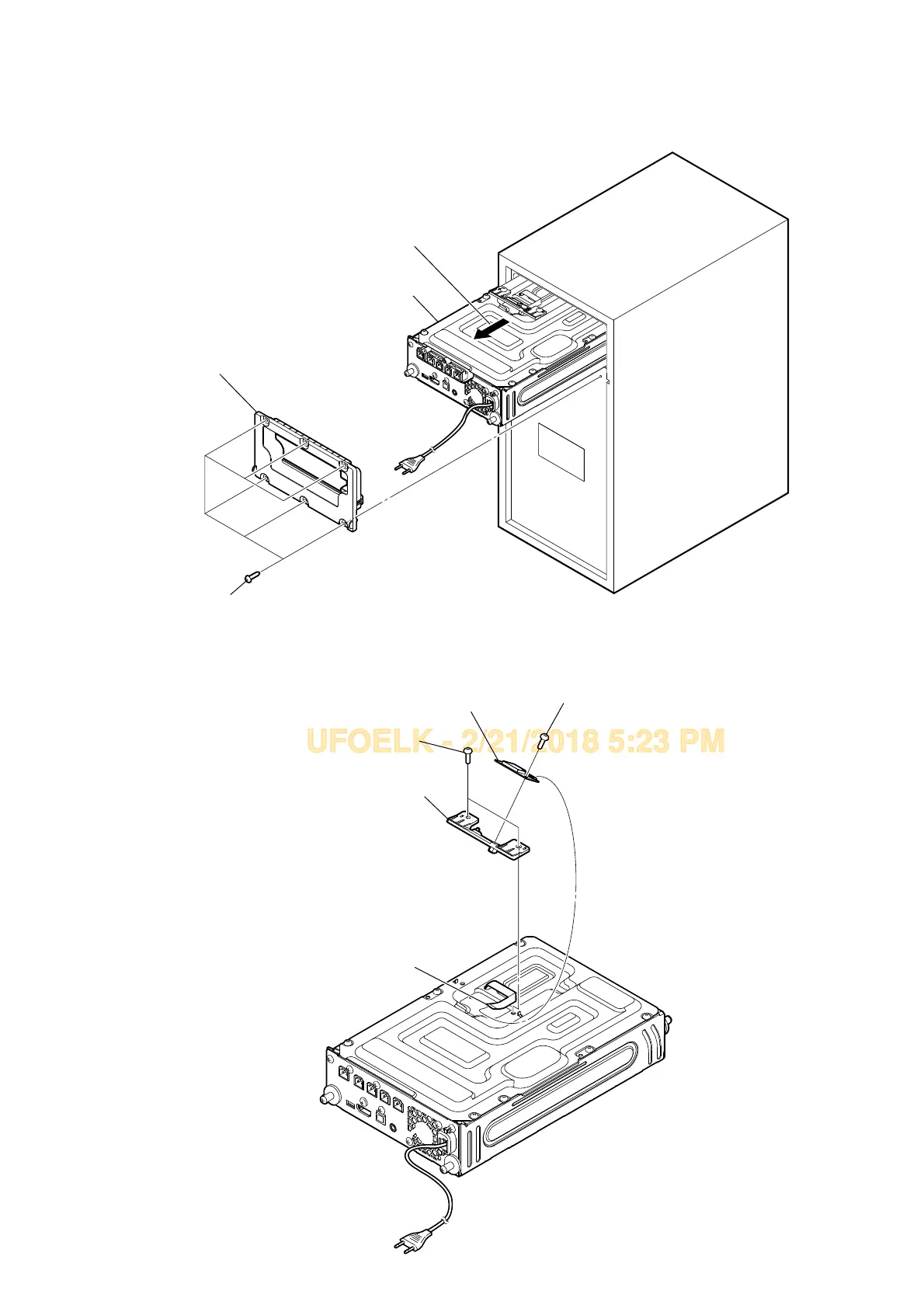

2-4. CHASSIS SECTION
2-5. BLUETOOTH MODULE
1 six screws (+BV TAPPING SCREW TYPE-1 3.5)
2 panel, rear (EL-SW)
3 Draw out chassis section in
the arrow direction.
4 chassis section
– Rear view –
5 holder, BT
2 one screw (+BVTP 3 x 8)
3 BLUETOOTH module
4 two screws (+BVTP 3 x 8)
1 wire (flat type) (18 core)
– Rear view –
