Sony SA-WRT3 - Speaker Board and Main Board Assembly Removal; Speaker CHUKEI PC Board Removal

HT-RT3
12

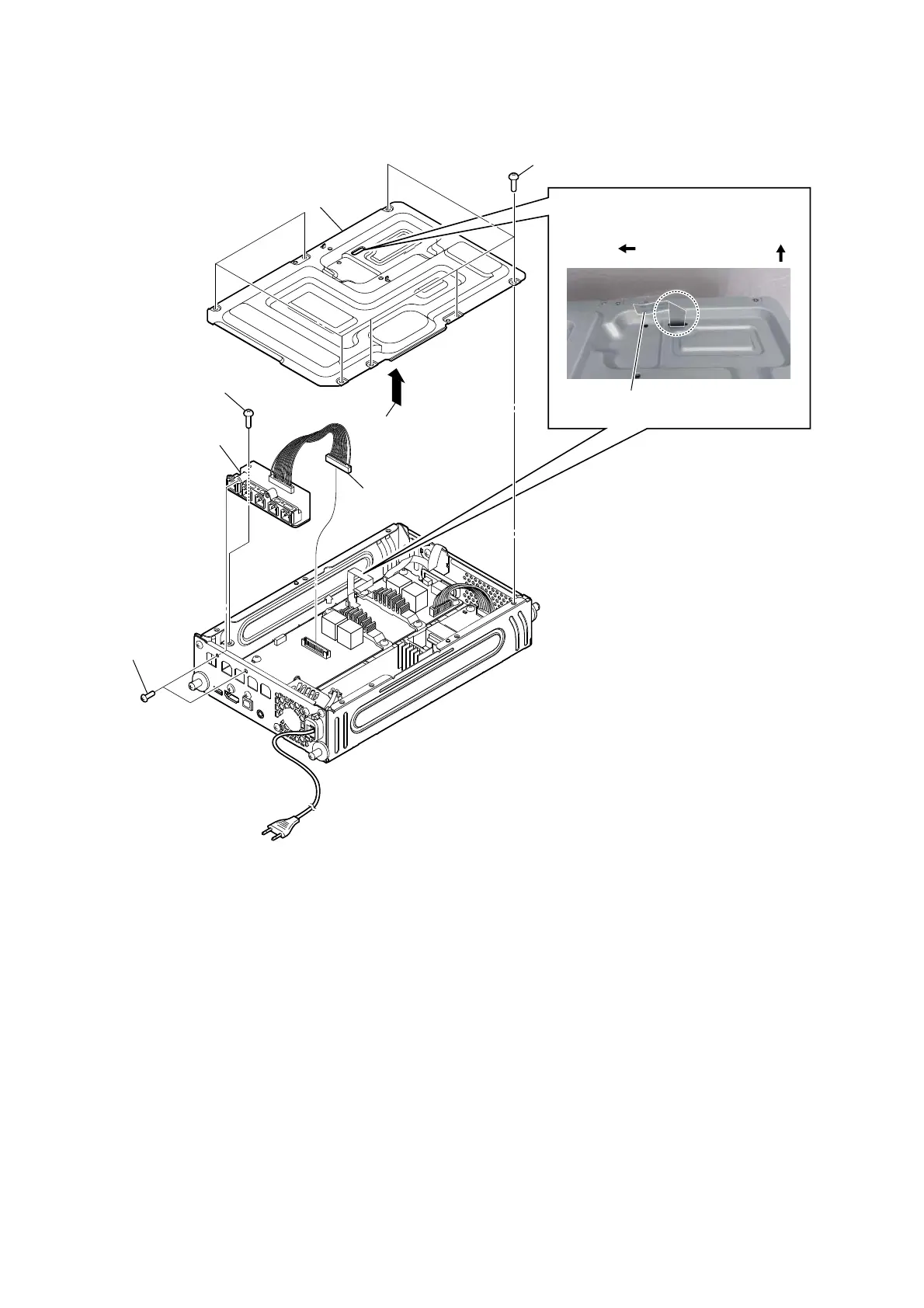

2-6. SPEAKER CHUKEI PC BOAR BOARD
2 Remove chassis,
top (EL-SW) in the
direction of arrow.
4 chassis, top (EL-SW)
6 two screws
(+BV3 (3-CR))
7 one screw (+BVTP 3 x 8)
5 CN1002 (12P)
1 seven screws (+BVTP 3 x 8)
8 SPEAKER CHUKEI PC
BOAR board
:LUHVHWWLQJ
3 Draw out wire (flat type) (18 core) from
chassis, top (EL-SW).
–5HDUYLHZ–
rear side
wire (flat type) (18 core)
top side
