Sony SA-WRT3 - Disassembly Procedures; Disassembly Flow and Jigs

HT-RT3
8
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

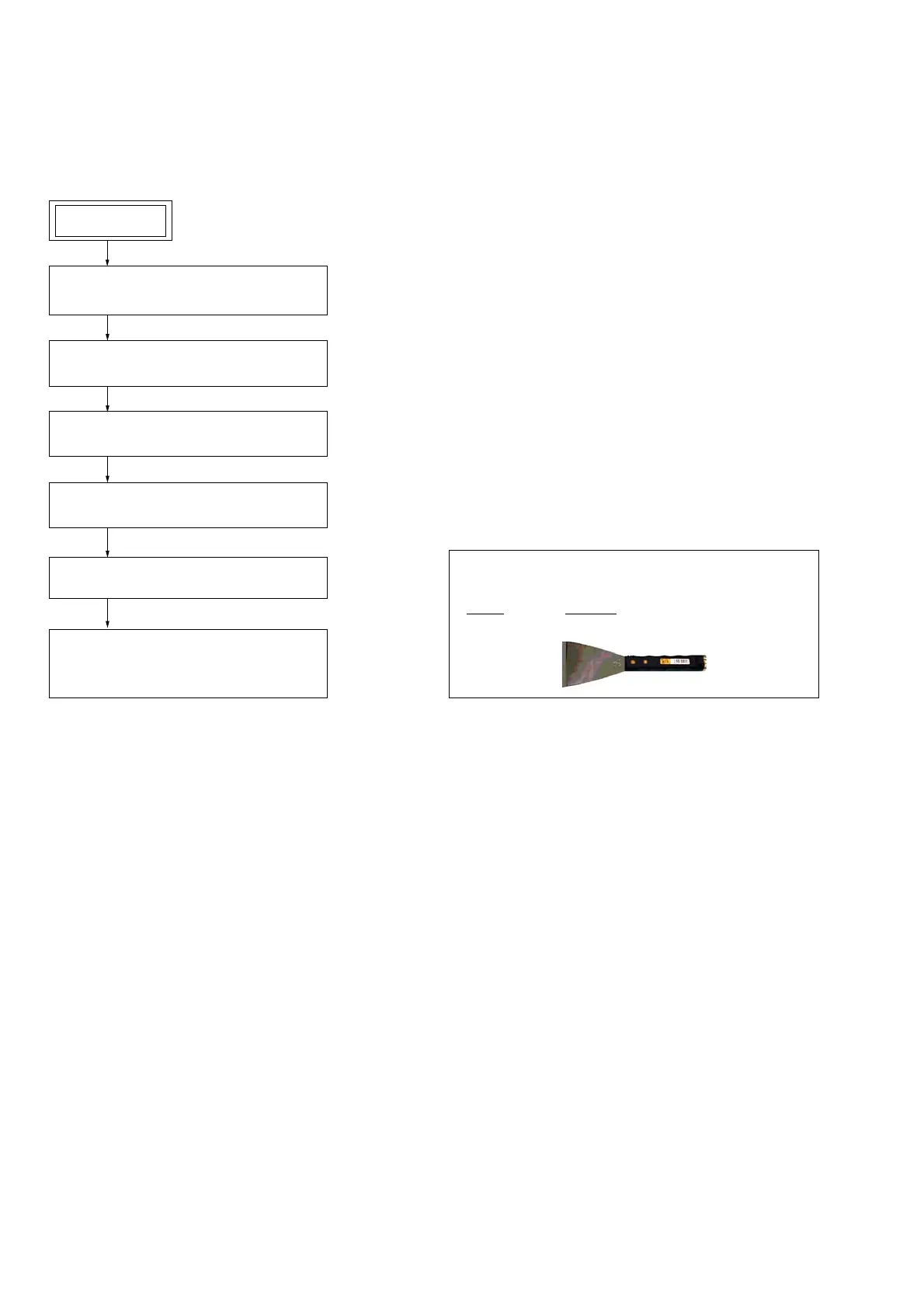

2-1. DISASSEMBLY FLOW
• JIG
When disassembling the unit, use the following jig (for speaker
removal).
Part No. Description
J-2501-238-A JIG FOR SPEAKER REMOVAL
2-3. LOUDSPEAKER 16CM
(Page 10)
2-4. CHASSIS SECTION
(Page 11)
2-5. BLUETOOTH MODULE
(Page 11)
2-2. FRONT PANEL SECTION
(Page 9)
2-6. SPEAKER CHUKEI PC BOAR BOARD
(Page 12)
2-7. MAIN BOARD,
CONNECTOR BOARD,
SWITCHING REGULATOR
(Page 13)
SET
