Sony SA-WRT3 - MAIN Board Section

32
HT-RT3

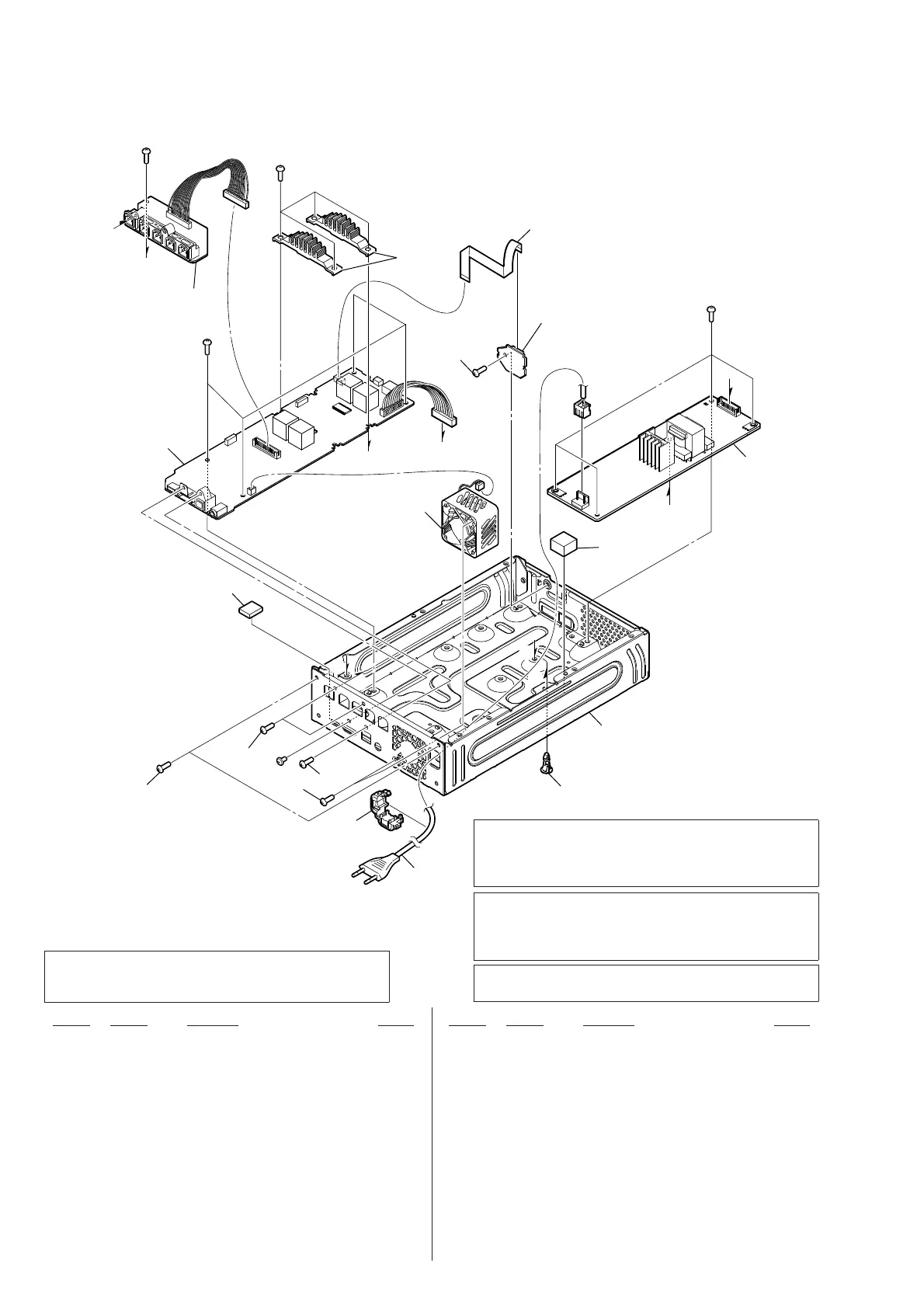

6-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-41 +BV3 (3-CR)
0 102 1-855-244-11 DC FAN
9 103 A-2107-088-A MAIN BOARD, COMPLETE (for SERVICE)
(US, CND)
9 103 A-2107-150-A MAIN BOARD, COMPLETE (for SERVICE) (AEP)
9 103 A-2107-159-A MAIN BOARD, COMPLETE (for SERVICE) (UK)
9 103 A-2107-210-A MAIN BOARD, COMPLETE (for SERVICE) (E12)
9 103 A-2107-762-A MAIN BOARD, COMPLETE (for SERVICE) (AUS)
9 103 A-2107-776-A MAIN BOARD, COMPLETE (for SERVICE) (SP)
9 103 A-2107-842-A MAIN BOARD, COMPLETE (for SERVICE) (LA9)
9 103 A-2107-983-A MAIN BOARD, COMPLETE (for SERVICE) (AR)
9 103 A-2119-853-A MAIN BOARD, COMPLETE (for SERVICE) (EA)
104 1-828-228-51 WIRE (FLAT TYPE) (20 CORE)
0 105 4-966-267-12 BUSHING (FBS001), CORD
0 106 1-834-966-42 POWER-SUPPLY CORD (AEP, SP, LA9)
0 106 1-835-068-21 CORD, POWER (AUS)
0 106 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 106 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 106 1-839-999-22 POWER-SUPPLY CORD (UK, EA)
0 106 1-848-053-12 POWER-SUPPLY CORD (E12)
0 107 1-474-638-11 REGULATOR, SWITCHING 3L405W-2
(EXCEPT E12)
0 107 1-474-638-21 REGULATOR, SWITCHING 3L405W-3 (E12)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-546-09 SCREW +B 3X5
ns not supplied
Note 3: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Note 1: When the complete MAIN board is replaced, re-
fer to “NOTE OF REPLACING THE IC1000 AND
IC1002 ON THE MAIN BOARD AND THE COM-
PLETE MAIN BOARD” on page 5.
Note 2: When the REGULATOR, SWITCHING 3L405W
board is replaced, spread the bond referring to
“BOND FIXATION OF ELECTRIC PARTS” on
page 6.
Note 4: When the complete MAIN board is replaced,
spread the bond referring to“BOND FIXATION OF
ELECTRIC PARTS” on page 6.
A
B
C
C
D
D
B
E
E
A
#1
#1
#1
#3
#1
103
ns
102
105
104
101
101
101
101
101
107
106
ns
SPEAKER CHUKEI PC
BOAR board (ns)
ns
ns
ns
CONNECTOR board (ns)
Ver. 1.1
