SCD-XE800
SECTION 5
EXPLODED VIEWS
Note:
-XX and -X mean standardized parts, so
they may have some difference from the
original one.
Items marked
are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
The mechanical parts with no reference
number in the exploded views are not sup-
plied.
Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)

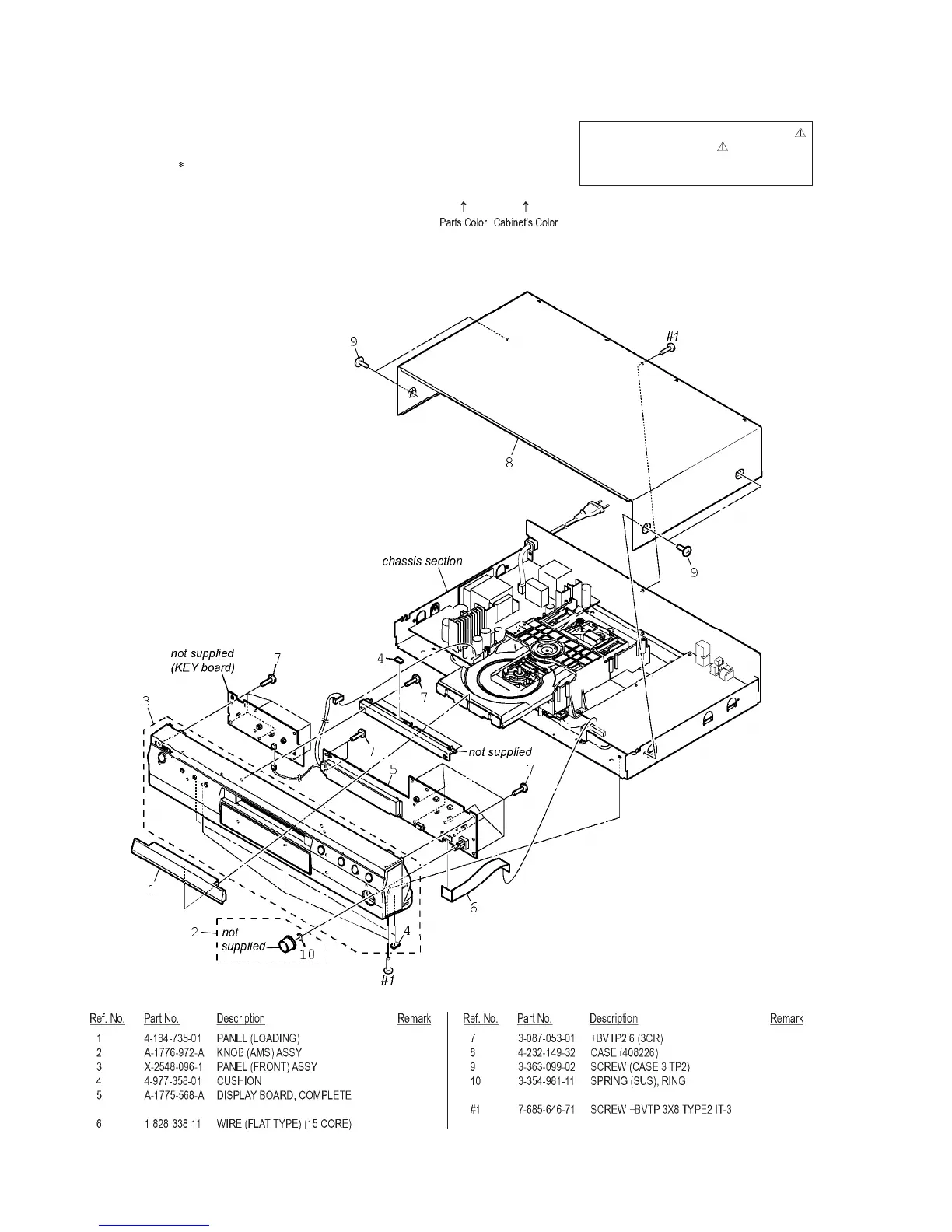

5-1. CASE, FRONT PANEL SECTION
The components identiÞ ed by mark
or dotted line with mark
are critical for
safety.
Replace only with part number speciÞ ed.
36
