SCD-XE800
5
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

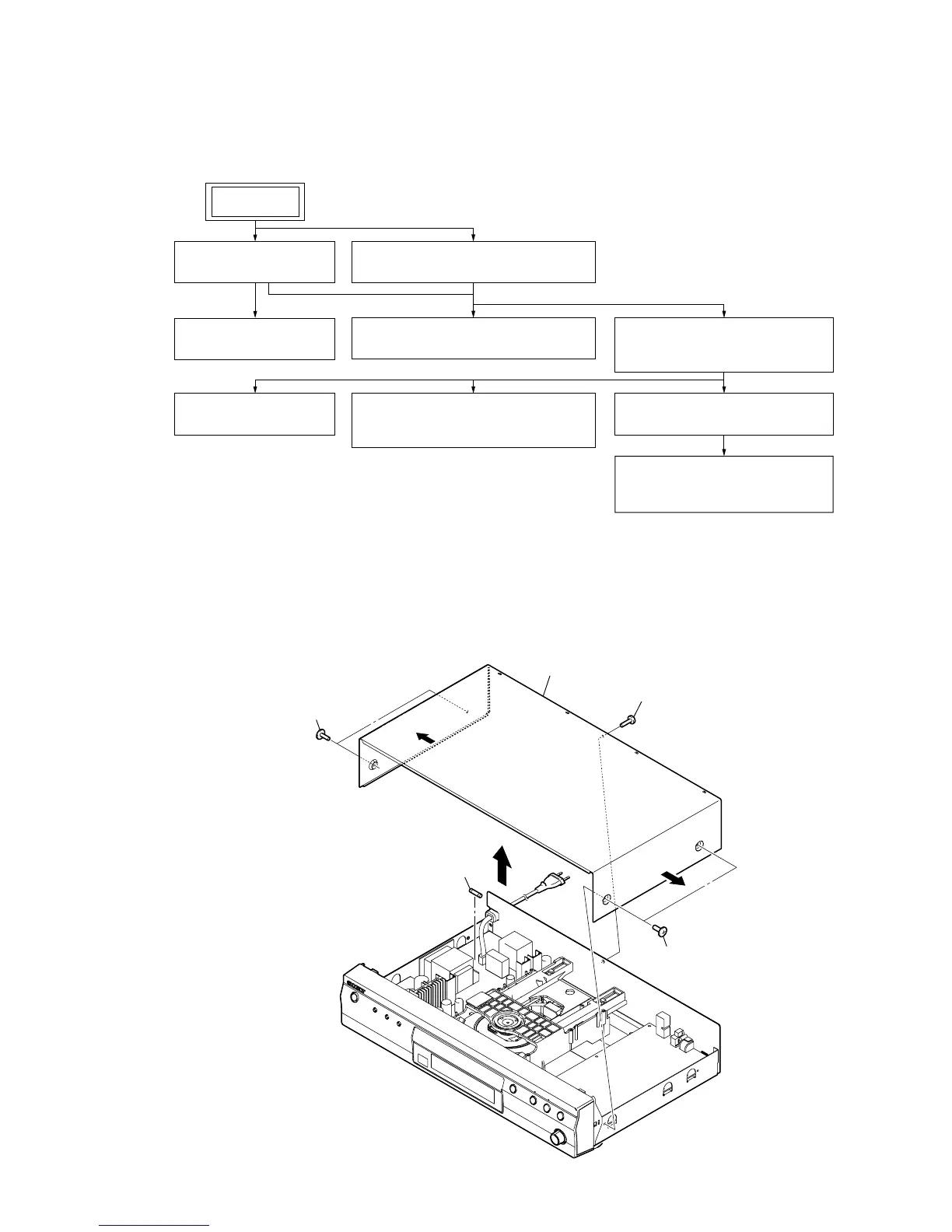

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE, FUSE (F001)
SET
2-3. POWER BOARD
(Page 6)
2-10. OPTICAL PICK-UP BLOCK
(KHM-313CAB)
(Page 9)
2-7. MAIN BOARD
(Page 8)
2-9. BASE UNIT
(Page 9)
2-5. FRONT PANEL BLOCK
(Page 7)
2-6. CD MECHANISM DECK BLOCK
(CDM66F1-DVBU101)
(Page 7)
2-8. BELT (LD), MOTOR BOARD,
MOTOR (L) ASSY (LOADING) (M001)
(Page 8)
2-4. PANEL (LOADING)
(Page 6)
2-2. CASE, FUSE (F001)
(Page 5)
5 case
6 fuse (F001)
3
3
4
1 two screws
(case 3 TP2)
1 two screws
(case 3 TP2)
2
screw
(BVTP3
!
8)
