5-1
SDM-N50
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

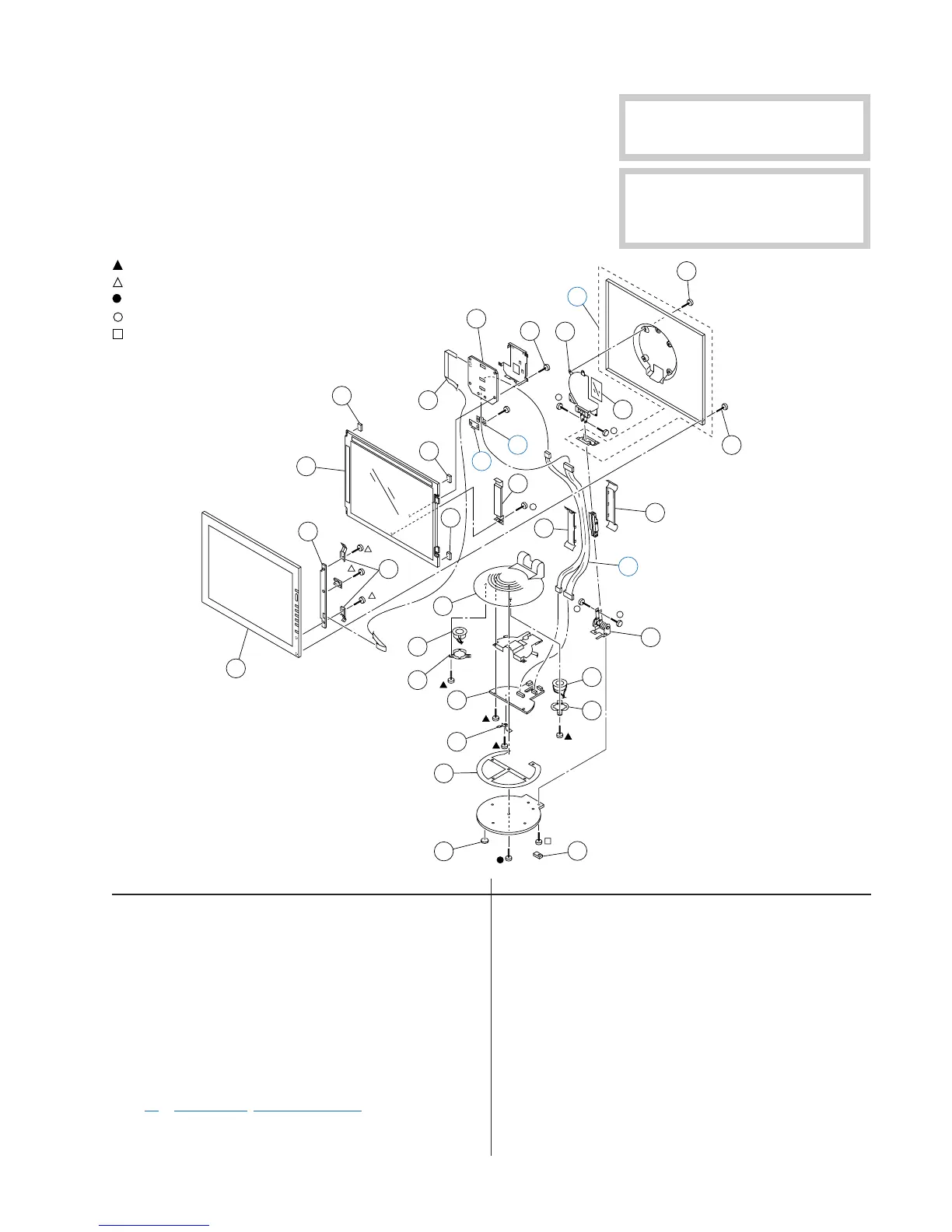

5-1. DISPLAY
7-685-646-79 +BVTP 3X8
7-685-645-79 +BVTP 3X6
7-685-249-19 +KTP 3X14
7-682-546-04 +P 3X5
7-682-660-09 +PS 4X6
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
SECTION 5
EXPLODED VIEWS
The components identified by mark
¡
are critical for safety.
Replace only with part number specified.
Les composants identifiés par une
marque
¡
sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
NOTE:
10
11
21
1
12
22
25
2
13
23
3
24
4
15
27
5
5
28
29
5
16
6
17
7
18
8
26
19
9
20
21
20
1 X-4037-530-1 COVER ASSY, FRONT
2 * A-1375-200-A H BOARD, COMPLETE
3 4-074-707-01 EARTH (H)
4 1-803-900-11 LCD MODULE (TFT)
5 4-074-712-01 HOLDER, PANEL
6 1-900-251-29 HARENESS ASSY, BH1
7 * A-1136-059-A B BOARD, COMPLETE
8 4-639-967-01 SCREW, 0 PLATE SPECIAL HEAD
#4 9 X-4037-913-1 COVER ASSY, REAR
10 4-075-607-01 TAPPING SCREW 3X8
11 2-625-102-31 BOLT, HEXAGON M3
12 4-074-711-01 PLATE, INSULATION
13 4-073-824-01 HINGE, PANEL
#4 14 4-073-809-01 COVER (S), HINGE
15 4-073-816-01 COVER (F), HINGE
16 4-073-808-01 COVER (R), HINGE
17 4-074-713-01 LEG, RUBBER
18 4-073-823-01 COVER, BASE
19 4-073-825-01 HINGE, BASE
20 1-529-586-11 SPEAKER (2.7CM) (HARMAN)
#1 20 1-529-789-11 SPEAKER (3.0CM) (FOSTER)
21 4-073-810-01 HOLDER, SP (2.7CM)
#1 21 4-077-559-01 HOLDER, SP (3.0CM)
22 4-074-714-01 RUBBER, ENCLOSURE
23 * A-1394-966-A U BOARD, COMPLETE
24 4-074-708-01 EARTH (U)
25 4-075-703-01 FOOT (B), RUBBER
26 4-076-246-01 COVER, CABLE
#6 27 1-900-253-80 HARNESS ASSY, UB
#6 28 4-075-633-01 HOLDER, CABLE (A)
#6 29 4-075-634-01 HOLDER, CABLE (B)
To Next Page
