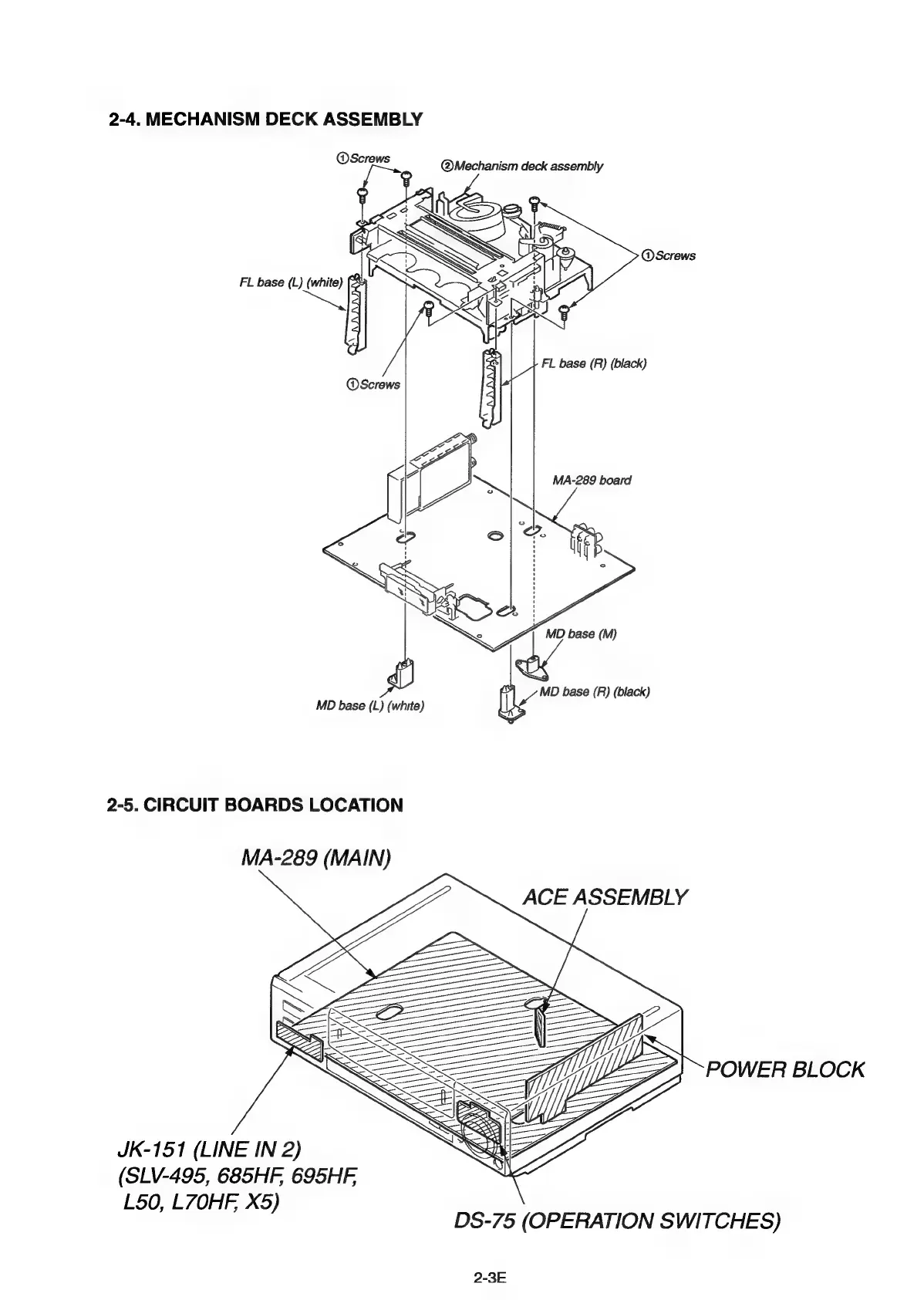

2-4. MECHANISM DECK ASSEMBLY
@Screws
@Mechanism
deck
assembly
FL base (L) (white)
FL base (R) (black)
MA-289 board
Pa MD base (R) (black)
MD base (L) (white)
| MD base (M)
2-5. CIRCUIT BOARDS LOCATION
MA-289 (MAIN)
ACE ASSEMBLY
JK-151 (LINE IN 2)
(SLV-495, 685HF, 695HE
L50, L7OHF, X5
) DS-75 (OPERATION SWITCHES)
2-3E
