SLV-495/495P X/675HF/675HFPX/676HF/685HF/695HF/L40CS/L40MX/L40PA/L50CS/L50MX/
L50PA/L60HFCS/L60HFMX/L60HFPA/L70HFCS/L70HFMX/L70HFPA/X5MX/X6HFMX

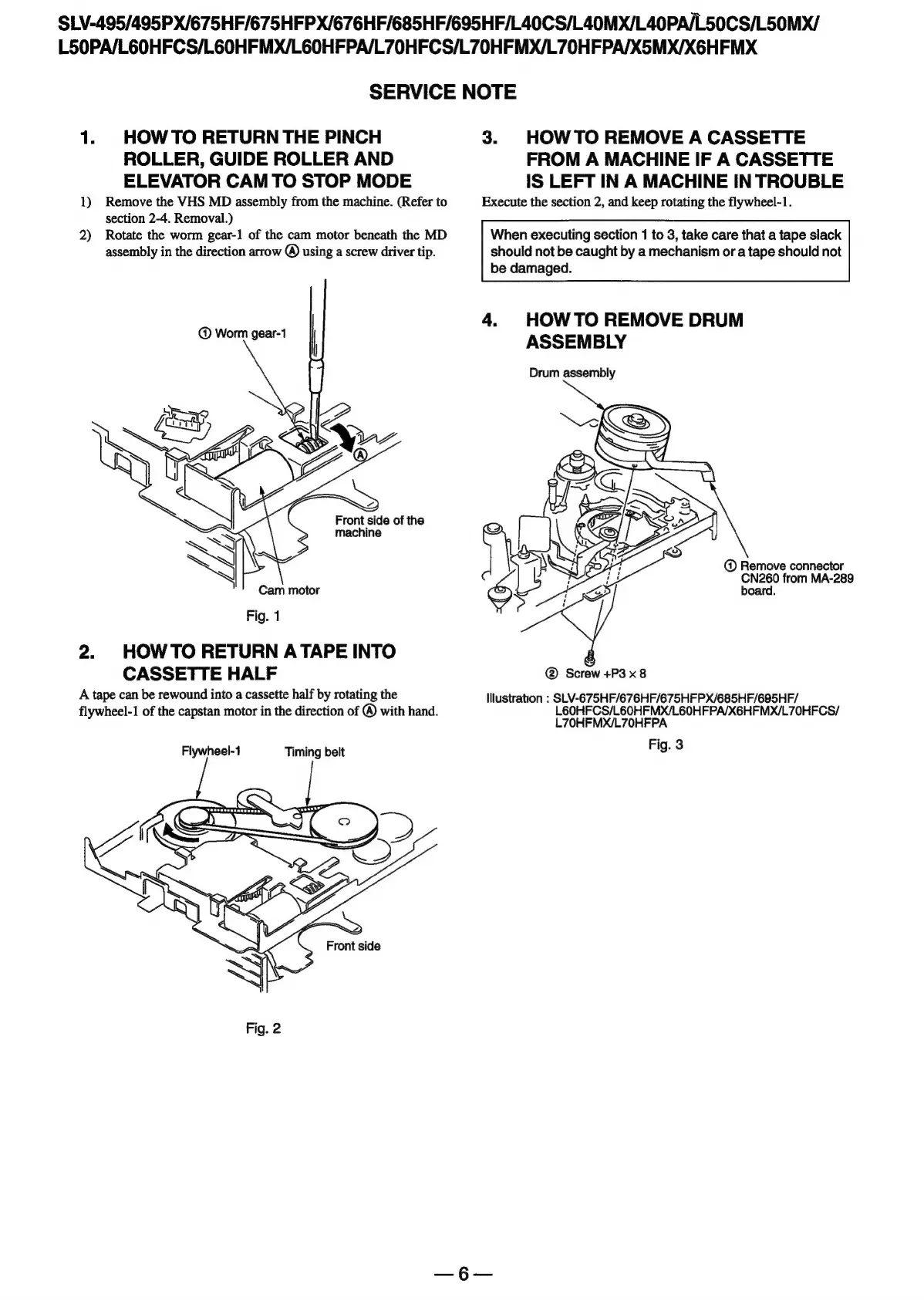

SERVICE NOTE
1. HOWTO RETURN THE PINCH 3. HOWTO REMOVE A CASSETTE
ROLLER, GUIDE ROLLER AND FROM A MACHINE IF A CASSETTE
ELEVATOR CAM TO STOP MODE iS LEFT IN A MACHINE IN TROUBLE
1) Remove the VHS MD assembly from the machine. (Refer to Execute the section 2, and keep rotating the flywheel-1.
section 2-4. Removal.)
2) Rotate the worm gear-1 of the cam motor beneath the MD When executing section 1 to 3, take care that a tape slack
assembly in the direction arrow ® using a screw driver tip. should not be caught by a mechanism or a tape should not
be damaged.
4. HOWTO REMOVE DRUM
ASSEMBLY
Drum assembly
@ Worm gear-1
j
A.
Front side of the
machine
@ Remove connector
CN260 from MA-289
Cam motor board.
Fig. 1
2. HOWTO RETURN ATAPE INTO
CASSETTE
HALF
®
Screw
+P3
x
8
A tape can be rewound into a cassette half by rotating the Illustration : SLV-675HF/676HF/675HFPX/685HF/695HF/
flywheel-1 of the capstan motor in the direction of @ with hand. L60HFCS/L60HFMX/L60HFPA/X6HFMX/L70HFCS/
L70HFMX/L70HFPA
Flywheel-1 Timing belt Fig. 3
