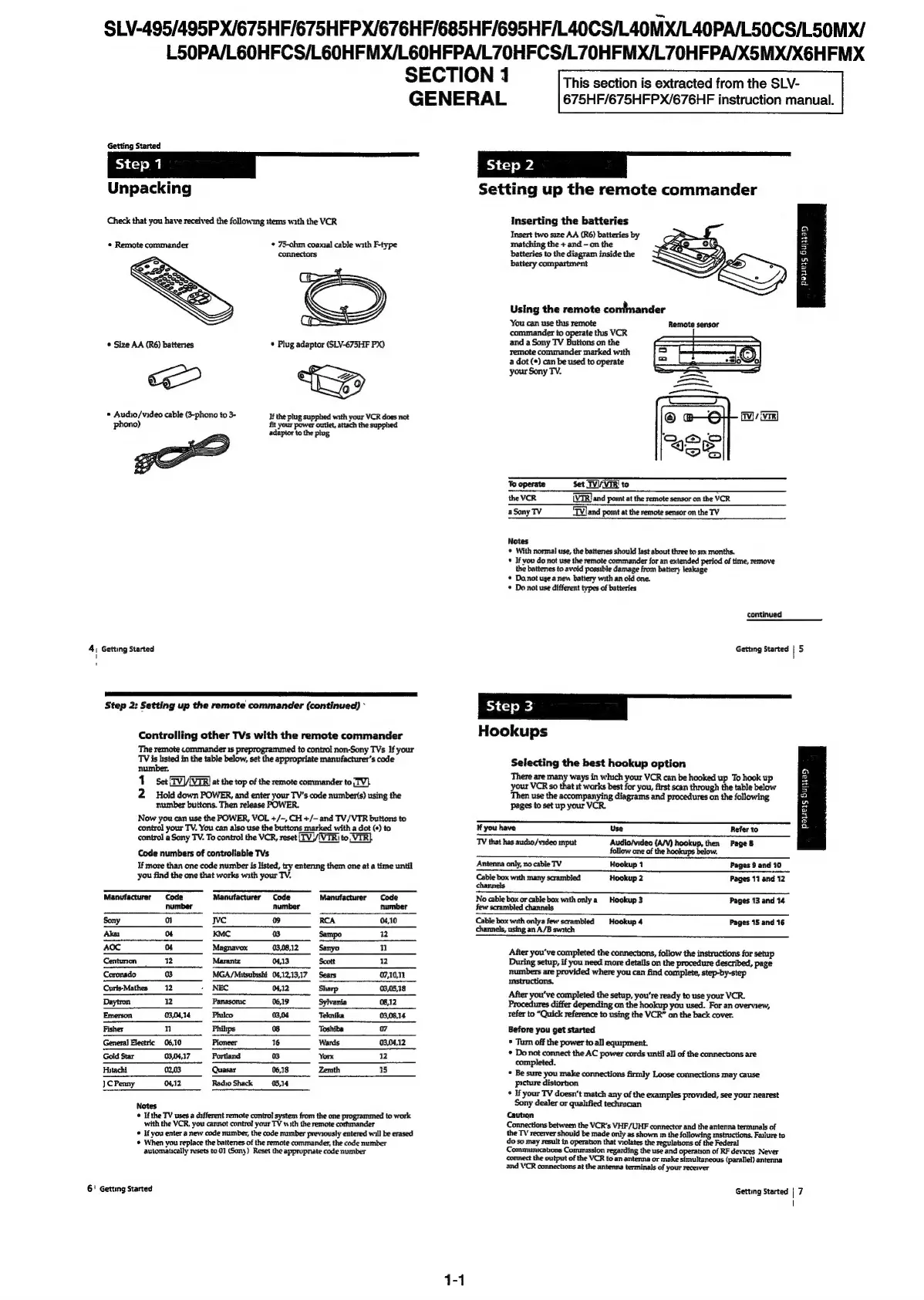

Sony SLV-495 - General; Getting Started; Setting up the Remote Commander; Hookups

SLV-495/495PX/675HF/675HFPX/676HF/685HF/695HF/L40CS/L40MX/L40PA/L50CS/L50MX/
L50PA/L60HFCS/L60HFMX/L60HFPA/L70HFCS/L70HFMX/L70HFPA/X5MX/X6HFMX
SECTION 1
GENERAL
x ___ #&8€=—=—SOF
Setting up the remote commander
Getting Started
__ = =——té‘(‘(‘(
Unpacking
Check that you have received the followmg items with the VCR
¢ 75-ohm coaxial cable with F-type
connectors
* Remote commander
© Size AA (R6) battenes ® Plug adaptor (SLV-6735HF PX)
<<
* Audio/video cable (3-phono to 3-
phono)
If the plug supphed with your VCR does not
fit your power outlet, attach the supphed
adaptor to the plug
4, Getting Started
|
Step 2: Setting up the remote commander (continued) *
Controlling other TVs with the remote commander
The remote commander 1s preprogrammed to control non-Sony TVs If your
TV is sted in the table below, set the appropriate manufacturer's code
number,
1 Set fFV)/[VTR! at the top of the remote commander to |TV}
2 Hold down POWER, and enter your TV’s code number(s) using the
number buttons. Then release POWER.
Now you can use the POWER, VOL +/~, CH +/- and TV/VTR buttons to
control your TV. You can also use the buttons marked with a dot (e) to
control a Sony TV. To control the VCR, reset [TV//[VTRi to, VIR}.
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until
you find the one that works with your TV.
Manufacturer Code Manufacturer Code
number number number
Sony a ve 09 RCA 04,10
Akai 4 kKMC 03 Sampo 12
AOC 04 Magnavox 03,0812 Sanyo n
Centurion 12 Marantz 04,13 Scott 12
Coronado 03 MGA/Mitsubishi 04,12,13,17 Sears 07,10,11
Curis-Mathes 12 + NEC 04,12 Sharp 03,05,18
Daytron 12 Panasonic 06,19 Sylvania 08,12
Emerson 03,04,14 Philo 03,04 Teknika 03,08,14
Fisher nl Philps 08 Toshiba 07
General Electric 06,10 Pioneer 16 Wards 93,04,12
Gold Star 03,04,17 Portland 03 Yorx 12
Hitachi 02,03 Quasar 06,18 Zemth 15
JC Penny 04,12 Radio Shack 05,14
Notes
© If the TV uses a different remote contro! system from the one programmed to work
with the VCR, you cannot control your TV with the remote corhmander
© If you enter a new code number, the code number previously entered will be erased
* When you replace the battenes of the remote commander, the code number
automatically resets to 01 (Sony) Reset the apprupnate code number
6! Getting Started
Manufacturer Code
This section is extracted from the SLV-
Inserting the batteries
Insert two size AA (R6) batteries by
matching the + and - on the
batteries to the diagram inside the
battery compartment
7)
D
=
ah
3
a
w
~
2
a
a
2
Using the remote comimander
You can use this remote
commander to operate this VCR
and a Sony TV Buttons on the
remote commander marked with
a dot (*) can be used to operate
your Sony TV.
Remote sensor
Set TVi/.VTR' to
[VTR} and pornt at the remote sensor on the VCR
"Tvland point at the remote sensor on the TV
To operate
the VCR
aSony TV
Notes
© With normal use, the battenes should last about three to sx months.
* If vow do not use the remote commander for an extended period of time, remove
the battenes to avoid possible damage from battery leakage
© Do.not use a new battery with an old one.
* Do not use different types of batteries
continued
Getting Started | 5
|
Hookups
Selecting the best hookup option
fa)
There are many ways in which your VCR can be hooked up To hook up a
your VCR so that it works best for you, first scan through the table below =
Then use the accompanying diagrams and procedures on the following a
pages to set up your VCR. z
a
2
if you have Use Refer to as
TV that has audio/video mput Audio/video (A/V) hookup, then Page &
follow one of the hookups below.
Antenna only, no cable TV Hookup 1 Pages 9 and 10
Cable box with scrambled Hookup 2 P. 11 and 12
many ages
No cable box or cable box with onlya Hookup 3 Pages 13 and 14
few scrambled channels
Cable box with onlya few scrambled Hookup 4 Pages 15 and 16
channels, using an A/B switch
After you've completed the connections, follow the instructions for setup
During setup, if you need more details on the procedure described, page
numbers are provided where you can find complete, step-by-step
instructions.
After you've completed the setup, you're ready to use your VCR.
Procedures differ depending on the hookup you used. For an overview,
tefer to “Quick reference to using the VCR” on the back cover.
Before you get started
* Turn off the power to all equipment.
* Donat connect the AC power cords until all of the connections are
completed.
* Be sure you make connections firmly Loose connections may cause
picture distorhon
© If your TV doesn’t match any of the examples provided, see your nearest
Sony dealer or qualified technician
Caution
Connections between the VCR's VHF/UHF connector and the antenna termmals of
the TV recerver should be made only as shown m the following mstructions. Failure to
do so may result in operation that violates the regulations of the Federal
Communications Commussion regarding the use and operation of RF devices Never
connect the output of the VCR to an antenna or make simultaneous (parallel) antenna
and VCR connections at the antenna terminals of your receiver
Getting Started | 7
|
675HF/675HFPX/676HF instruction manual.
