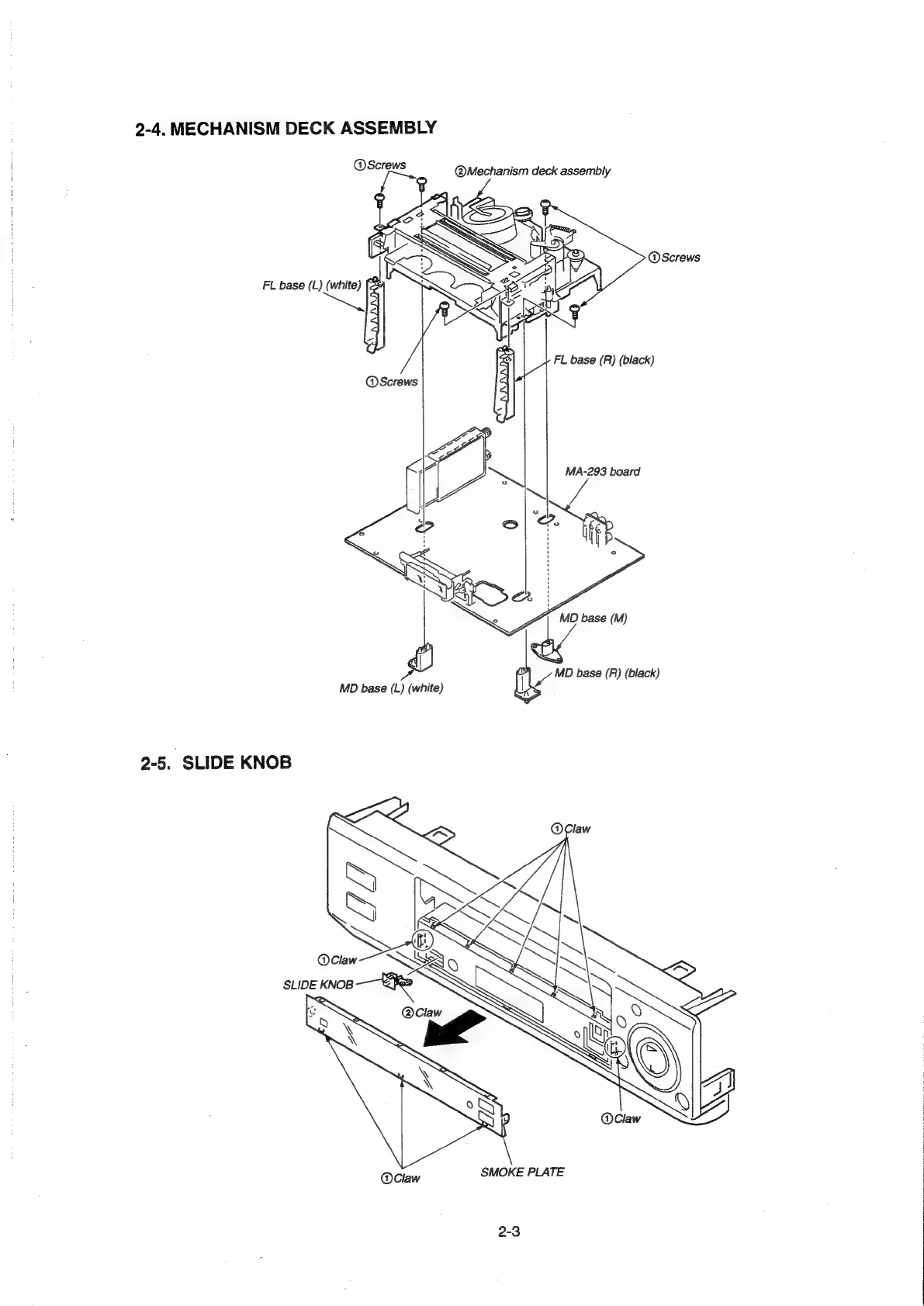

2-4.
MECHANISM
DECK
ASSEMBLY
@Screws
@Mechanism
deck
assembly
@Screws
FL
base
(L)
(white)
ped
qj
@Screws
FL
base
(R)
(black)
MA-293
board
MD
base
(M)
es
MD
base
(R)
(black)
MD
base
(L)
(white)
2-5.
SLIDE
KNOB
@Claw
SMOKE
PLATE
2-3
