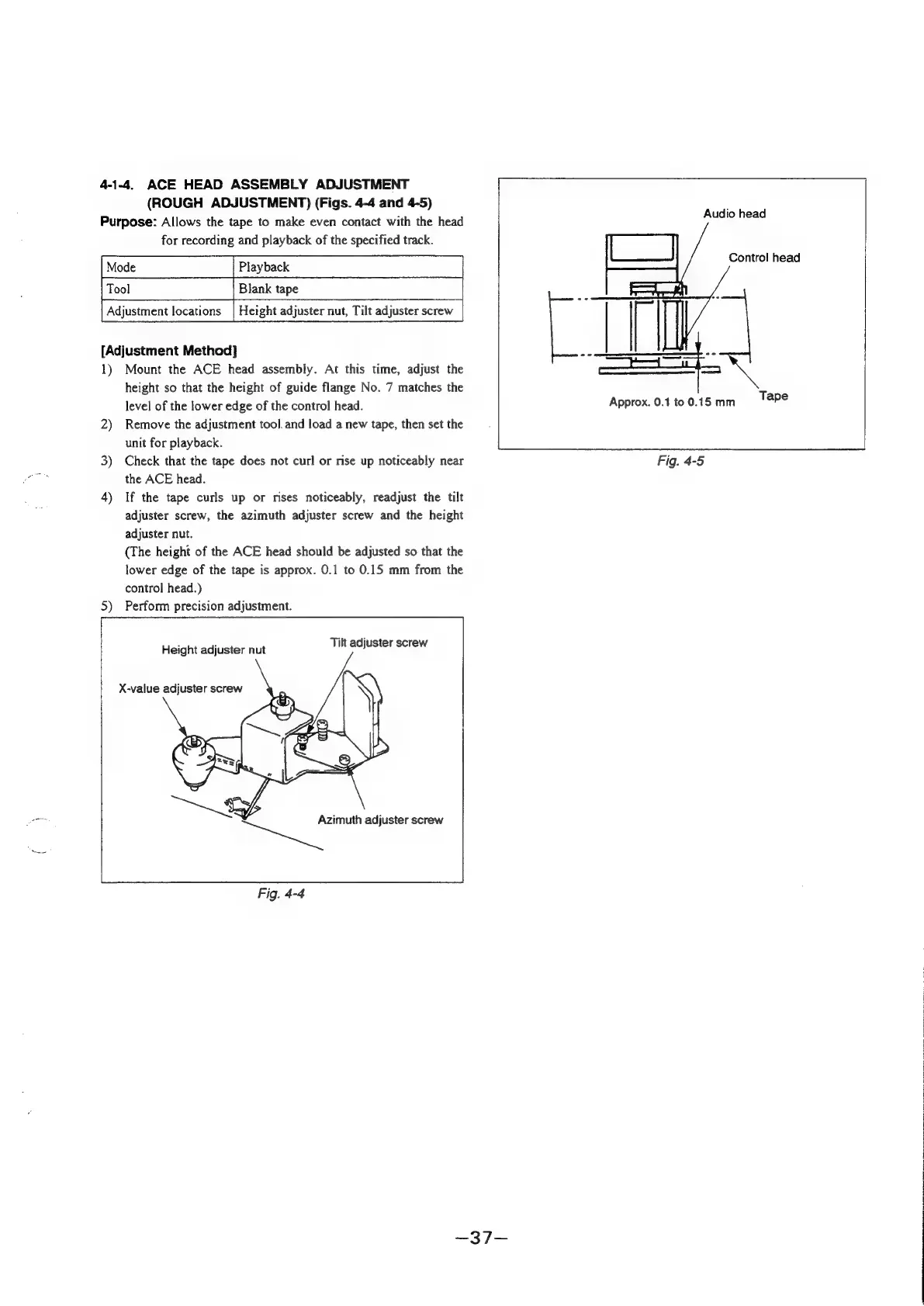

4-1-4.
ACE
HEAD
ASSEMBLY
ADJUSTMENT
(ROUGH
ADJUSTMENT)
(Figs.
4-4
and
4-5)
Purpose:
Allows
the
tape
to
make
even
contact
with
the
head
for
recording
and
playback
of
the
specified
track.
Adjustment
locations
|
Height
adjuster
nut,
Tilt
adjuster
screw
[Adjustment
Method]
1)
Mount
the
ACE
head
assembly.
At
this
time,
adjust
the
height
so
that
the
height
of
guide
flange
No.
7
matches
the
level
of
the
lower
edge
of
the
control
head.
2)
Remove
the
adjustment
tool.
and
load
a
new
tape,
then
set
the
unit
for
playback.
3)
Check
that
the
tape
does
not
curl
or
rise
up
noticeably
near
the
ACE
head.
4)
If
the
tape
curls
up
or
rises
noticeably,
readjust
the
tilt
adjuster
screw,
the
azimuth
adjuster
screw
and
the
height
adjuster
nut.
(The
height
of
the
ACE
head
should
be
adjusted
so
that
the
lower
edge
of
the
tape
is
approx.
0.1
to
0.15
mm
from
the
control
head.)
5)
Perform
precision
adjustment.
Height
adjuster
nut
Tilt
adjuster
screw
X-value
adjuster
screw
Fig.
4-4
37
Control
head
il
Approx.
0.1
to
0.15
mm
a
Fig.
4-5
Audio
head
Tape
