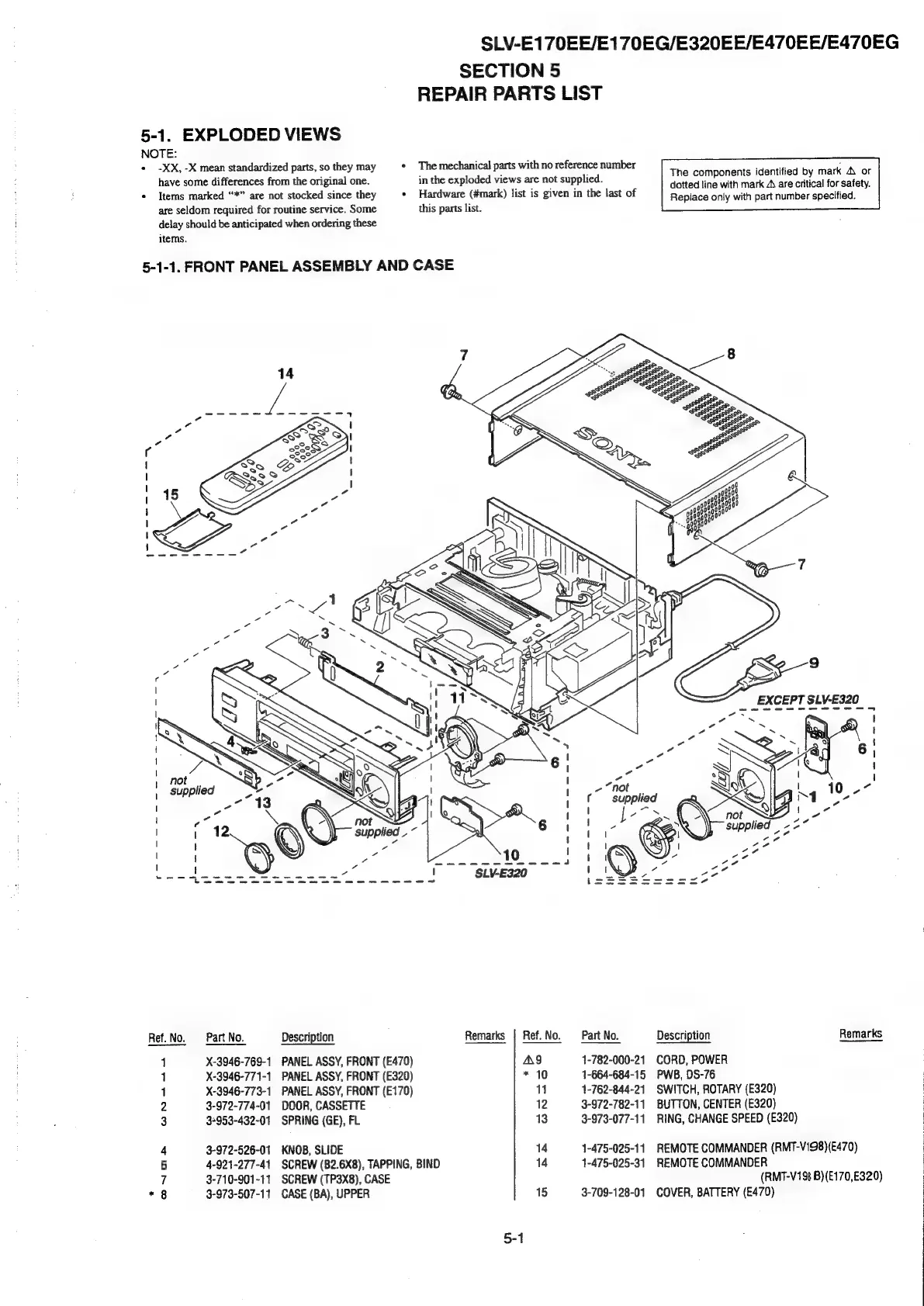

5-1. EXPLODED VIEWS
NOTE:
+ -XX, -X mean standardized parts, so they may
have some differences from the original one.
¢ Items marked “*” are not stocked since they
are seldom required for routine service. Some
SLV-E170EE/E170EG/E320EE/E470EE/E470EG
SECTION 5
REPAIR PARTS LIST
* The mechanical parts with no reference number
in the exploded views are not supplied.
* Hardware (#mark) list is given in the last of
this parts list.
The components identified by mark A. or
dotted line with mark A\ are critical for safety.
Replace only with part number specified.
delay should be anticipated when ordering these
items.
5-1-1. FRONT PANEL ASSEMBLY AND CASE
Ref.No.
Part
No.
Description
Remarks
|
Ref.No.
Part
No.
Description
Remarks
1 X-3946-769-1 PANEL ASSY, FRONT (E470) AS 1-782-000-21 CORD, POWER
1 X-3946-771-1 PANEL ASSY, FRONT (E320) * 10 1-664-684-15 PWB, DS-76
1 X-3946-773-1 PANEL ASSY, FRONT (E170) 11 1-762-844-21 SWITCH, ROTARY (E320)
2 3-972-774-01 DOOR, CASSETTE 12 3-972-782-11 BUTTON, CENTER (E320)
3
3+953-432-01
SPRING
(GE),
FL
13
3-973-077-11
RING,
CHANGE
SPEED
(E320)
4
3-972-526-01
KNOB,
SLIDE
14
1-475-025-11
REMOTE
COMMANDER
(RMT-Vi28){E470)
6 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND 14 1-475-025-31 REMOTE COMMANDER
7
3-710-901-11
SCREW
(TP3X8),
CASE
(RMT-V193
B)(E170,E320)
*
8
3-973-507-11
CASE
(BA),
UPPER
15
3-709-128-01
COVER,
BATTERY
(£470)
5-1
