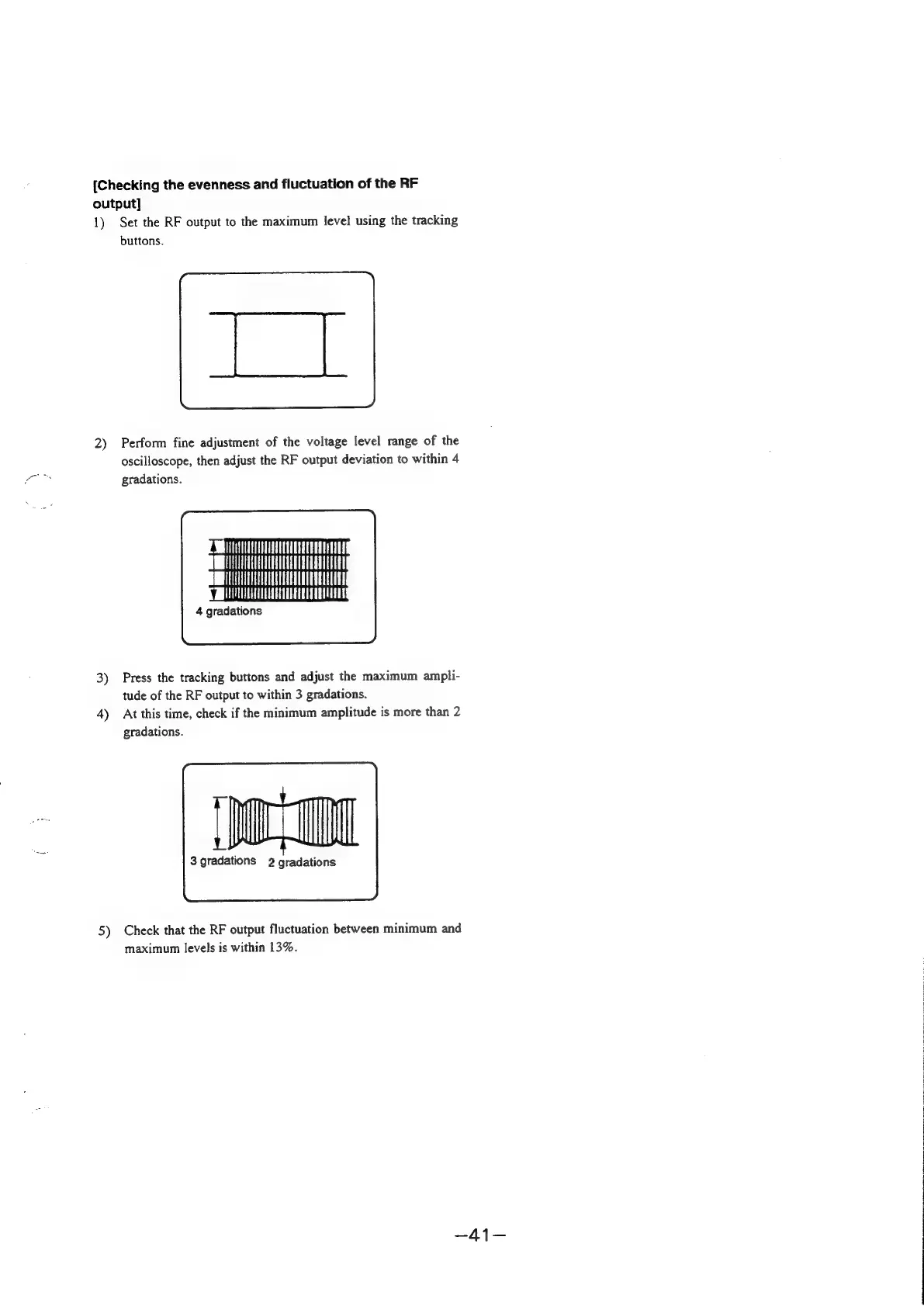

[Checking
the
evenness
and
fluctuation
of
the
RF
output]
1)
Set
the
RF
output
to
the
maximum
level
using
the
tracking
buttons.
2)
Perform
fine
adjustment
of
the
voltage
level
range
of
the
oscilloscope,
then
adjust
the
RF
output
deviation
to
within
4
gradations.
RUT
RUT
TT
SET
THY
TTT
CT
4
gradations
3)
Press
the
tracking
buttons
and
adjust
the
maximum
ampli-
tude
of
the
RF
output
to
within
3
gradations.
4)
At
this
time,
check
if
the
minimum
amplitude
is
more
than
2
gradations.
3
gradations
2
gradations
5)
Check
that
the
RF
output
fluctuation
between
minimum
and
maximum
levels
is
within
13%.
—41—
