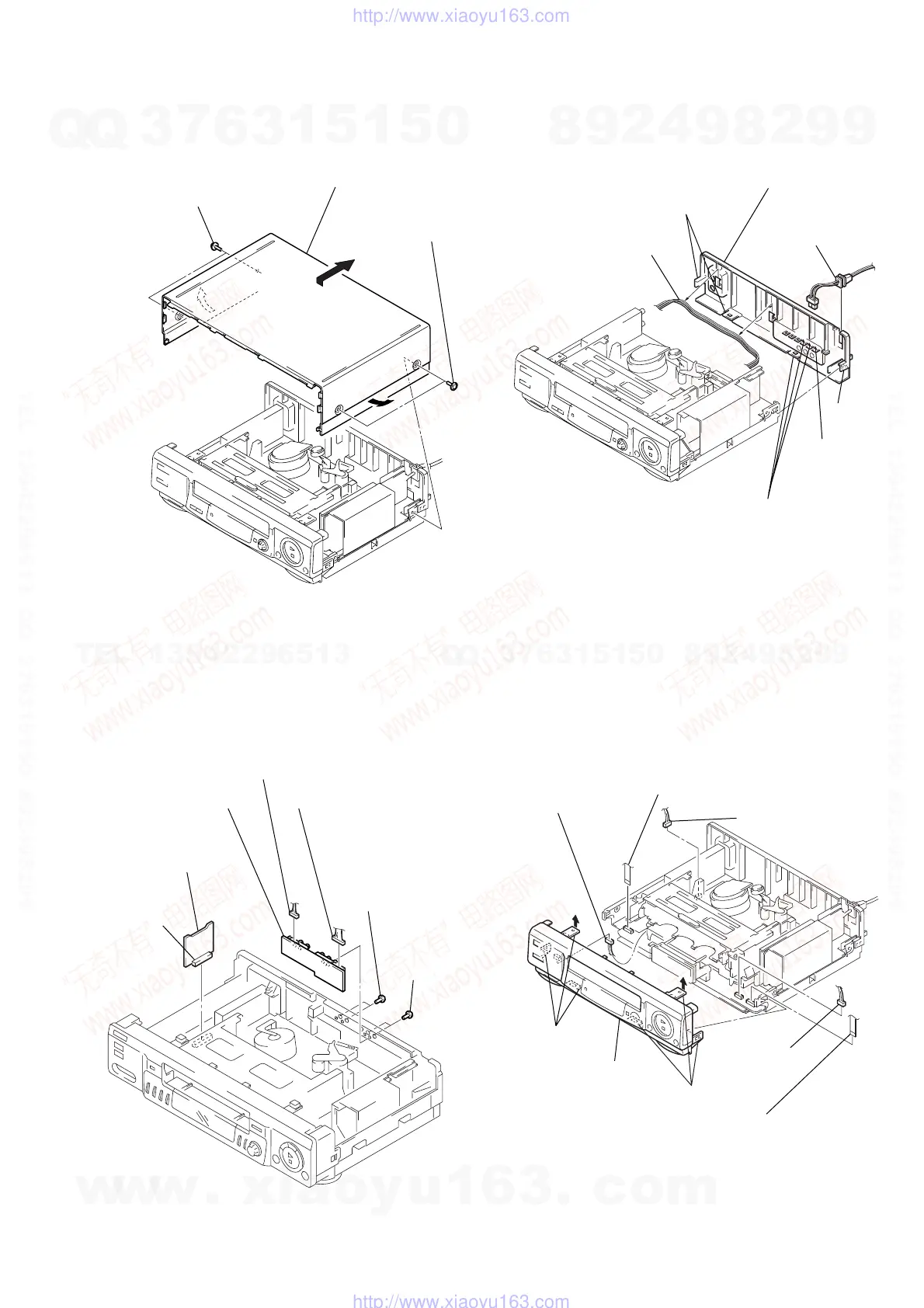

2-1
Note: Follow the disassembly procedure in the numerical order given.
2-1. UPPER CASE REMOVAL 2-3. REAR PANEL REMOVAL
2-2. GK-12, NK-11, RJ-82 BOARD REMOVAL
2-4. FRONT PANEL SECTION REMOVAL
SECTION 2
DISASSEMBLY
SLV-ED10/ED40/ED60/ED70/EZ10/EZ40/EZ60/EZ70
1 Two tapping screws
2 Two tapping screws
3 Upper case
2 NK-11 board
(ED70/EZ70NZ)
GK-12 board
(EZ70AS)
4 Connector
(CN951: ED60/ED70/EZ70AS,
CN952: ED40,
CN953: EZ60/EZ70NZ)
3 Connector
(CN954: EZ70NZ)
1 Connector
(CN751:
ED70/EZ70)
7 RJ-82 board
(EXCEPT ED10/
EZ10/EZ40)
5 Two screws
(BVTP3 × 12)
(ED60/ED70/
EZ60/EZ70)
6 Two screws
(BVTP3 × 12)
(ED40/ED60/
ED70/EZ70)
2 Harness
6 Two claws
5 Three claws
3 Claw
4 Claw
(EXCEPT
ED10/EZ10)
7 Rear panel
1 Power cord
(CN101)
4 Connector
(CN423)
5 Connector
(CN481: ED40/
ED60/ED70/EZ70)
2 Connector
(CN450)
3 Flat cable
(CN451: ED40/ED70/EZ70,
CN454: ED60/EZ40/EZ60)
1 Flat cable
(CN452: EXCEPT ED10/EZ10,
CN453: ED10/EZ10)
7 Three claws
6 Three claws
8 Front panel section
