Sony SLV-ED60PS - Video Block Diagram

SLV-ED10/ED40/ED60/ED70/EZ10/EZ40/EZ60/EZ70
3-5 3-6

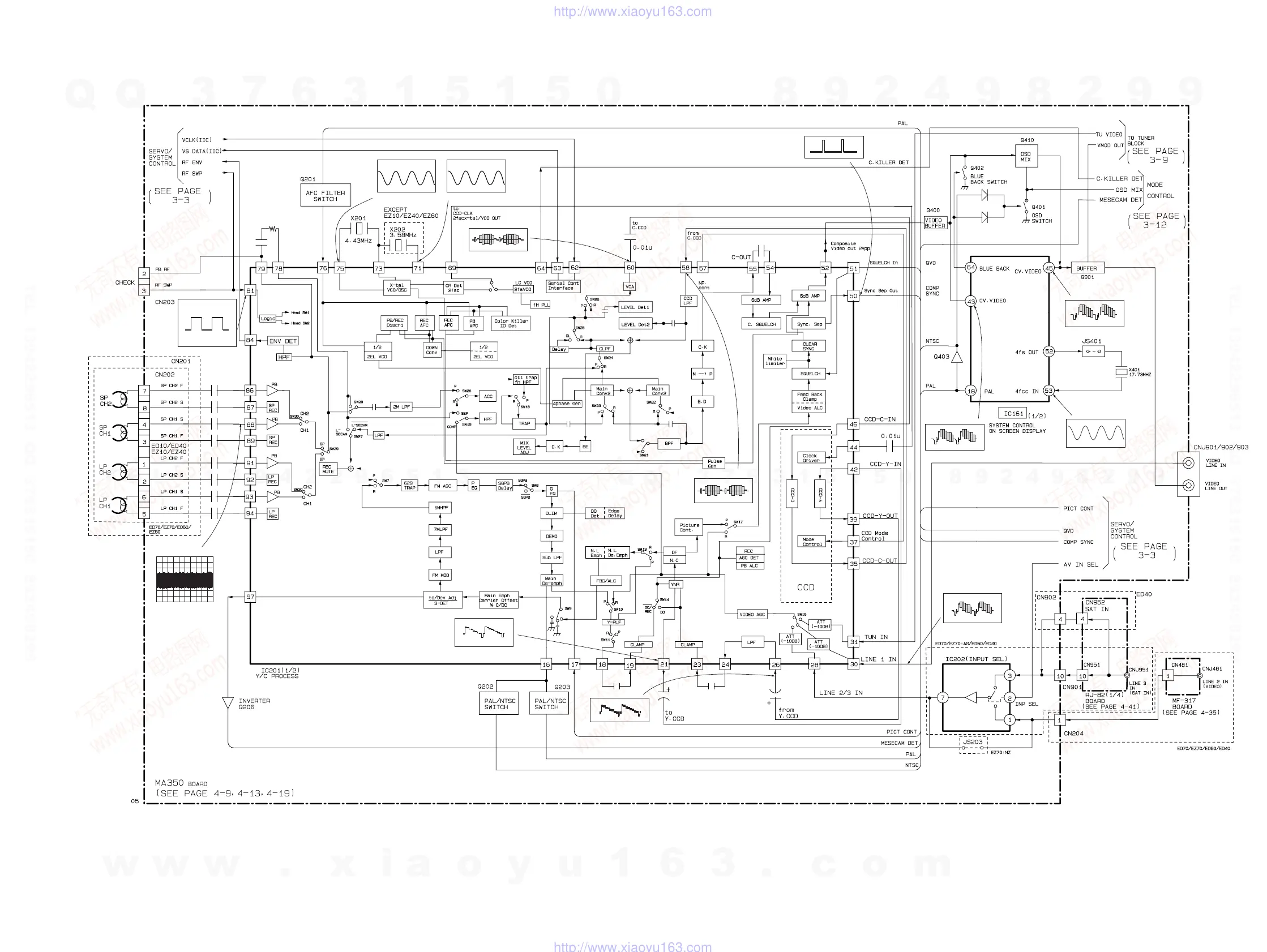

3-3. VIDEO BLOCK DIAGRAM
IC201 *• REC
1.4Vp-p(2V)
IC201 *¡ REC/PB
5.2Vp-p(2V)
IC201 &∞ REC/PB
552mVp-p(4.433619MHz)
IC201 &¡ REC/PB
120mVp-p(3.579545MHz)
IC201 ^º REC/PB
REC:352mVp-p(H)
PB:552mVp-p(H)
IC201 %º REC/PB
5.4Vp-p(H)
IC201 #º REC
1.1Vp-p(H)
IC201 @§ REC/PB
REC:528mVp-p(H)
PB:624mVp-p(H)
IC201 @¡ REC/PB
REC:360mVp-p(H)
PB:456mVp-p(H)
IC201 %• REC/PB
REC:512mVp-p(H)
PB:608mVp-p(H)
IC161 $£ REC/PB
1.8Vp-p(H)
IC161 $∞ REC/PB
1.8Vp-p(H)
IC161 %£ REC/PB
3.4Vp-p(17.734475MHz)
