8-5 8-6

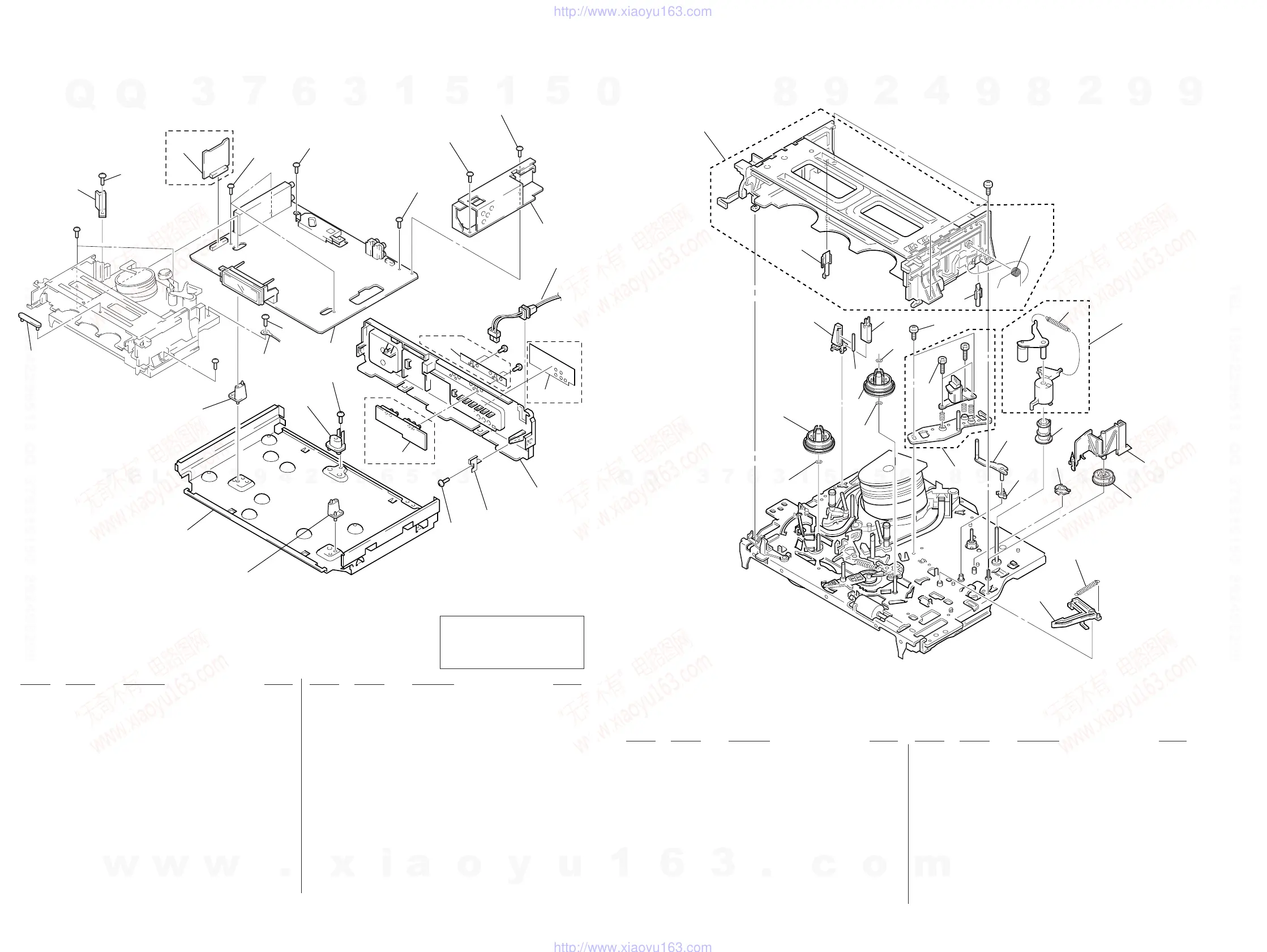

8-1-5. MECHANISM CHASSIS ASSEMBLY (1)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
* 151 3-959-383-02 BASE (R), MD
152 3-970-608-21 SUMITITE (B3), +BV
* 153 A-6791-857-A MA-350 BOARD, COMPLETE (ED60: PS)
* 153 A-6791-862-A MA-350 BOARD, COMPLETE (ED60: ME, SG)
* 153 A-6791-863-A MA-350 BOARD, COMPLETE (EZ60)
* 153 A-6791-866-A MA-350 BOARD, COMPLETE (ED40: PS)
* 153 A-6791-869-A MA-350 BOARD, COMPLETE (ED40: ME, SG)
* 153 A-6791-870-A MA-350 BOARD, COMPLETE (EZ40)
* 153 A-6791-872-A MA-350 BOARD, COMPLETE (ED70)
* 153 A-6791-875-A MA-350 BOARD, COMPLETE (EZ70: AS)
* 153 A-6791-878-A MA-350 BOARD, COMPLETE (EZ70: NZ)
* 154 A-6791-591-A NK-11 BOARD, COMPLETE (ED70/EZ70: NZ)
* 154 A-6791-880-A GK-12 BOARD, COMPLETE (EZ70: AS)
155 3-987-913-42 PLATE, REAR JACK B (ED60/ED70/EZ70: AS)
155 3-987-913-62 PLATE, REAR JACK B (EZ70: NZ)
156 1-468-311-21 POWER BLOCK (SR-708) (EZ40/EZ60/EZ70)
156 1-468-312-22 POWER BLOCK (HS-921SF1)
(ED40/ED60/ED70)
! 157 1-777-854-21 CORD, POWER (ED40/ED60/ED70)
! 157 1-777-855-22 CORD, POWER (EZ40/EZ60/EZ70)
* 158 3-977-139-51 PANEL, REAR (EXCEPT EZ40)
* 158 3-977-139-61 PANEL, REAR (EZ40)
* 159 A-6791-858-A RJ-82 BOARD, COMPLETE (ED60/ED70)
* 159 A-6791-864-A RJ-82 BOARD, COMPLETE (EZ60)
* 159 A-6791-867-A RJ-82 BOARD, COMPLETE (ED40)
* 159 A-6791-876-A RJ-82 BOARD, COMPLETE (EZ70: AS)
* 159 A-6791-879-A RJ-82 BOARD, COMPLETE (EZ70: NZ)
160 3-987-912-61 PLATE, REAR JACK A (ED60/ED70/EZ70)
160 3-987-912-31 PLATE, REAR JACK A (EZ40)
160 3-987-912-71 PLATE, REAR JACK A (EZ60)
161 3-979-112-01 SCREW SW (+) BVTP 3X10
162 X-3947-568-1 TC (N17S) ASSY
701 3-977-509-01 WASHER, THRUST
702 3-977-507-01 TABLE, REEL (S)
703 3-977-508-01 TABLE, REEL (T)
704 1-500-144-11 HEAD, FE
705 3-977-495-01 SHAFT TG2
706 3-977-494-01 HOLDER, FEH
707 A-6759-619-B FL COMPLETE ASSY
708 3-977-535-01 PLATE, LUMINOUS (END SENSOR)
709 3-977-536-01 PLATE, LUMINOUS (TOP SENSOR)
710 3-970-471-01 SPRING (DECK OPEN), TORSION
711 A-6759-615-A PRESS BLOCK ASSY, PINCH
712 3-958-455-01 SPRING (PINCH), TENSION
713 3-977-447-01 GEAR, ELEVATOR
714 3-977-514-01 OPENER, LID
715 3-977-441-01 GEAR, PINCH PRESSING
716 3-977-445-01 GEAR, TG8 ARM DRIVING
717 3-977-465-01 SPRING, EXTENSION (RVS BRAKE)
718 X-3947-582-1 ARM ASSY, RVS BRAKE
719 3-977-446-01 GEAR, TG8 ARM
720 X-3947-590-1 TG8 ASSY
721 A-6759-620-A HEAD BLOCK ASSY, ACE (TDK)
722 3-974-556-01 + HEXA TT 2.6X9 (TAPER)
723 3-979-508-01 SCREW +HEXA TP SW 3X8
725 3-977-443-01 WASHER, STOPPER
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
8-1-4. CHASSIS ASSEMBLY (ED40/ED60/ED70/EZ40/EZ60/EZ70)
not
supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
#1
ED70/EZ70
151
152
153
154
156
157
158
159
151
152
152
152
152
152
152
152
155
160
not
supplied
161
162
ED60/ED70/EZ40/
EZ60/EZ70
ED60/ED70/
EZ70
EXCEPT EZ40
707
708
710
709
712
711
706
704
723
725
705
703
701
702
701
722
721
720
719
713
716
714
715
717
718
#3
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
